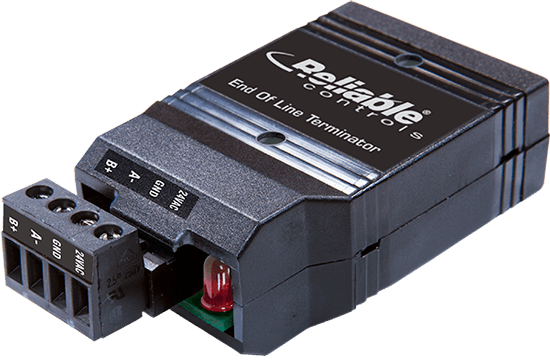

End of Line Terminator

The Reliable Controls Network Accessory End Of Line (NA-EOL) terminator optimizes communication between Reliable Controls devices and devices from other manufacturers that are connected on a common EIA-485 network, using BACnet® or Modbus protocol.

Purchase Products

Product features

Biased Terminator
  • Thevenin equivalent impedance of 108 Ω

Functional Design
  • Robust plastic case
  • Mounting screws included
Power
  • Flexible input power 10 VDC to 24 VAC
  • Over-voltage and transient protection
  • Power status LED, illuminated solid indicates that the NA-EOL is powered

Warranty
  • 5 years

Technical specifications

Supply Voltage
  • 10VDC @ 10mA to
    24 VAC @ 0.24 VA

Dimensions
  • 7.9 cm L x 4.3 cm W x 2.3 cm H
    (3 1/8" L x 1 11/16" W x 15/16" H)
Mounting
  • 2 x #8 screws 3 cm (1 3/16")

Weight
  • 35.0 g (1.2 oz.)

Ambient Limits
  • Operating: -20 ºC to 55 ºC
    (-4 ºF to 131 ºF)
  • Shipping: -20 ºC to 60 ºC
    (-4 ºF to 140 ºF)
  • Humidity: 10% to 90%
  • RH non-condensing

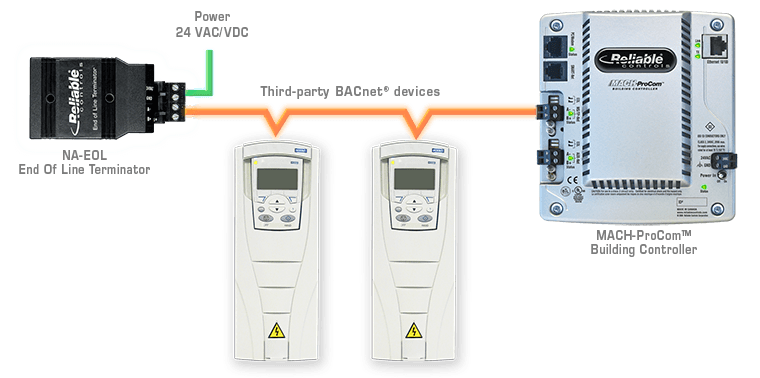

Diagrams
