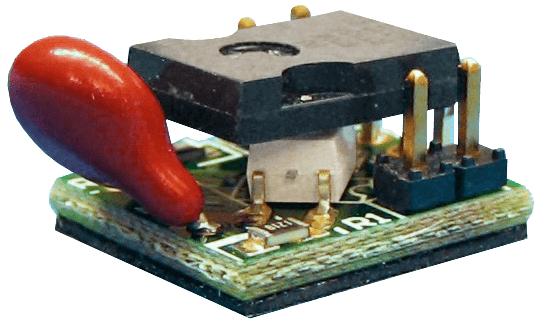

TRIAC Output Module

The TRIAC Output Module (TM) is a single normally open contact for 24 VAC loads only, 0.5 A. Ideal for switching 24 VAC control circuit loads found in packaged HVAC systems, and 24 VAC two-position or floating point actuators. Sold in packages of 10.

Locate a Dealer

Features

Mounting
  • Press in place, no tools required

TRIAC Output Module (TM)
  • Single normally open contact for 24 VAC loads only, 20-500 mA
  • Optically isolated TRIAC driver provides excellent isolation and noise immunity
  • No moving parts for maximum life
  • Low heat dissipation
  • Ideal for switching 24 VAC control circuit loads found in packaged HVAC systems, and 24 VAC two-position or floating point actuators

Tech Specs

TRIAC Output Module (TM)
  • Single normally open contact for switching AC loads
  • Contact rating: 0.5 A @ 24 volts AC
  • Minimum switching current is 20 mA

Application Diagram
