SMART-Sensor EPD
Programmable Sensor

A complement to any room, the Reliable Controls SMART-Sensor (SS3-E) Electronic Paper Display (EPD) delivers a modern, networked sensor solution that allows you to connect with up to ten configurable parameters related to your space.

Locate a Dealer

Features

Aesthetic Design

  • Slim profile
  • Installs into standard electrical box

Multiple Screen Styles

  • Home screen for default space conditions
  • List screen for viewing all programmed objects
  • Accessibility screen displays all values and state icons in large format

Easy Programming

  • 10 programmable display objects (e.g. inputs, outputs, or values)
  • Object values can be programmed for adjustment by the user, or as display only
  • SS3-E objects can be configured to display on the home screen
  • Icons for display: On, Off, Auto, Manual, Cool, Heat, Occupancy, Fan, and Fan Speed
  • Up to 7 icons can be displayed simultaneously

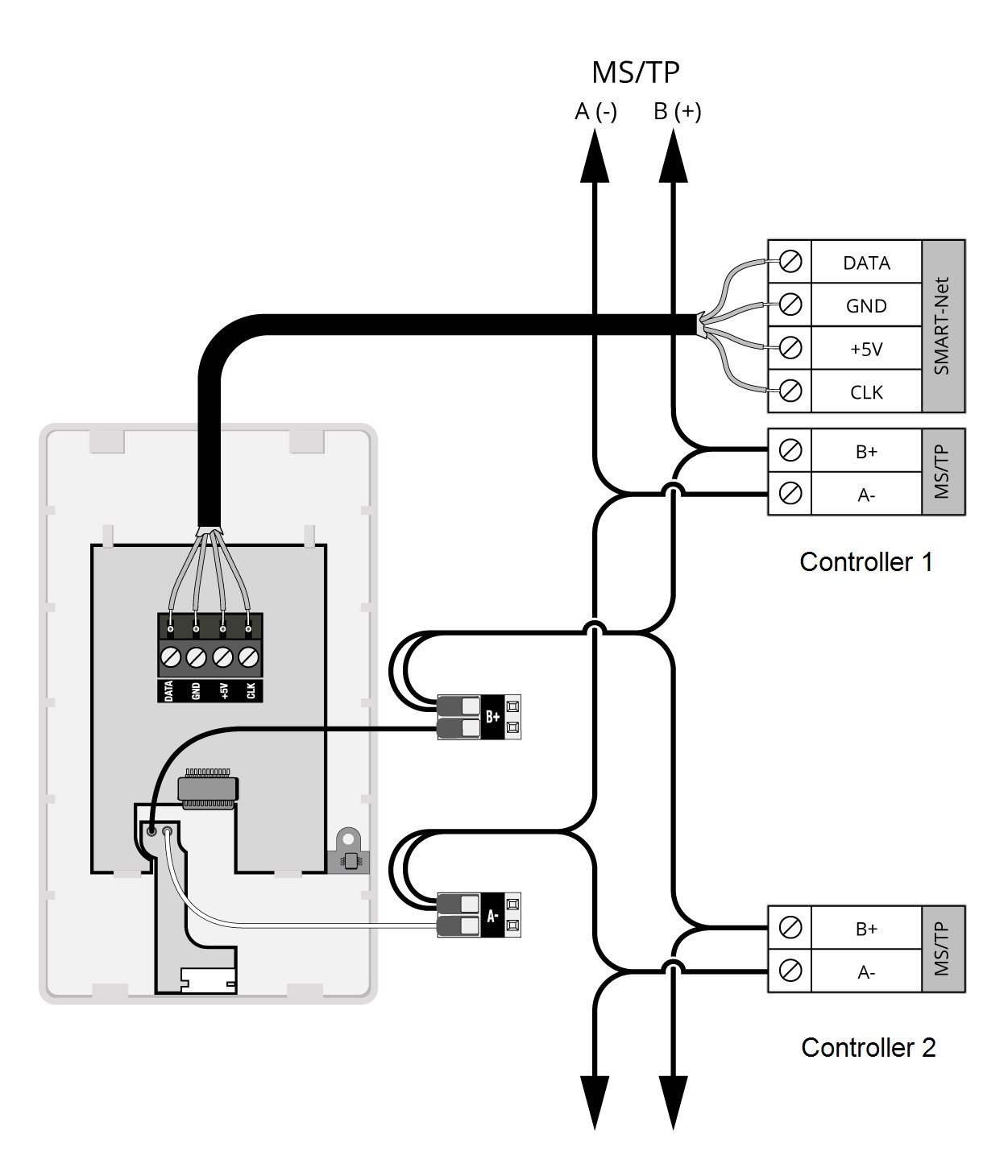

Connection & Addressing

  • Configure network address of SS3-E using customized button combination
  • Valid addresses are 1–16
  • Four wire connection

Built-in Configuration Tools

  • User enabled configuration tools allow access to MSet Tool, Flow Tool, and Diagnostics Tool

Language Library - The SMART-Sensor EPD hosts an onboard language library containing over 90 common industry words and phrases in seven different languages. Users can select from the following:

  • English
  • French
  • Spanish
  • Portuguese
  • German
  • Italian
  • Simplified Chinese

Optional CO2

  • 0–3276 ppm ±50 ppm NDIR
  • sensor

Optional Front Light

  • EPD screen glows faintly in low light (night) conditions while in use, then turns off after 10 seconds of inactivity

Optional Humidity

  • Accurate onboard humidity sensor

Optional I/O

  • Up to 2 thermistor or dry contact inputs, and up to 2 digital MOSFET outputs

Optional Occupancy

  • Compact sensor, ideal for detecting the motion of a person up to 5 m (16 ft.) away

Warranty

  • 5 years

Certification

  • CE
  • FCC CFR 47 Part 15/B
  • ICES-3(B)
  • UL916 Listed

Tech Specs

Supply Voltages (from controller)

  • SS3-E - 5 VDC @ 15 mA
  • -CO2 option adds 10 mA
  • -FL option adds 4 mA
  • -IO option adds 10 mA
  • -OC option adds 0.2 mA

Temperature Specifications

  • 12-bit A/D converter
  • User calibrated to ± 0.1 °C (0.18 °F) accuracy
  • Range, SS3-E: 0 °C to 50 °C (32 °F to 122 °F)
  • Range, SS3-E-IO: –40 °C to 120 °C (–40 °F to 250 °F)

Display

  • 200 x 200 pixel
  • 23 mm x 23 mm (15/16” x 15/16”)
  • Black and White

Multi-Language Support

  • Supports seven different languages

CO2 Sensor (for -CO2 models)

  • Automatic background calibration period of 8 days
  • Non dispersive infrared optical sensor
  • 0–3276 ppm range
  • Accuracy ±50 ppm
  • Non Linearity < 1% of full scale
  • Power: adds 10 mA to the base SS3-E

Front Light (for-FL models)

  • White LED front light (4 mA)

Humidity Sensor (for -H models)

  • 10–90% range
  • ±3%RH max from 20 to 80%, ±2% typical, see table

Inputs

  • Dedicated temperature sensor
  • 2 thermistor or dry contact (on -IO models)

Outputs (for -IO models)

  • 2 digital MOSFET relays
  • 24 VAC @ 0.5 A

Occupancy Sensor (for -OC models)

  • Passive infrared radiation (PIR) sensor
  • 64 detection zones
  • 94° horizontal range / 82° vertical range
  • 5 m (16.4 ft.) max. detection distance

Wiring Terminals

  • 14 to 26 AWG (2.08 mm2 to 0.13 mm2)
  • Stranded or solid core
  • Copper conductors only

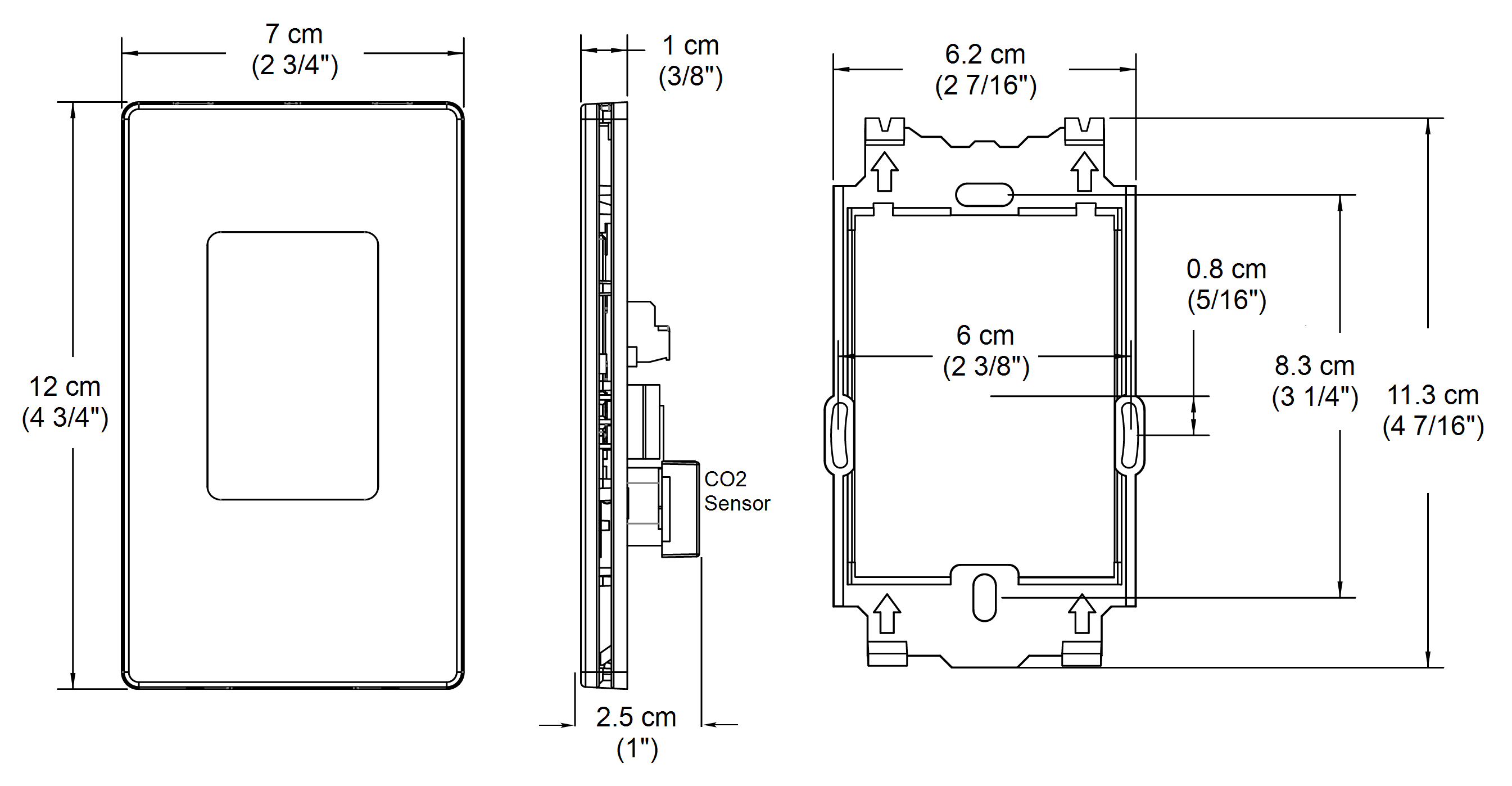

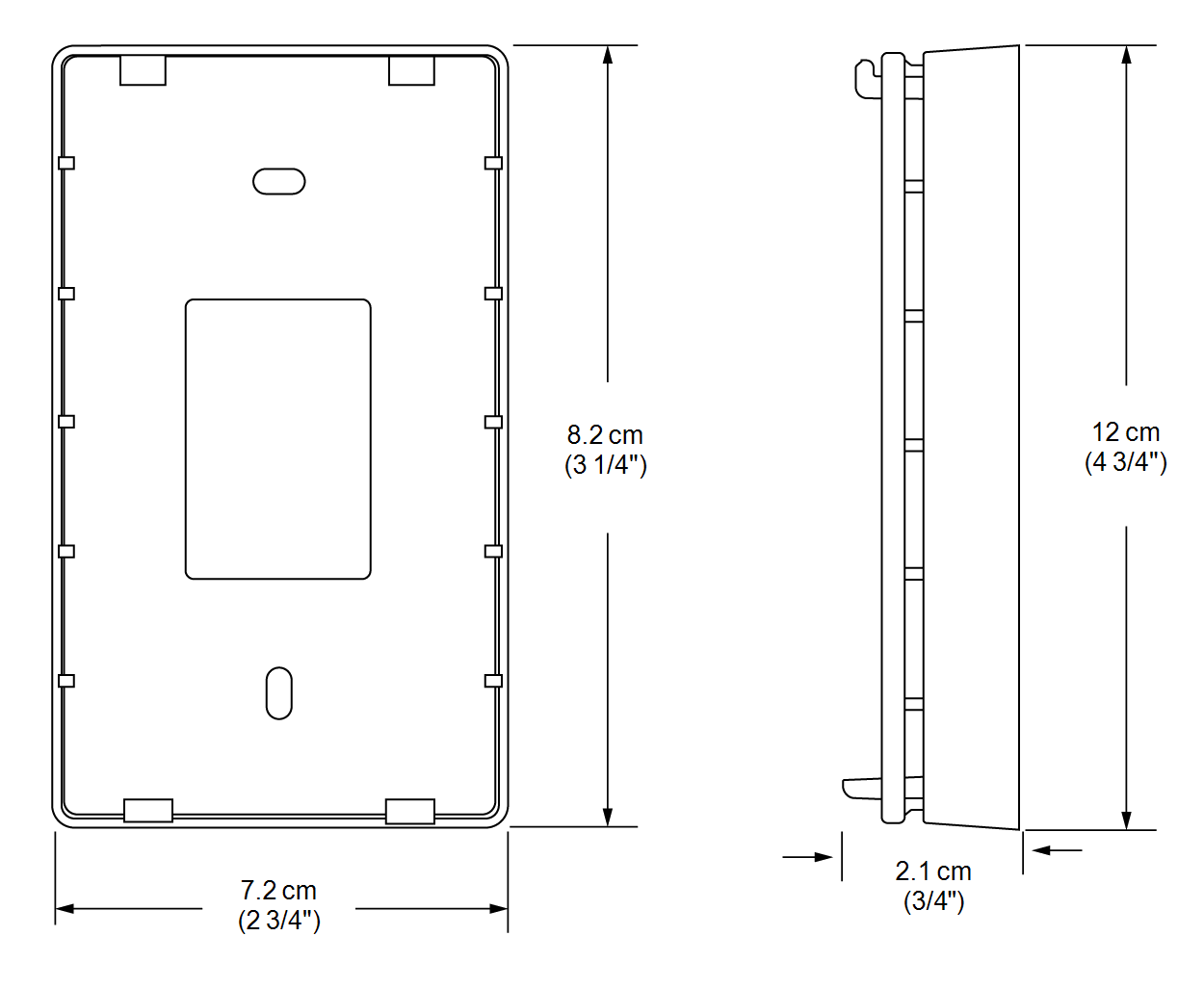

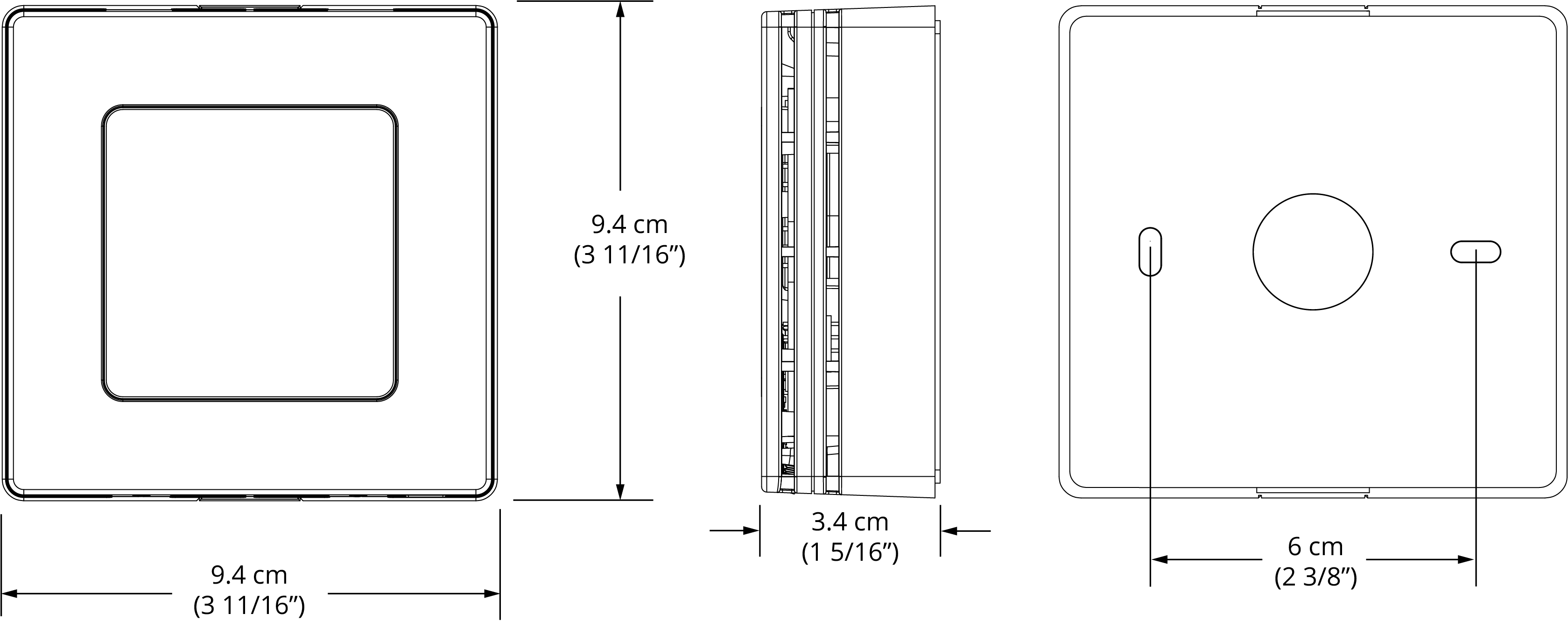

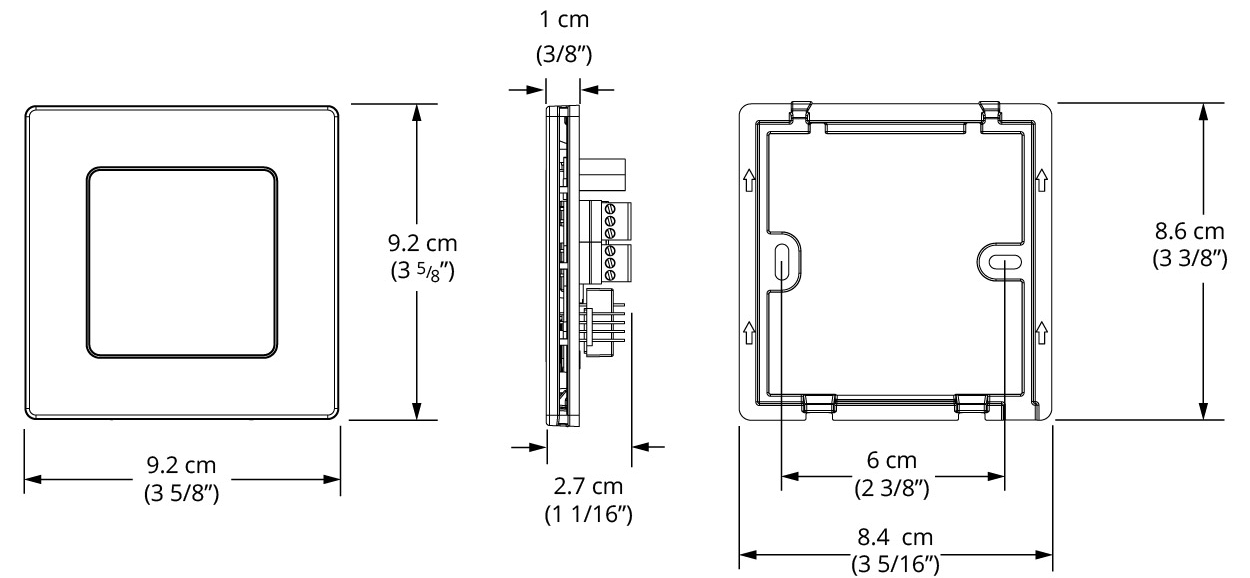

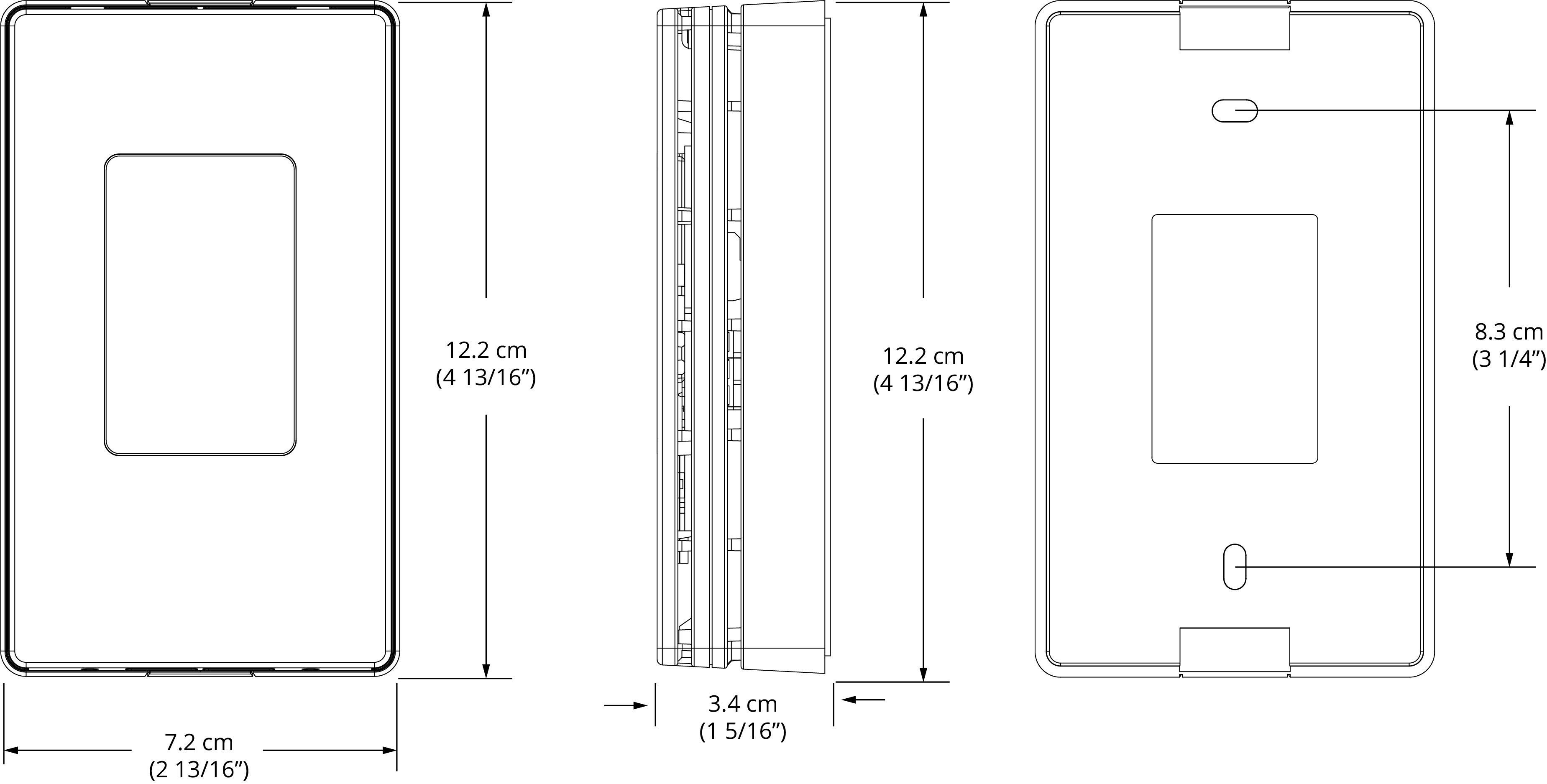

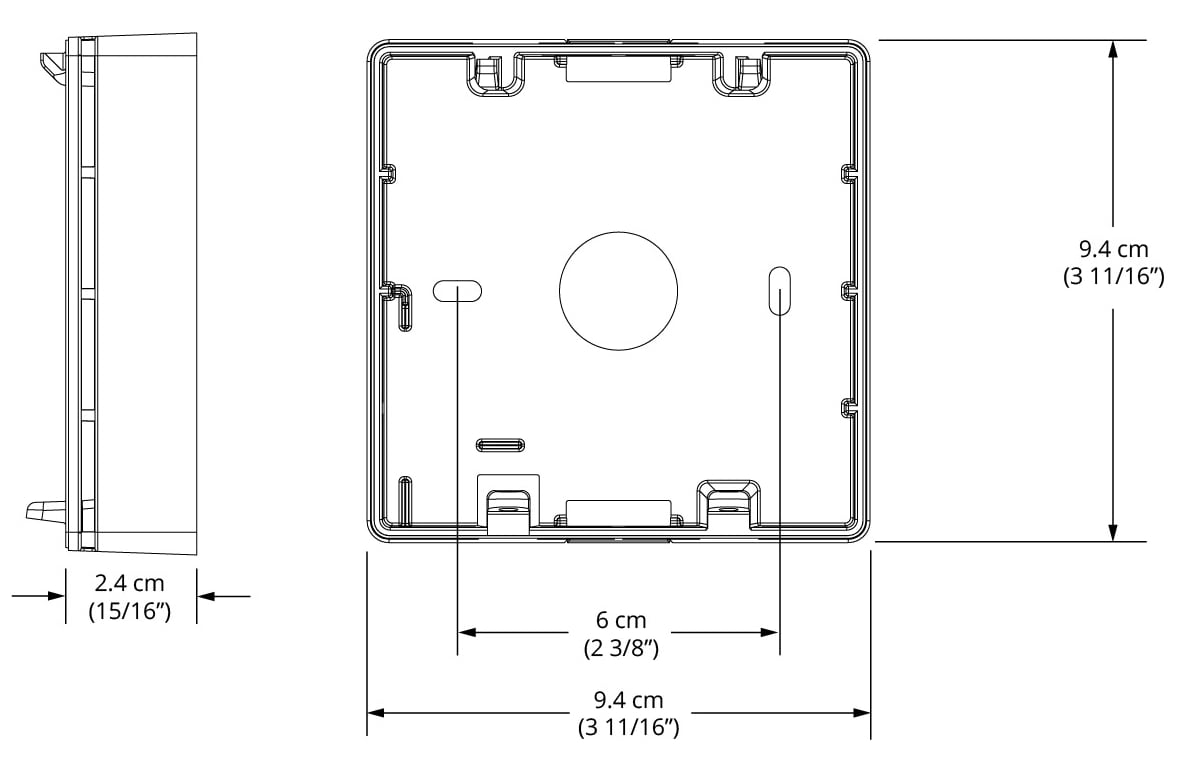

Dimensions

  • Base model: 12 cm L x 7 cm W x 1.9 cm H
    (4 3/4" L x 2 3/4" W x 3/4" H)
  • CO2 model: 12 cm L x 7 cm W x 2.5 cm H
    (4 3/4" L x 2 3/4" W x 1" H)

Weight

  • 0.086 kg (0.19 lb.)

Ambient Limits

  • Operating: 0 °C to 50 °C (32 °F to 122 °F)
  • Shipping: –25 °C to 60 °C (–13 °F to 140 °F)
  • Humidity: 10% to 90% RH non-condensing

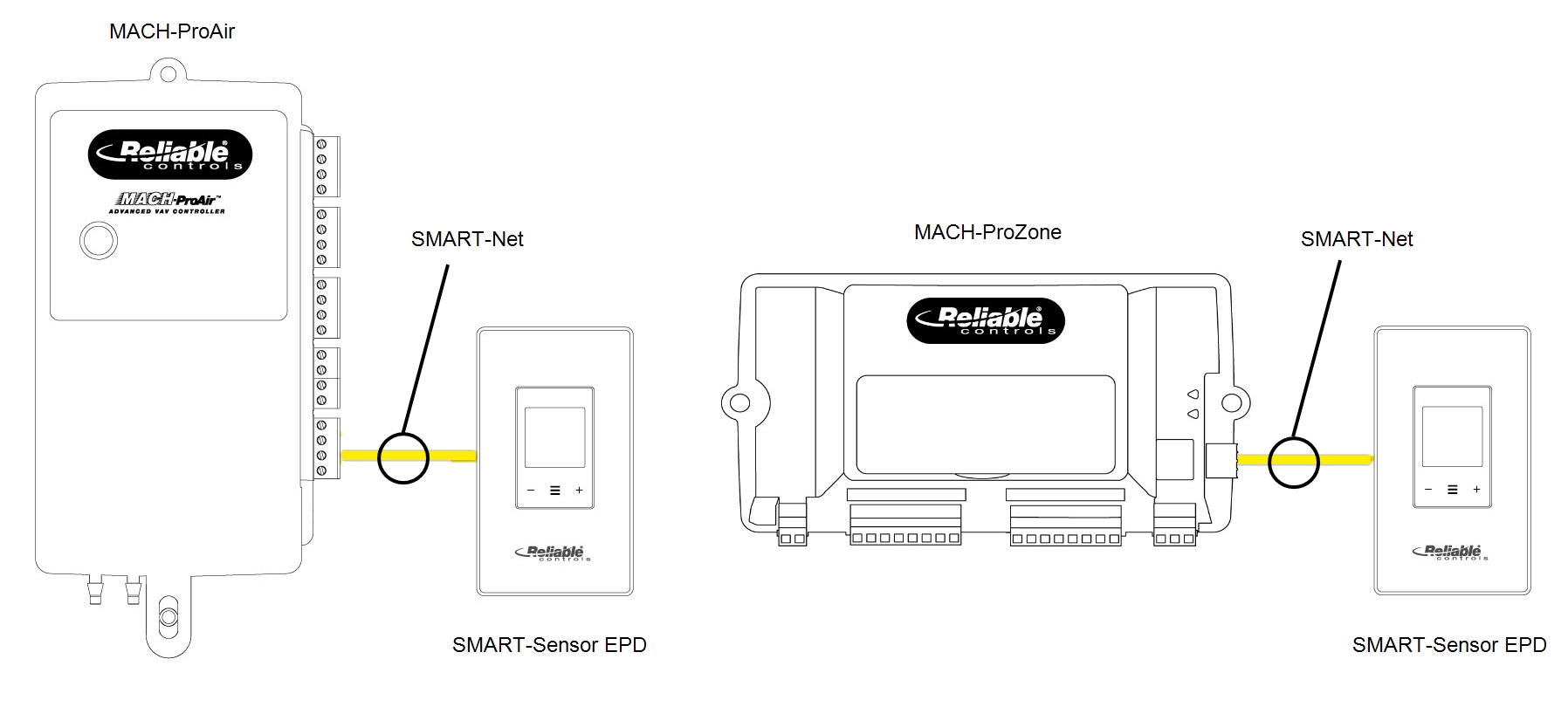

Application Diagram

MACH-ProAir


MACH-ProZone

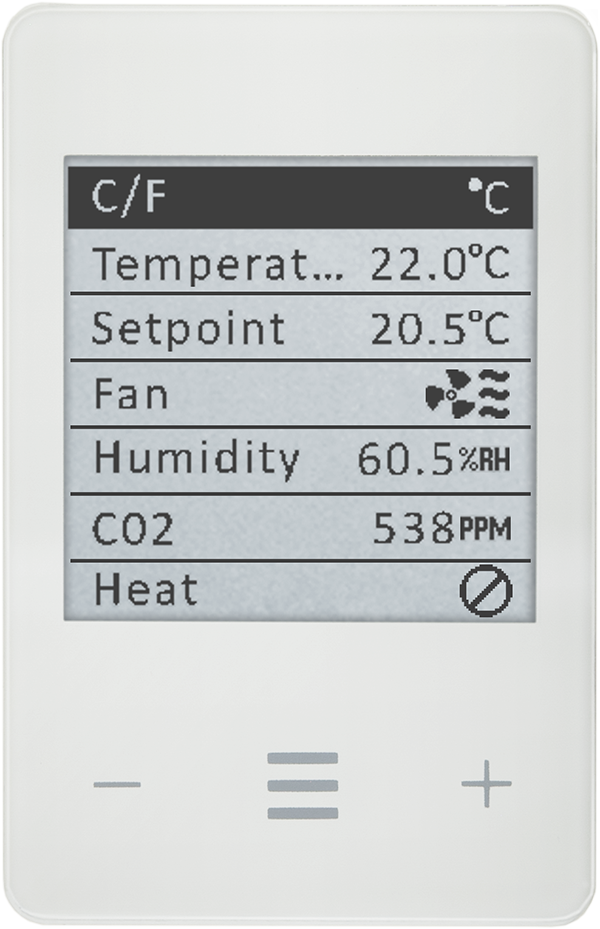

Screen Captures
