Lighting Interface Module

The Reliable Controls® Lighting Interface Modules provide the ability to switch Panasonic/Douglas WR6161 or GE RR7 series relays directly from Reliable Controls MACH-System universal outputs. Each module supports two inputs and two outputs.

Locate a Dealer

Features

  • Power derived from controller

  • Each module will switch two separate lighting circuits

  • Lightweight and compact

  • Convenient snap track mounting
  • Relay position feedback (LI-D model only)

  • Solid state switching, no relays to wear out

  • LI-D switches all Panasonic/Douglas Model WR6161 Series relays

Tech Specs

Inputs (2)
  • Wired to MACH-System universal outputs
  • 0-10 VDC 14 mA
  • When MACH-System output drives the LI on, the lighting relay is pulsed, latching it 'ON'
  • When output is turned off, the lighting relay is pulsed, latching it 'OFF'

Outputs (2)
  • Pulses 24 VAC @ 0.4 A to lighting relay(s)
  • Status - 0-5 V relay position (LI-D model only)
  • LI-D - 2 relays per output max
  • LI-G - 1 relay per output max
Dimensions
  • 8.6 cm L x 3.8 cm W x 2.7 cm H
    (3 3/8" L x 1 1/2" W x 1 1/8" H)
    (with snap-track)
  • 8.25 cm L x 2.54 cm W
    ( 3 1/4" L x 1" W)
    (board only)


Weight
  • 0.04 kg (0.09 lb.)

Ambient Limits
  • Operating:
    -20 °C to 55 °C (-4 °F to 131 °F)
  • Shipping:
    -20 °C to 60 °C (-4 °F to 140 °F)
  • Humidity:
    10% to 90%RH non-condensing

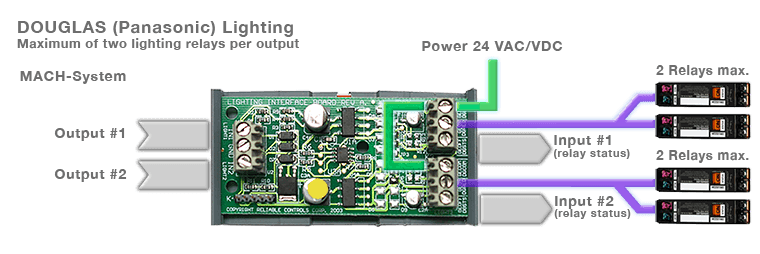

Application Diagram

GE Lighting


Panasonic-Douglas Lighting
