Power Supply WDC
Peripheral DC power

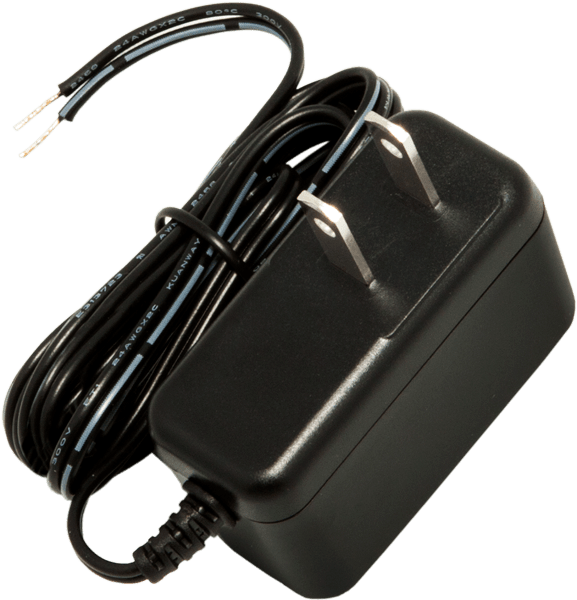

This wall mounted DC power supply (PS-WDC) provides 9 VDC, 600 mA for SSX, SST with CO2 or OC devices. The PS-WDC comes with a 170 cm (5.5 ft) 22 AWG wire cord.

Purchase Products



Product features

  • 9 VDC power supply
  • 600 mA current
  • 170 cm (5.5 ft) cord

Technical specifications

Maximum Input Voltage
  • 120 VAC 60 Hz 95 mA
  • 50-60 Hz
  • 180 mA

Maximum Output Voltage
  • 9 VDC

Output Current
  • 600 mA

Dimensions
  • 5.5 cm L x 3.5 cm W x 2.5 cm H (2 1/8” L x 1 7/16” W x 1” H) 170 cm (5.5 ft) cord

Weight
  • 0.07 kg (0.15 lb)
Operating Temperature
  • 0 °C-40 °C (32 °F-104 °F)
Storage Temperature
  • -20 °C-80 °C (-4 °F-176 °F)
Operating Humidity
  • 10%-90% (Non Condensing)

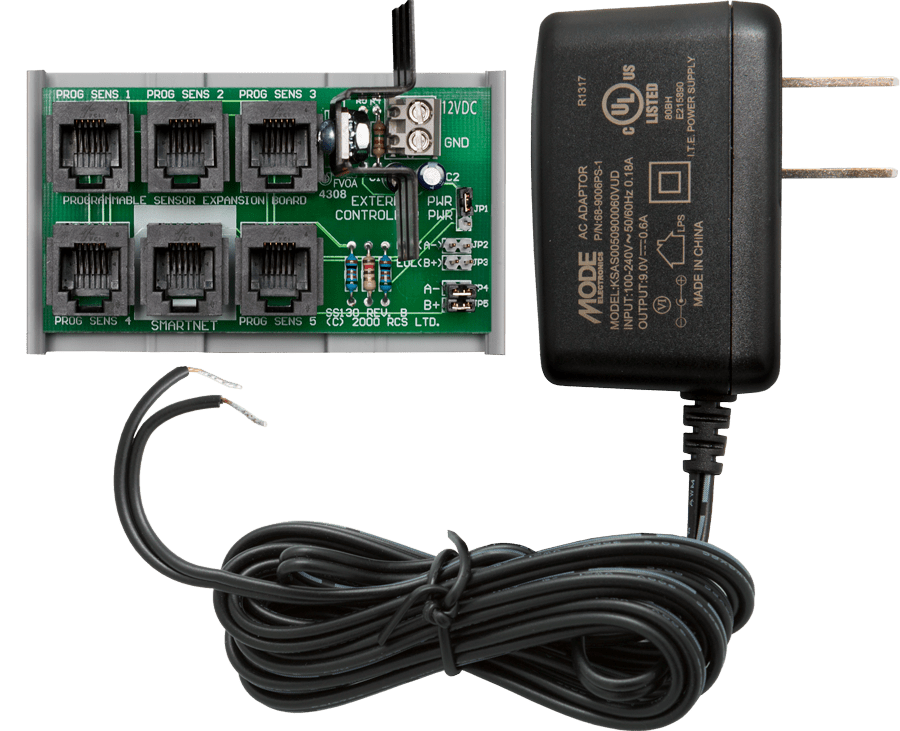

Diagrams
