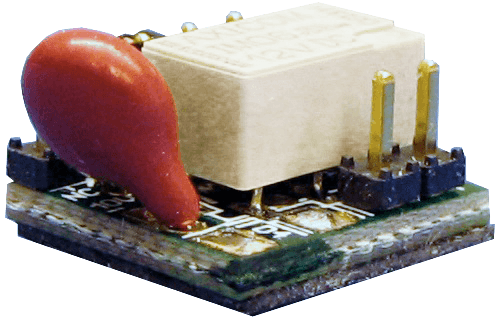

Relay Output Module

Reliable Controls output modules provide simple, flexible, economical output configurations for MACH‑Pro series controllers and expansion modules.

Purchase Products



Product features

Design

  • Form C single-pole double-throw dry-contact relay.
  • Use jumper to select as normally open or closed.

Mounting

  • No tools required; simply press into place.

Compatible Devices

  • MACH-ProSys controller.
  • MACH-ProWebSys controller.
  • MACH-ProPoint expansion modules.
  • MACH-Stat legacy controller.

Technical specifications

Relay Output

  • Single-pole, double-throw operation.
  • Switches 24 VAC/VDC.
  • 500 mA maximum.

Dimensions

  • 13.7 mm L x 16.6 mm W x 9.2 mm H
    (9/16” L x 5/8” W x 3/8" H).

Weight

  • Box of 10: 0.038 kg (0.084 lb).
