Desktop Device Stand
Portable Control Case

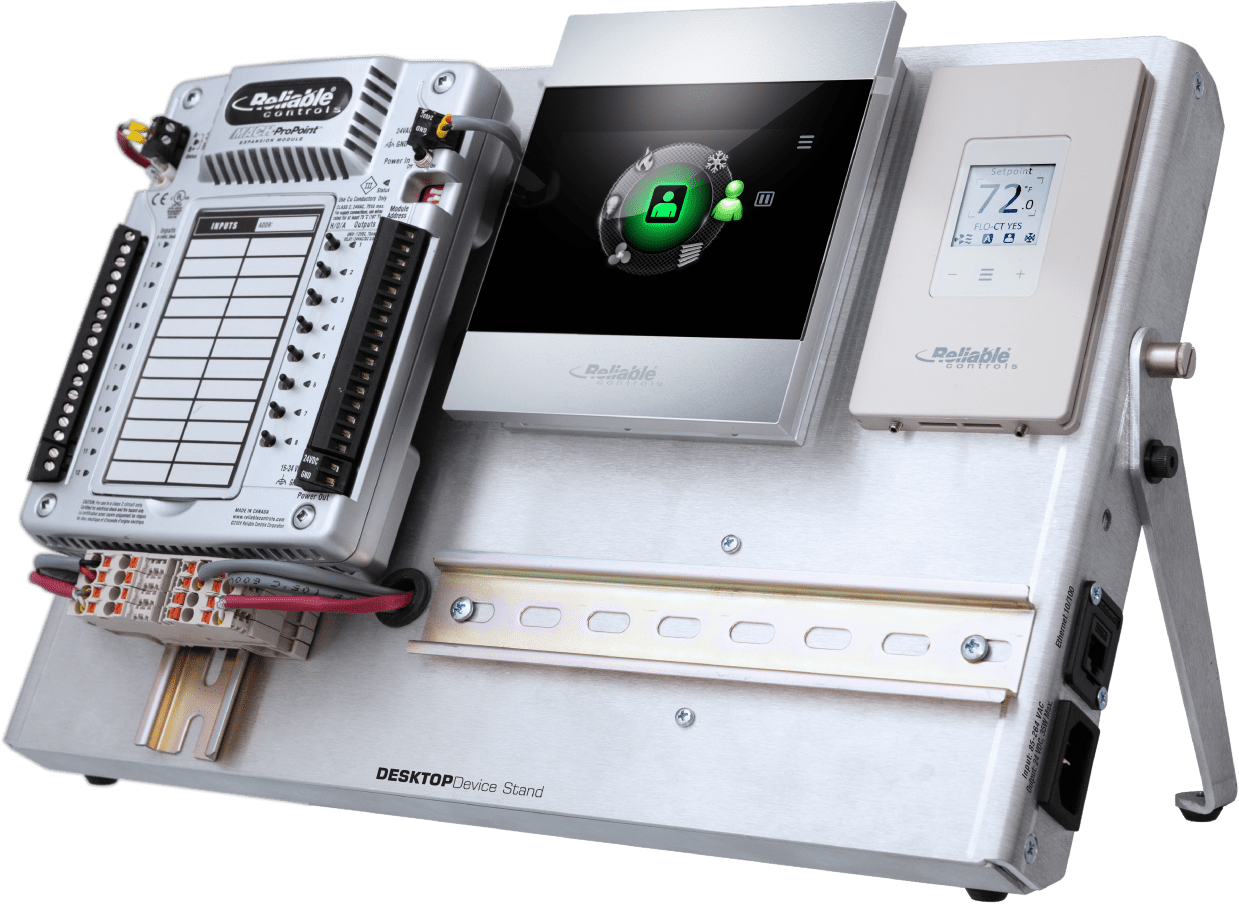

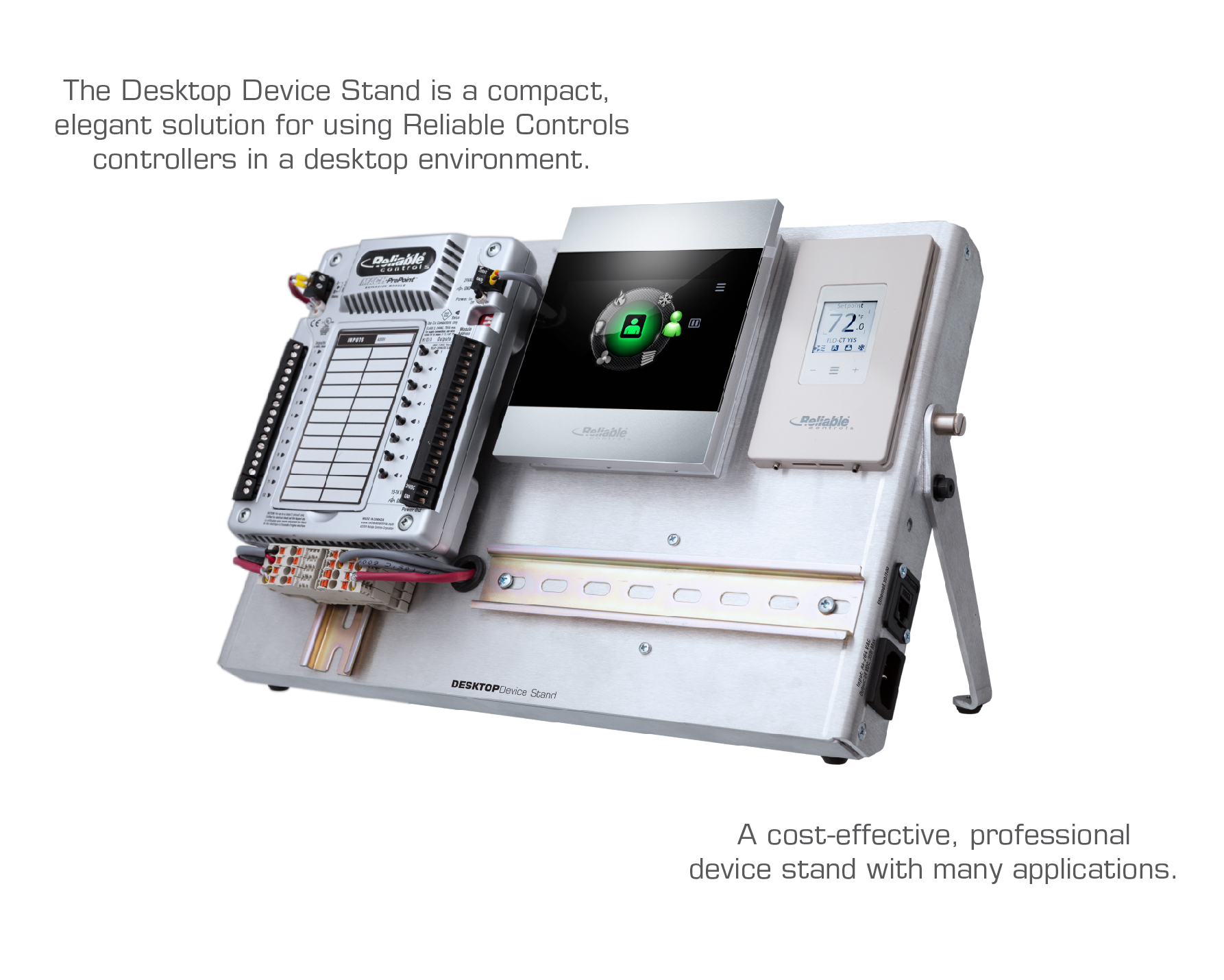

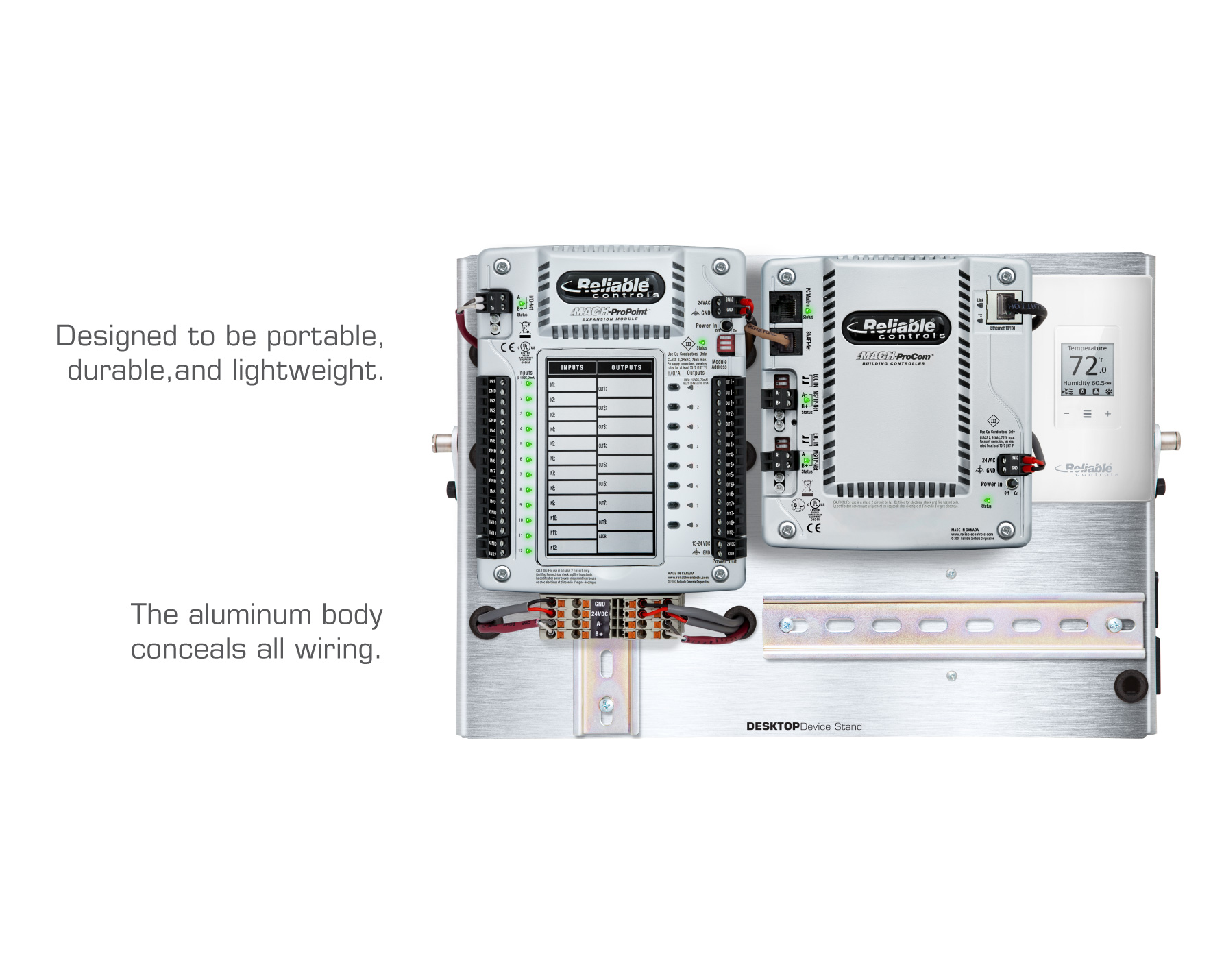

The Desktop Device Stand is a compact, elegant solution for using Reliable Controls controllers in a desktop environment. Designed to be portable, the durable, lightweight aluminum body conceals all wiring and has folding legs for easy shipment or storage. Swap controllers in minutes or test new devices using the built-in terminal blocks and DIN rail. For the technician who needs a system engineering solution for their desk, or the salesperson looking for a simple sales demonstration tool, this cost-effective, professional device stand has many applications.

Purchase Products

Product features

Flexible Applications

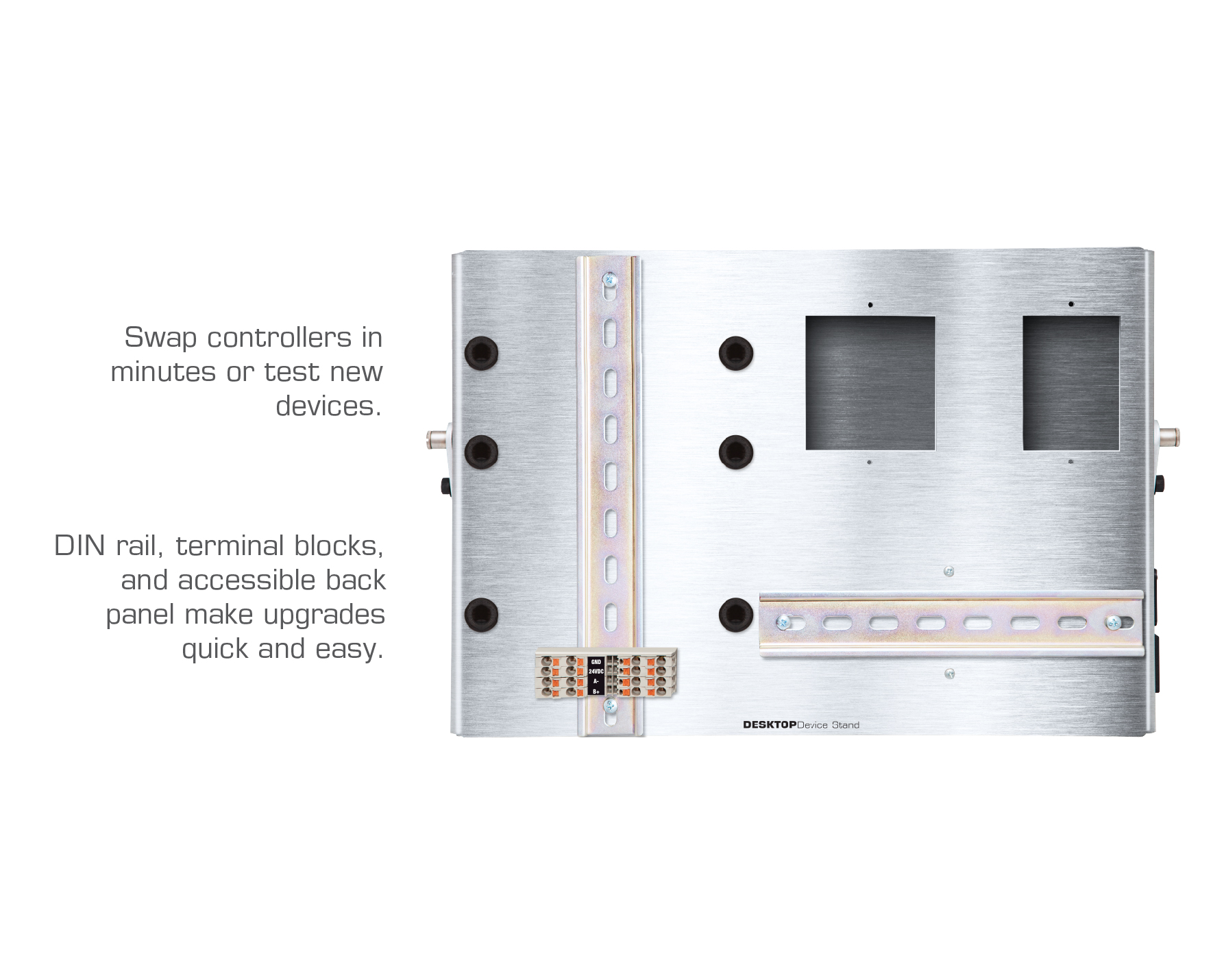

  • DIN rail, terminal blocks, and accessible back panel make upgrades quick and easy.
  • Suitable for a desktop engineering environment, product demonstration, or use as a test bench.

Compact Design

  • Organized and easy to transport.
  • Aluminum enclosure for upright or horizontal positions.
  • Concealed wiring.

Warranty

  • 5 years.
RoHS 3 Certified BTL Listed Device

Technical specifications

Controller Options

  • The Desktop Device Stand is designed to accommodate Reliable Controls devices with the following features:
    • DIN rail vertical length that fits a variety of controllers and peripherals, such as the MACH-ProCom™ and MACH-ProPoint™.
    • DIN rail horizontal length that fits any MACH‑ProZone™ or MACH‑ProLight™.
    • Cutout suitable for any MACH‑ProView™.
    • Cutout suitable for any SMART‑Sensor™ or SPACE‑Sensor™ Temperature device.

Power Supply

  • Universal 88–264 VAC input.
  • 24 VDC 35 W power supply.
  • Comes with all options.

Wiring

  • Category 5 cable.
  • 22 AWG two-conductor shielded BACnet cable.
  • 18 AWG two-conductor unshielded cable.

Enclosure

  • Aluminum enclosure.
  • Folding legs for upright or horizontal positions.

Mounting

  • Includes 35 mm DIN rail for mounting controllers.

Weight

  • TC-DDS:

    2.06 kg (4.5lb)

Dimensions

  • TC-DDS-HVAC:

    40.6 cm W x 27.4 cm H x 9.9 cm D
    (16" W x 10.8" H x 3.9" D).

Ambient Limits

  • Operating: 0°C to 50°C (32°F to 122°F).
  • Shipping: –25°C to 60°C (–13°F to 140°F).
  • Humidity: 10%–90% RH noncondensing.
