24 VAC Transformer

An integral part of all controls installations is the 24 VAC transformer that provides power to the MACH-System controllers and peripherals. Reliable Controls has a quality, cost-effective transformer line for many different power and mounting configurations. Choose from the many models available to suit your application.

Purchase Products

Product features

Features
  • Manual reset circuit breakers (MRCB).
  • Hub and foot mounts (on selected models).
  • Quick connects.
  • Split bobbin design.

Output
  • 24 VAC.

Frequency
  • 50/60 Hz.

Circuit Protection
  • Manual reset circuit breaker.

Configuration
  • Enclosed split bobbin design with steel end bells.

Lead Wires
  • 8" Color-coded lead wires.
  • Stripped and tinned flying leads.

Primary Connections
  • UL 1015 insulated 18 AWG lead wires, 8" long, .375" ends stripped and tinned.

Secondary Connections
  • UL 1015 insulated 18 AWG lead wires, 8" long, .375" ends stripped and tinned.

Certification
  • UL Class 2, Class 3, and General Purpose.
  • UL Listed or Recognized for USA/Canada.

Technical specifications

Supply Voltages
  • Primary supply have multi-tap options 120/347VAC, 120/240/277/480VAC (See ordering table).
  • Secondary 24VAC.

Circuit Protection
  • Manual reset circuit breaker (some models).
  • Thermal protection on models without external breaker.

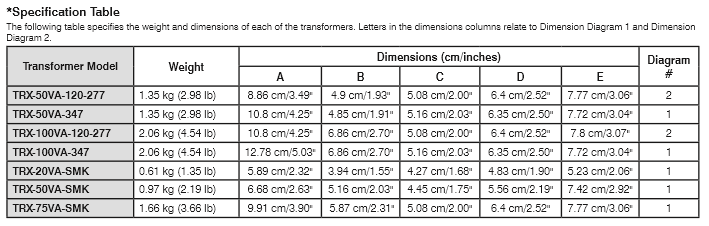

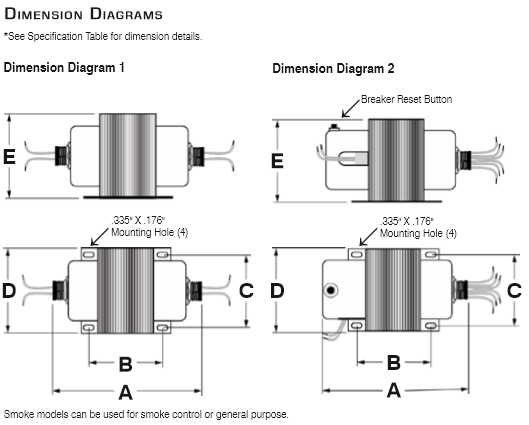

Dimensions
  • *See Specification Table.

Mounting
  • *See Specification Table for mounting hole layout.
  • Slotted mounting holes (4): .335" x .176".
  • Threaded flange hubs
    *See Specification Table for mounting hole layout.

Weight
  • *See specification table for each models weight.

Enclosure
  • 1/2" steel conduit locknut.
  • Wire protecting plastic inserts.
