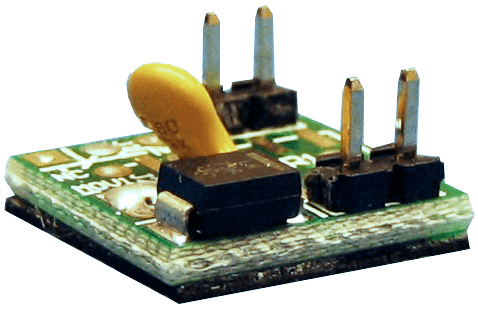

Universal Output Module

Reliable Controls output modules provide simple, flexible, economical output configurations for MACH‑Pro series controllers and expansion modules.

Purchase Products



Product features

Design

  • Provides a standard Reliable Controls universal output.
  • Built-in overload and short-circuit protection.
  • Use RC-Studio to configure with analog or digital range.

Mounting

  • No tools required; simply press into place.

Compatible Devices

  • MACH-ProSys controller.
  • MACH-ProWebSys controller.
  • MACH-ProPoint expansion modules.
  • MACH-Stat legacy controller.

Technical specifications

Universal Outputs

  • 12-bit D/A converter.
  • Analog: 0–12 VDC.
  • Binary: Software configurable between 0 and 12 VDC.
  • Maximum 75 mA each.
  • 24 VAC overvoltage and short protection.

Dimensions

  • 13.6 mm L x 14.1 mm W x 7.7 mm H
    (9/16" L x 9/16" W x 5/16" H).

Weight

  • Box of 10: 0.028 kg (0.062 lb).
