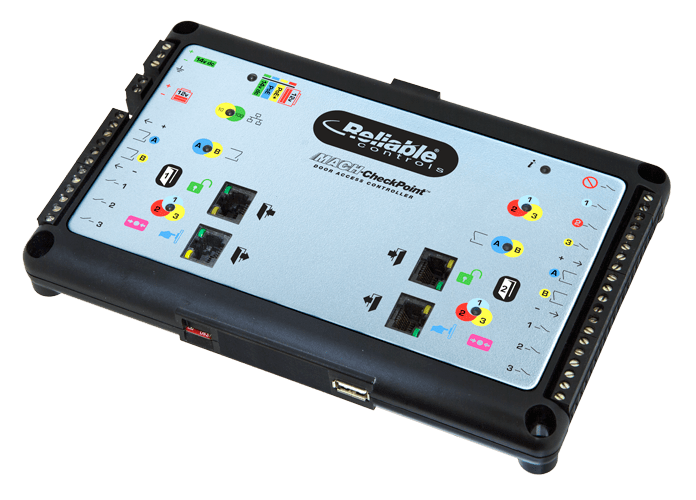

MACH-CheckPoint™
BACnet® Advanced Application Controller

The Reliable Controls MACH‑CheckPoint™ door-access controller is a fully configurable Power over Ethernet (PoE) device designed to meet or exceed the BACnet Advanced Application Controller (B‑AAC) profile.

Use with RC-Passport security management software

Purchase Products

Product features

Protocol

  • BACnet/IP.

Inputs

  • Nine inputs, configurable as supervised or unsupervised.
  • One unsupervised binary input.
  • Dry contact.

Outputs

  • Four relay outputs.
  • Relay contact rating: 2 A, 30 VDC.
  • LED status.

Backup Battery

  • Terminals for 12 VDC, 7 Amp-hour lead-acid backup battery.

Database

  • All access credentials stored in a SQLite database on each MACH-CheckPoint.
  • Allows for secure access even without network communications

Status LED

  • Innovative status indication LEDs and icons reduce installation and configuration time.
  • Status LEDs for all inputs, outputs, power supply, and communication ports.

Alarm Monitoring

  • Four-state alarm monitoring.

Secure

  • FIPS 201 compliant.
  • 128-bit encryption.

Readers

  • Wiegand protocol.
  • Four RJ45 reader ports with red/green LEDs, sounder, and tamper support.
  • Standard Category 5 FTP cabling for readers and communications.

Controller Enclosure

  • Optionally available in three cabinet sizes with options for a power supply and/or backup battery.

Warranty

  • 5 years.

Certification

  • ETL.
  • CE.
  • Designed to UL 294 and 1076 standards.

Technical specifications

What Ships in the Box

  • One MACH-CheckPoint.
  • Four input termination units.
  • Two output suppression diodes.
  • MACH-CheckPoint installation guide.

Processor

  • 200 MHz ARM9 processor.

Memory

  • 32/64/128 MB RAM.
  • 256 MB Flash.

Supply Voltages

  • DC supply recommended: 14 VDC +10%/-25%, 50 W maximum if backup battery is installed. 12 VDC power supply is insufficient without backup battery.
  • PoE+: 25.5 W minimum, 34.2 W maximum.
  • PoE: 12.9 W minimum, 15.4 W maximum.
  • 12 VDC, 7 Ah recommended lead-acid backup battery.

Communications

  • IEEE 802.3-af Ethernet 100BASE-T.

External Device Power

  • PoE: 7.2 W minimum, 9.6 W maximum.
  • PoE+: 17.7 W minimum, 26.4 W maximum.
  • 14 VDC power supply: 45 W maximum.
  • Each output A/output B pair is limited to 800 mA (PoE/PoE+) and 1.5 A (DC).
  • Each reader port is limited to 500 mA at 25°C derated to 300 mA at 70°C.

Dimensions

  • 136 mm L x 207 mm W x 25 mm H
    (5.35" L x 8.15" W x 0.98" H).

Ambient Limits

  • Operating: -40°C to 70°C (-40°F to 158°F).
  • Shipping: -40°C to 70°C (-40°F to 158°F).
  • Humidity: Up to 93% RH noncondensing at 40°C.

Certifications

  • CE.
  • ETL.
  • UL 294, UL 294B, and CAN/ULC-S319.

Diagrams


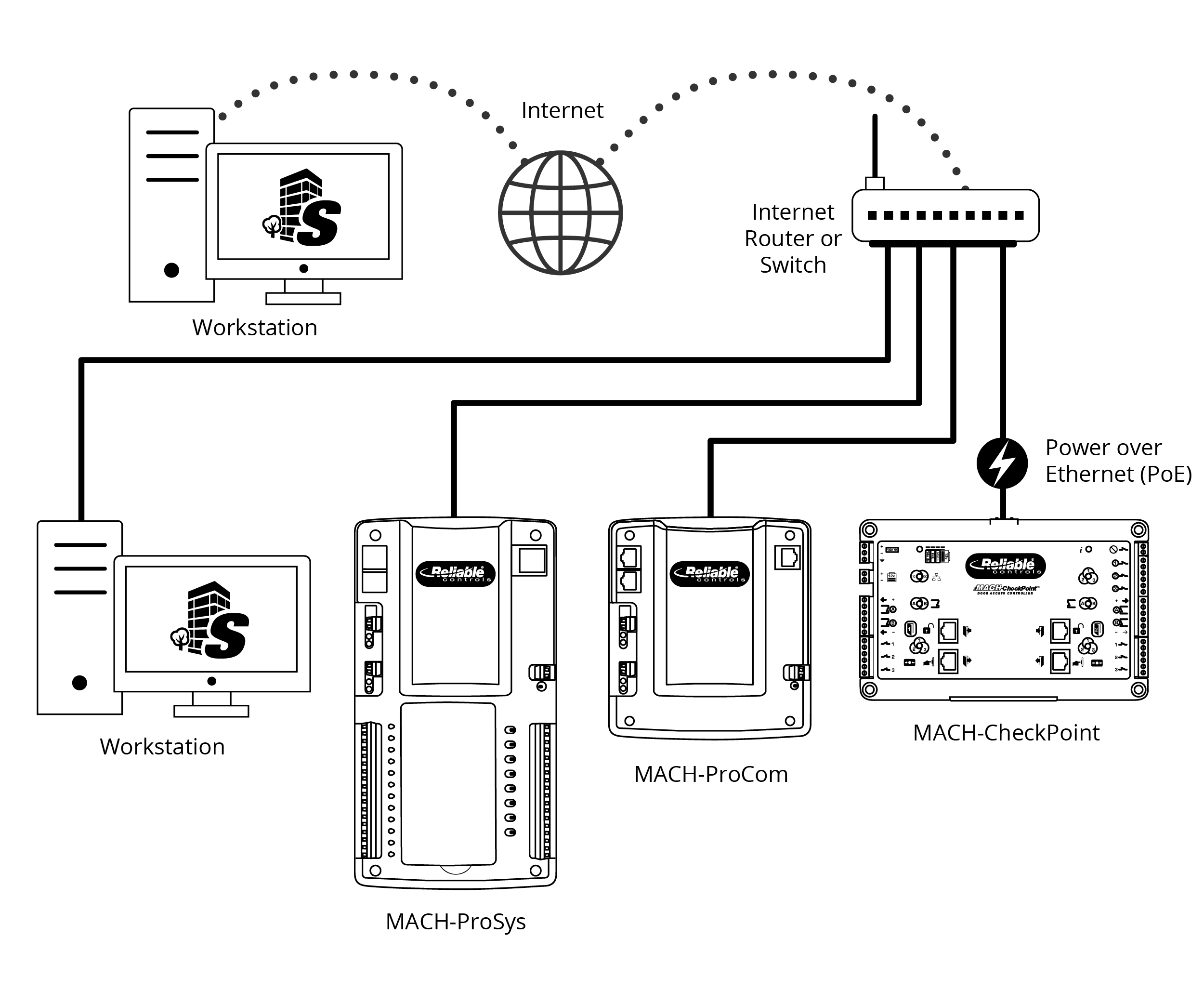

Network diagram

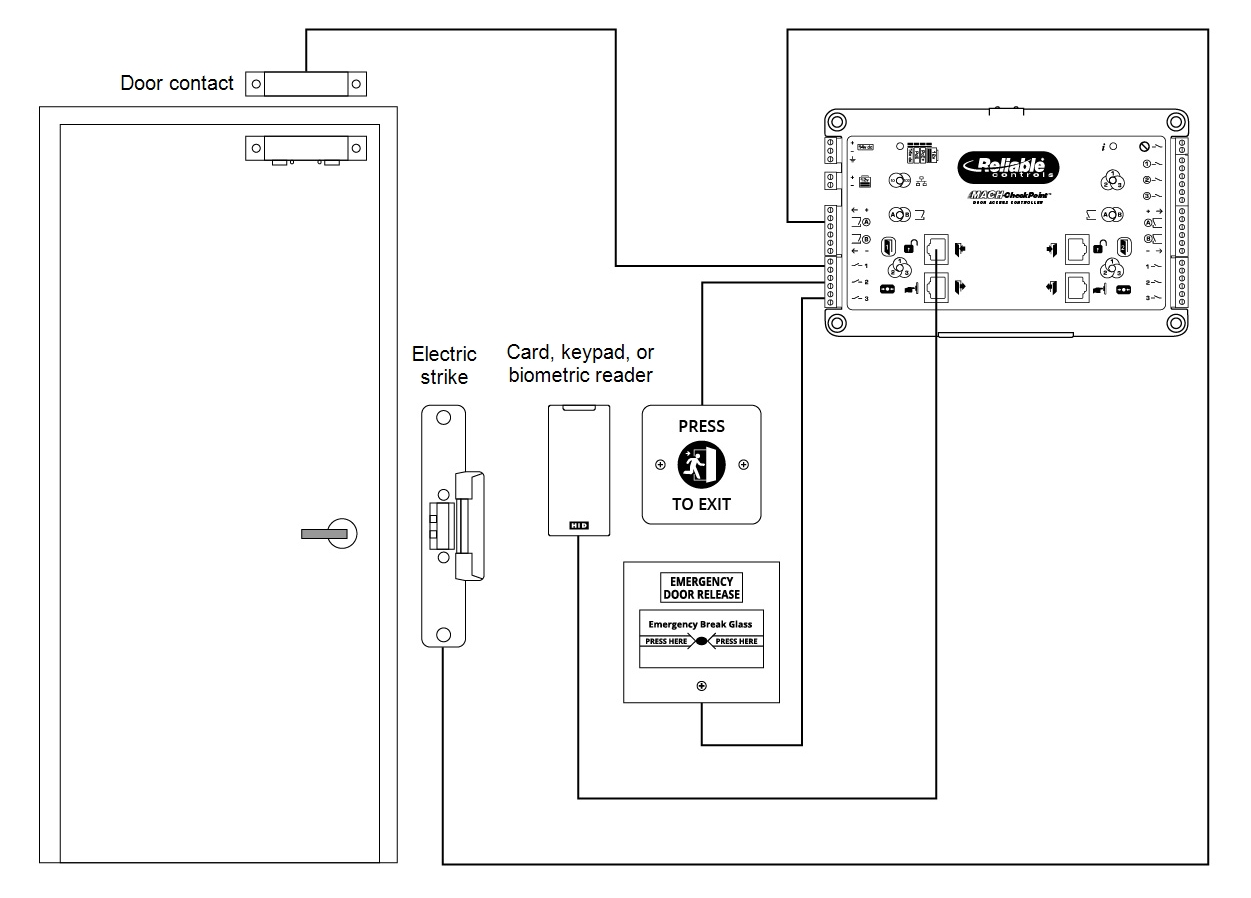

Application diagram

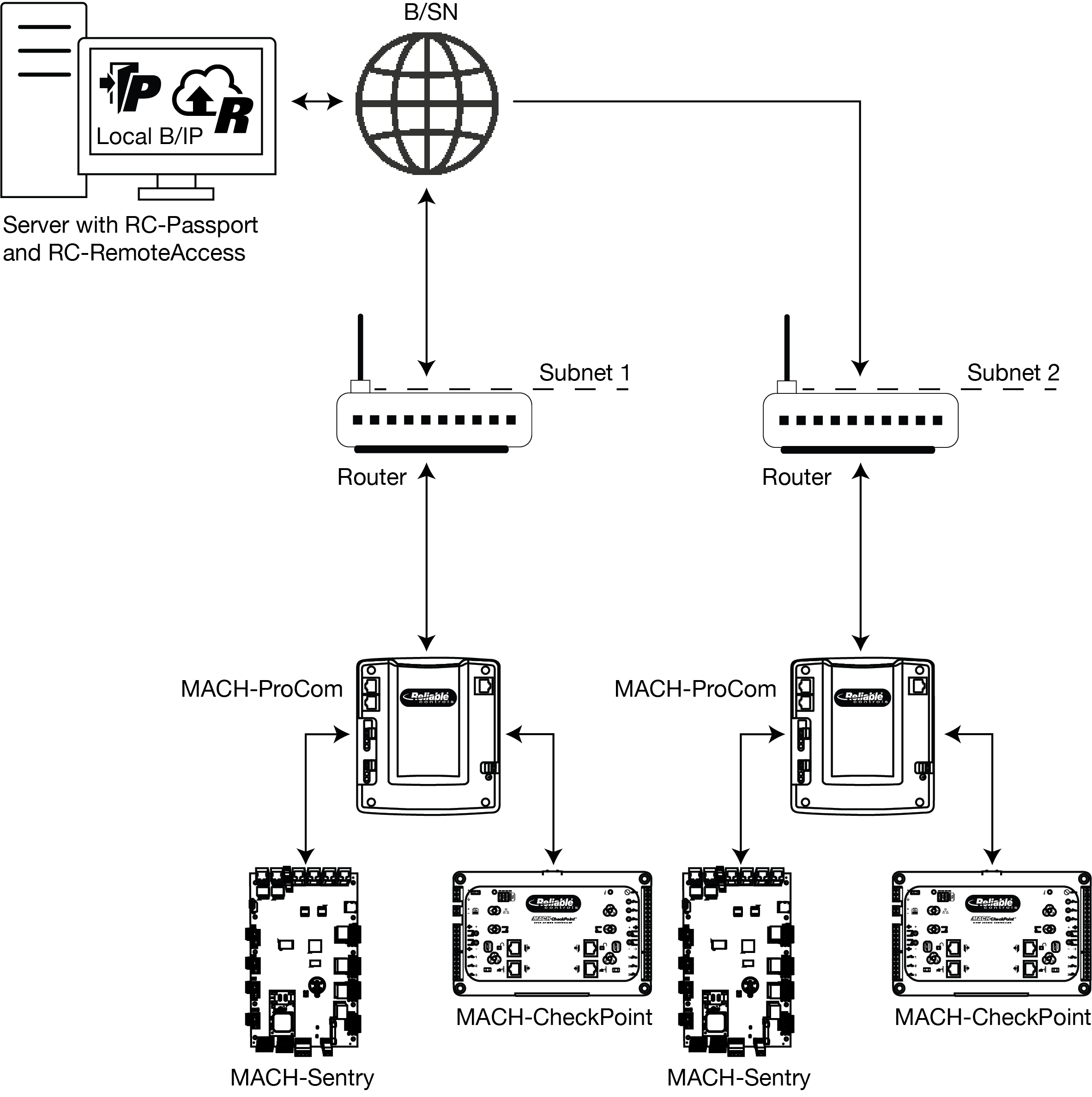

RCRA network diagram

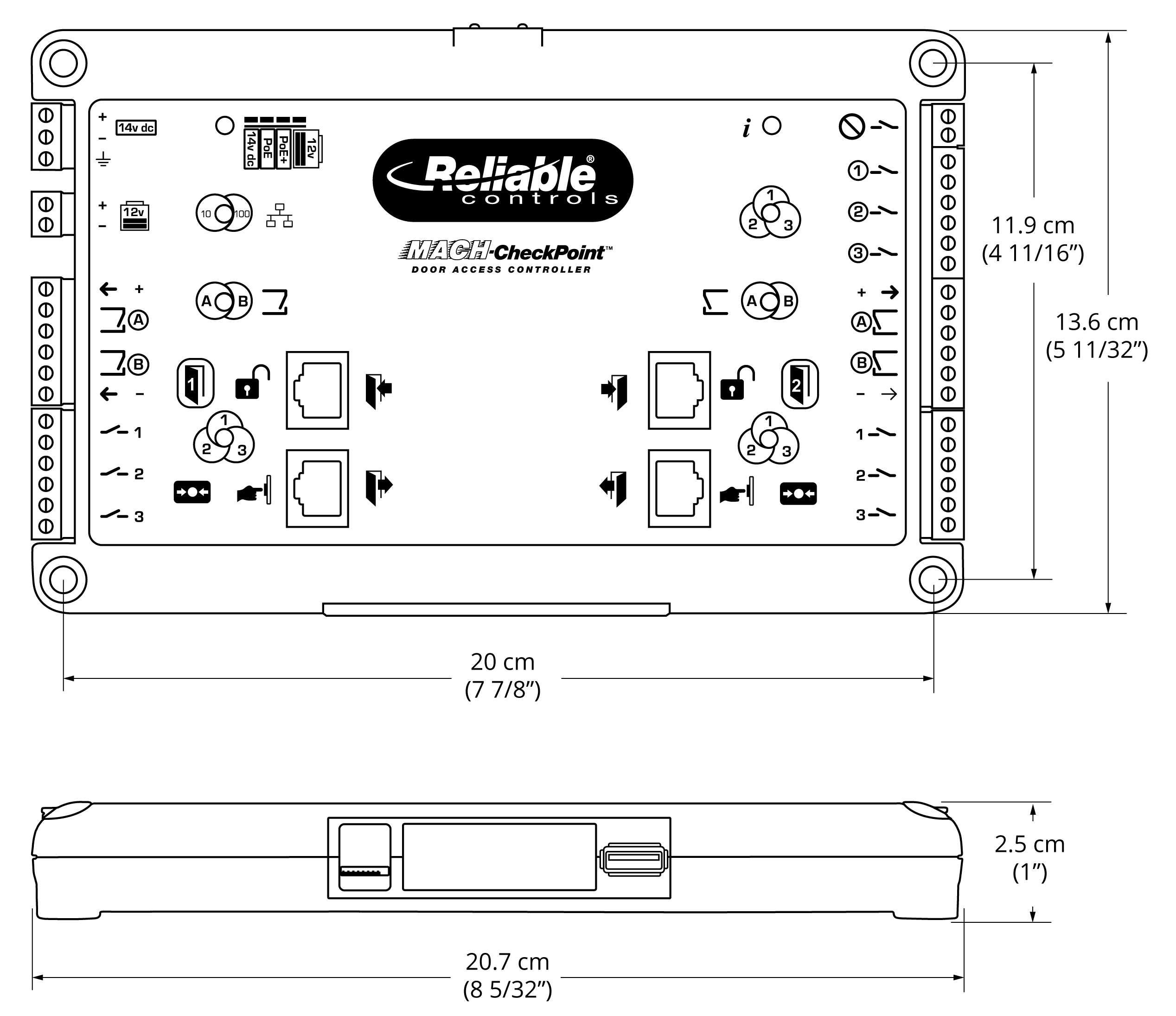

Dimensions
