MACH-ProView LCD
BACnet® Controller

The Reliable Controls MACH‑ProView™ LCD is a powerful and elegant BACnet Building Controller (B‑BC) and BACnet Operator Display (B‑OD) that provides a plenitude of attractive, high-resolution graphical interfaces to access, control, and monitor the comfort and energy of any space.

Purchase Products

Product features

Protocols

  • BACnet
    • All models support one B/SN connection with RC‑RemoteAccess® except ‑M (MS/TP) models.
    • Supports one BACnet/IP subnetwork.
    • Ethernet or MS/TP.
  • DHCP: Dynamic Host Configuration Protocol.
  • SMTP: Simple Mail Transfer Protocol:
    • Provides standard email communications for broadcasting email alarms.
    • Supports TLS/SSL security.
  • SNTP: Simple Network Time Protocol.
  • Wi-Fi on controllers with the -W option:
    • Supports up to WPA2-Personal using AES128 (IEEE 802.11i).
  • SMART-Net.

Large Touchscreen Display

  • Display full-color graphics, runtime logs, trend logs, alarms, and schedules.
  • Configure display to be always on or to blank after 10‑100 seconds of idle time.

Languages

  • English.
  • French.
  • German.
  • Italian.
  • Traditional Chinese.
  • Portuguese.
  • Spanish.

32 Views

  • Display and access related objects from the LCD.
  • Customizable screens include EQUIPMENTview, SPACEview, LISTview, and STATview.
  • System Views include TRENDview, ALARMview, SCHEDULEview, RUNTIMEview, CONFIGURATIONview, and NAVIGATIONview.

Support for myControl App

  • Display SPACEview, LISTview, and STATview using the myControl app.
  • The MACH-ProView allows 10 concurrent myControl app users.

64 System Groups

  • Group related objects on one display.
  • 320 unique objects per group.

Six Inputs

  • Universal ranges.
  • Use software to select thermistor/dry contact, 4–20 mA, or 0–10 VDC.

Optional Inputs

  • CO2 sensor.
  • Humidity sensor.
  • Occupancy sensor.
  • VOC sensor with humidity sensor.
  • Particulate matter sensor.

Six Outputs

  • First four have jumper-selectable universal ranges.
  • Last two are binary solid-state relay only.

512 Values

  • Select standard and custom ranges as well as fixed program-driven values.

64 Loops

  • Standard P, PI, or PID controllers for closed loop control.

32 Schedules

  • Up to 7 on/off cycles for each weekday or exception.

64 Calendars

  • Designate days of the year as holidays.

Multipoint Trend Logs

  • Store up to eight objects in each trend log.
  • Record values at user-defined intervals.
  • Dynamic; user assigned.

Single-point Trend Logs

  • Record values at user-defined intervals or based on change of value.
  • Dynamic; user assigned.

Runtime Report

  • Total the on time and record the on/off times of every binary object.
  • Automatically generated.

129 Notification Classes

  • Specify alarm configuration, broadcast destination, and email recipients.

64 Programs

  • Freely programmable control strategy in a readable, BASIC-like language.
  • 3,200 bytes per program.

128 Arrays

  • Up to 128 elements in a one-dimensional array.

20 Tables

  • For creating custom scaling functions.

Onboard Temperature Sensor

  • Dedicated 10 kΩ thermistor.

SMART-Net Port

  • Network up to four SMART-Net devices.

128 User Passwords

  • Protect access to the system.
  • Assign each user with a username and access level.
  • Multiple levels of security.

24 Custom Units

  • Eight analog engineering units.
  • Eight binary units.
  • Eight multistate units with eight states, 30 characters each.

256 Net Ins

  • The maximum number of shares from other devices.

128 Net Outs

  • The maximum number of writes to other devices.

Real-Time Clock

Warranty

  • 5 years.
RoHS 3 Certified OpenADR Alliance BTL Listed Device

Technical specifications

Processor

  • 147 MHz high-performance 32-bit embedded microcontroller.

Memory

  • 8 MB operating RAM.
  • 1 MB nonvolatile RAM for trends and dynamic values.
  • 32 MB Flash EEPROM operating system, database, and controller configuration.

Supply Voltages

  • 24 VAC ±10% 93 VA maximum, 50/60 Hz.
  • 24 VDC ±10% 9 W maximum.

Communication Options

  • One IEEE 802.3 (Ethernet 10/100BASE-T).
  • One IEEE 802.11 a/b/g/n (Wi-Fi, 2.4/5.0 GHz).
  • One EIA-485 (RS-485) port that supports a baud rate up to 76.8 kbps.
  • One SMART-Net port that supports up to four devices on a SMART-Net network.

Display

  • Full-color 480 x 272 pixel screen.
  • 4.3" wide-quarter VGA.
  • Thin film transistor.
  • Projective capacitive touch.
  • Display area 57 x 96 mm (2 1/4" x 3 3/4").

Universal Inputs

  • 12-bit A/D converter.
  • Analog: 0–10 VDC 4–20 mA, thermistor.
  • Binary: Dry contact.
  • Impedance:
    • 1 MΩ for 0–10 VDC range.
    • 250 Ω for 4–20 mA range.
    • 20 kΩ pull-up for thermistor/dry contact range.
  • Pulse counting up to 150 Hz. Supports flow meters.
  • 24 VAC overvoltage protection.

Universal Outputs

  • 12-bit D/A converter.
  • Analog: 0–12 VDC.
  • Binary: Software-configurable between 0–12 VDC.
  • Maximum 75 mA each.
  • 24 VAC overvoltage and short protection.

Solid-State Relay Outputs

  • Switch 24 VAC/VDC.
  • 500 mA maximum.

Temperature Sensor

  • Range -20°C to 55°C.
  • 0.1°C (0.18°F) resolution.
  • User calibrated to ±0.1°C (0.18°F) accuracy.

CO2 Sensor (-CO2 Option)

  • Nondispersive infrared optical sensor.
  • 400-2,000 ppm range.
  • Accuracy ±40 ppm.
  • Automatic calibration built in.
  • Nonlinearity <1% of full scale.

VOC Sensor (-V option)

  • Automatic background calibration.
  • Heated metal oxide sensor.
  • 0-8,190 ppb range.
  • Accuracy 40% of measured value.
  • Resolution:
    • 2 ppb (0 to 2,008 ppb).
    • 6 ppb (2009+ ppb).
  • Automatically includes humidity sensor (-H option).

Particulate Matter Sensor (-PM Option)

  • Laser scattering particulate matter sensor.
  • PM2.5 measures particles 0.3 to 2.5 µg.
  • PM10 measures particles 0.3 to 10 µg.
  • Sensing range 0–1000 µg/m3.
  • Accuracy at 25°C (77°F) 50% RH.
    • ±5 µg/m3 at 0–100 µg/m3.
    • ±10% of measured value at 100–1000 µg/m3.
  • Fan sampling method.

Humidity Sensor (-H Option)

  • 0.1% display resolution.
  • 0%-100% range.
  • Accuracy ±2.4% maximum from 0%–90%. See plot.

Occupancy Sensor (-OC Option)

  • Passive infrared radiation sensor.
  • 64 detection zones.
  • 94° horizontal range/82° vertical range.
  • 5 m (16.4 ft) maximum detection distance.

Real-Time Clock

  • ±1 second per day.

Memory/RTC Backup

  • 72-hour backup.
  • 10 years for database.

Wiring Terminals

  • 16–24 AWG (1.31–0.21 mm2).
  • Stranded or solid core.
  • Copper conductors only.

Dimensions

  • 14.5 cm L x 12.2 cm W x 2.7 cm H
    (5 11/16" L x 4 13/16" W x 1 1/16" H).
  • Compatible with single-gang, dual-gang,
    4" x 4", and 4 11/16" square boxes.
  • Minimum opening in wall 46 x 72 mm
    (1 13/16" x 2 13/16").

Hardware Mounting Included

  • Two 6-32 1" Truss head Phillips mounting screws for single-gang and dual-gang boxes.

Weight

  • 0.28 kg (0.6 lb).

Ambient Limits

  • Operating: -20°C to 55°C (-4°F to 131°F).
  • Shipping: -40°C to 60°C (-40°F to 140°F).
  • Humidity: 10%–90%.

Certifications

Diagrams


Wi–Fi Network

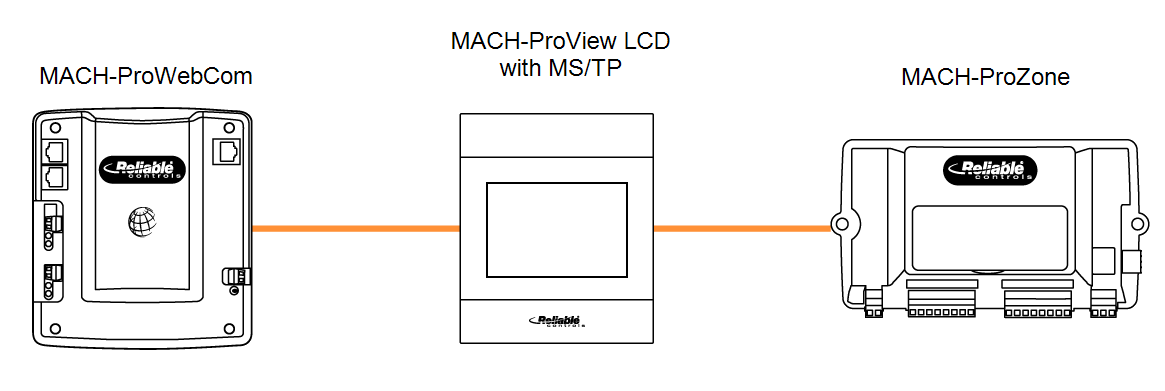

MS/TP Network

Ethernet Network

Humidity sensor chart

Interface Views

EQUIPMENTview
EQUIPMENTview
EQUIPMENTview
SPACEview
LISTview
STATview
SCHEDULEview
