Touchscreen Panel
Human Machine Interface

Optimized to deliver high luminance and enhanced performance, the Touchscreen Panel is a compact touch-panel computer with an embedded Microsoft Windows operating system, ideal for web browser, kiosk, and other Human Machine Interface applications. The Touchscreen Panel is perfect for running RC‑Studio® or browsers connected to RC‑WebView® or the MACH‑ProWebCom™ or MACH‑ProWebSys™ browser user interface.

Purchase Products

Product features

Product Features

  • Intel J1900 or i5 processor.
  • Projected capacitive (PCAP) multi-touch touchscreen.
  • 10"–22" display.
  • 8 GB or 16 GB RAM.
  • 500 GB hard disk or 480 GB solid-state drive.
  • Integrated Wi-Fi.
  • Integrated speakers.
  • Rugged black metal alloy enclosure and bezel.
  • 100 mm (3.94") rear VESA mounting.
  • Enhanced performance.
  • Sleek, slim, space-saving kiosk design.
  • Long-life LED backlight.

Technical specifications

Display

  • PCAP multi-touch touchscreen.
  • > 50,000 hours mean time between failures of LED backlight.
  • 80/80/70/70 viewing angle.
  • 250 cd/m2 brightness on 10"–12" displays, 300 cd/m2 on 15"–22" displays.
  • Contrast ratio 800:1 on 10"–15" displays, 1000:1 on 17"–22" displays.

Performance and storage

  • i5-7200U CPU, 8 GB RAM, 500 GB hard drive.
  • i5-7200U CPU, 16 GB RAM, 480 GB solid-state hard drive.
  • J1900 CPU, 8 GB RAM, 500 GB hard drive.
  • Realtek ALC662 audio driver.
  • Windows 10 installed.

Environment

  • Operating temperature 0°C to 60°C (32°F to 140°F).
  • Operating humidity 10%–90%, no condensation.
  • IP-65 front.

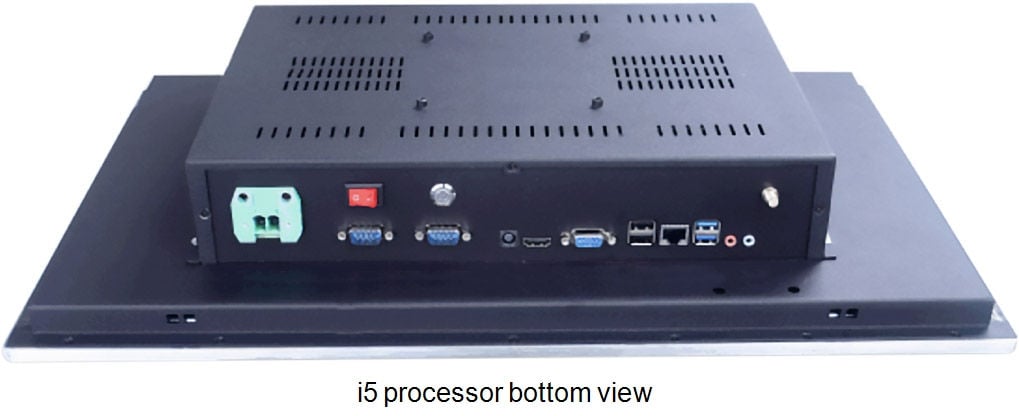

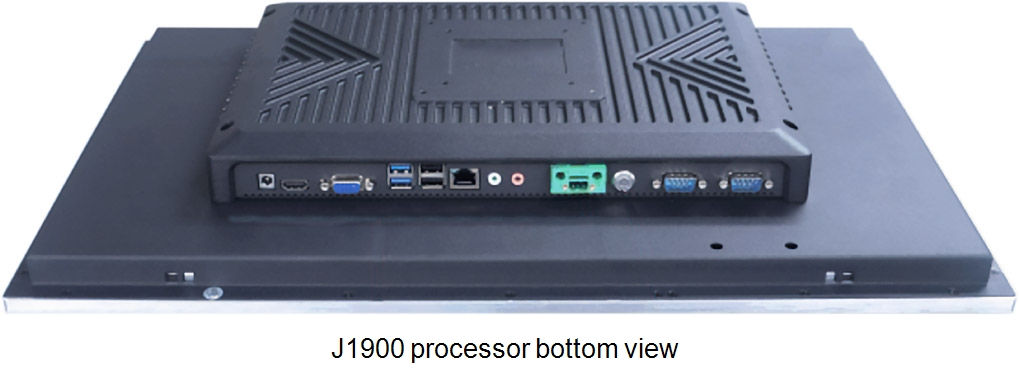

Peripherals

  • Four USB ports (3 USB 2.0, 1 USB 3.0).
  • Two RS-232 ports.
  • One HDMI port.
  • One VGA out port.
  • LAN—RTL8111F 1,000 Mbps.
  • Audio line in/out and mic in.
  • Two integrated speakers.
  • Integrated Wi-Fi.

Details

  • Brushed metal alloy enclosure.
  • 12 V power input; power adapter included.

Mounting (included)

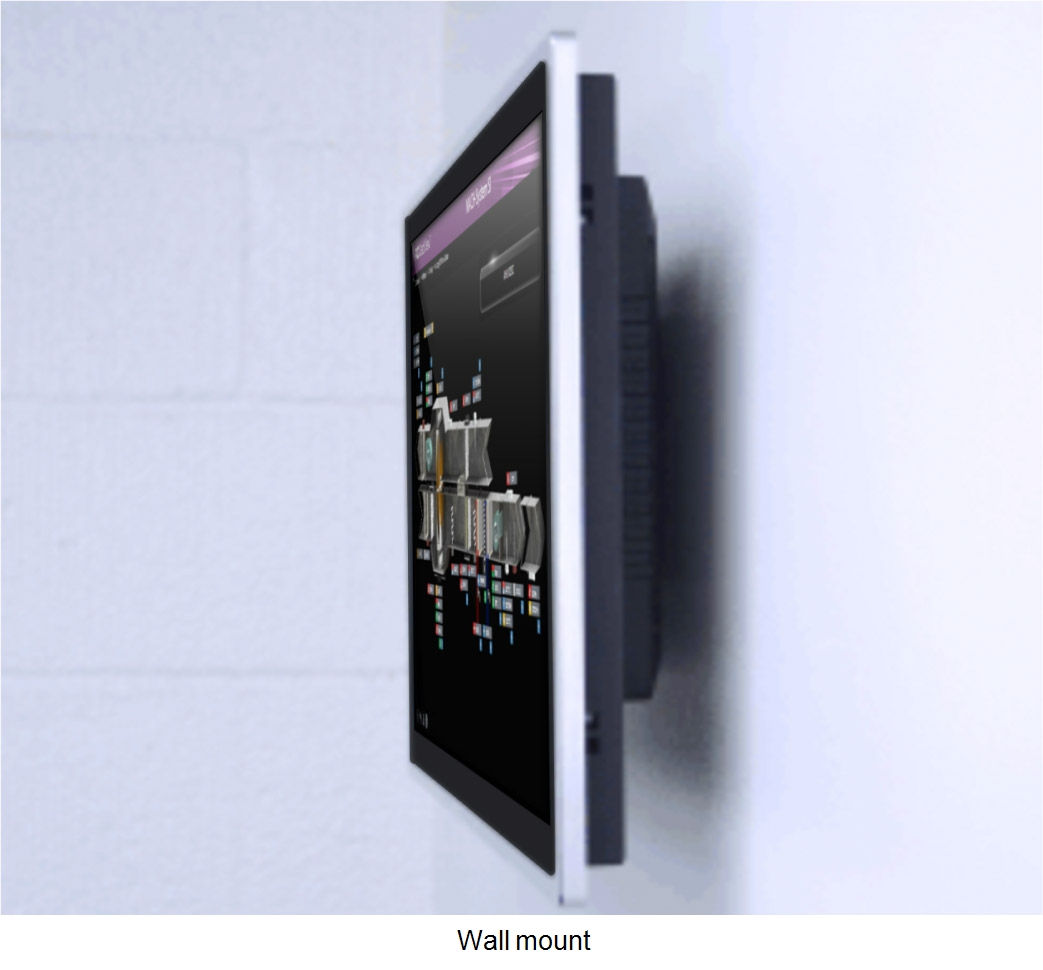

  • 100 mm (3.95") rear VESA wall mount bracket.

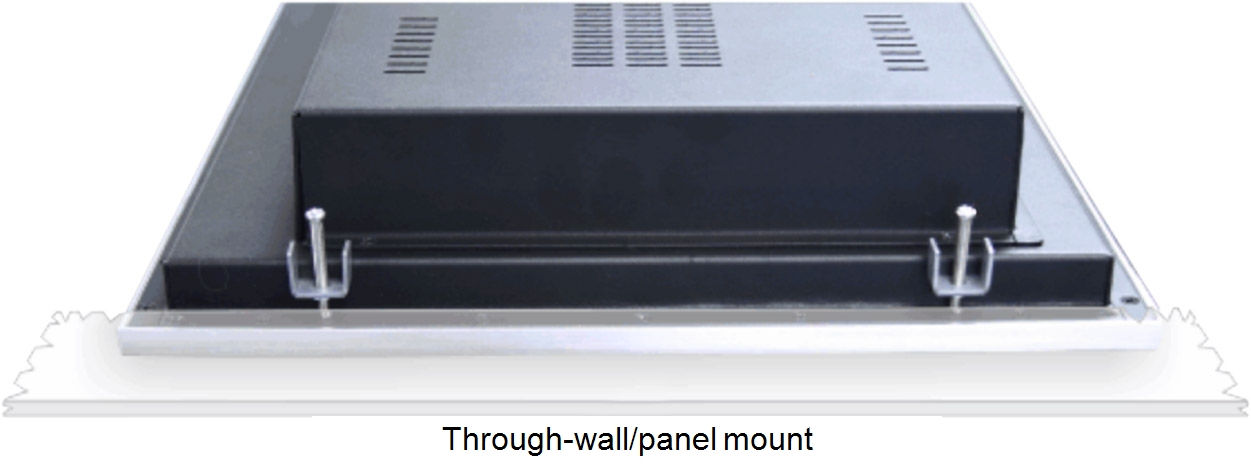

  • Through-wall/panel mount clips for walls 3.2 mm–19 mm (1/8"–3/4") thick.

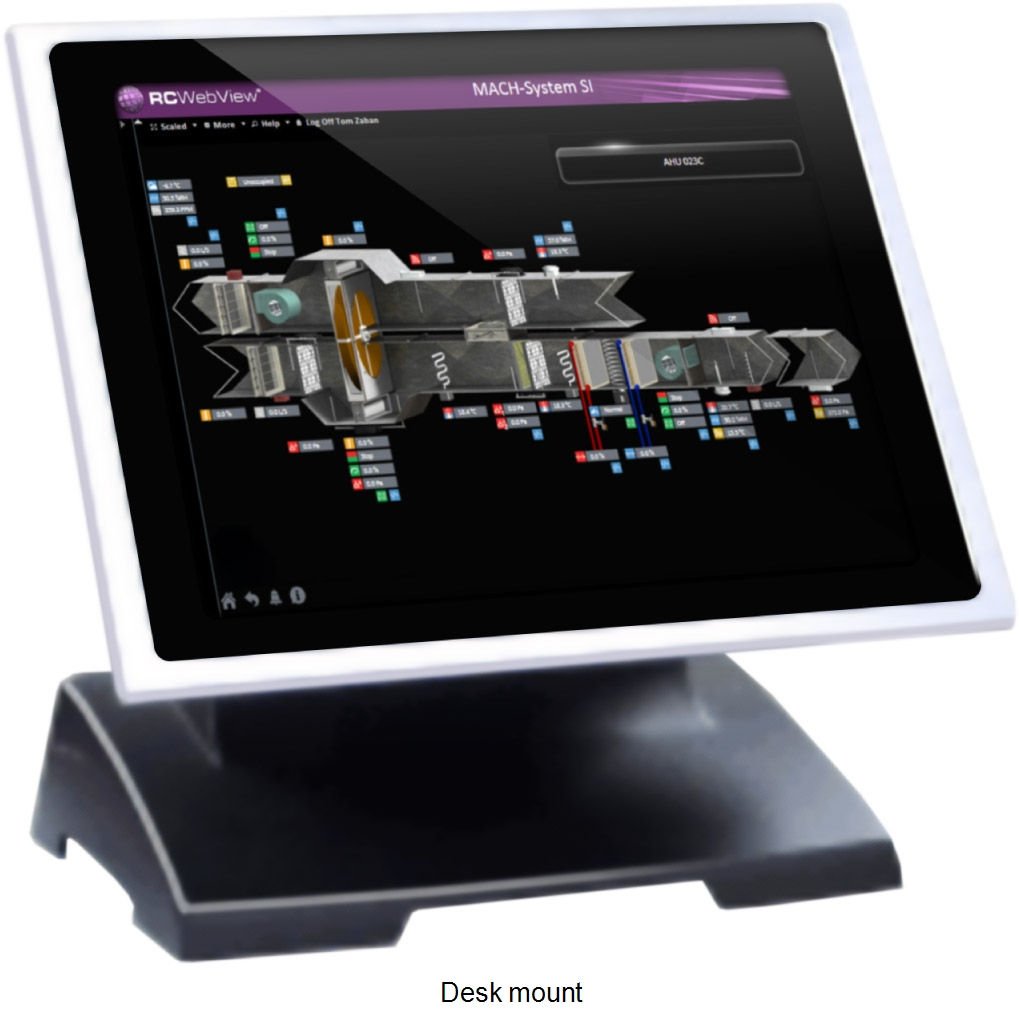

  • Desk mount paddle stand.

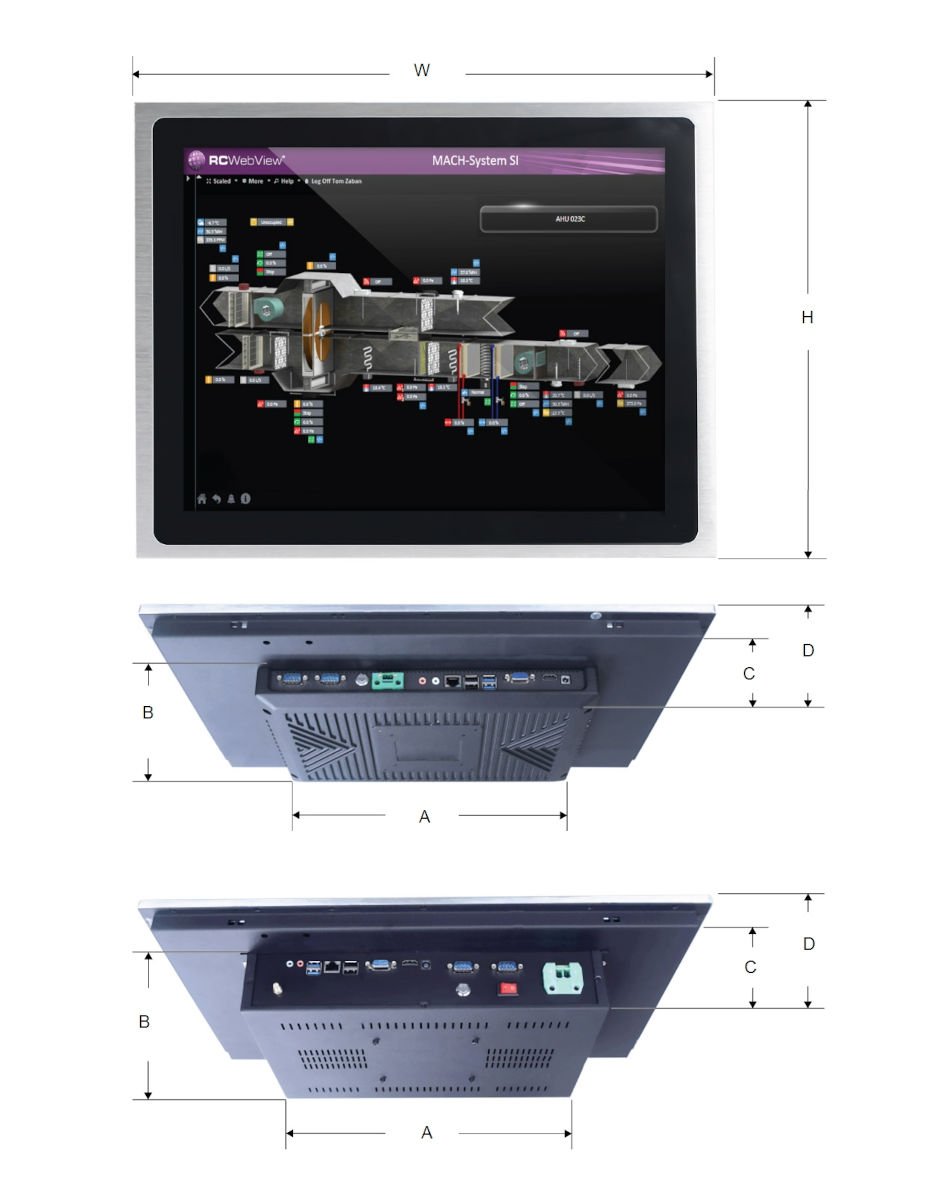

Dimensions


Dimensions

  W x H x D A x B x C
15"

36 cm x 28 cm x 5.6 cm

(14 1/8" x 11 1/8" x 2 1/4")

31 cm x 23 cm x 3.3 cm

(12 3/16" x 9 1/16" x 1 5/16")

17"

39 cm x 32 cm x 5.5 cm

(15 1/4" x 12 5/8" x 2 1/8")

31 cm x 23 cm x 3.3 cm

(12 3/16" x 9 1/16" x 1 5/16")

18.5"

46.5 cm x 28.5 cm x 5.5 cm

(18 5/16" x 11 1/4" x 2 1/8")

36.6 cm x 22 cm x 3.3 cm

(14 7/16" x 8 11/16" x 1 5/16")

19"

43 cm x 35 cm x 5.5 cm

(17" x 13 3/4" x 2 2/8")

32 cm x 25 cm x 3.3 cm

(12 5/8" x 8 13/16" x 1 5/16")

21.5"

53 cm x 32 cm x 5.5 cm

(21 3/4" x 14 /1/4" x 2 1/8")

38.6 cm x 23 cm x 3.3 cm

(15 3/16" x 9 1/16" x 1 5/16")
