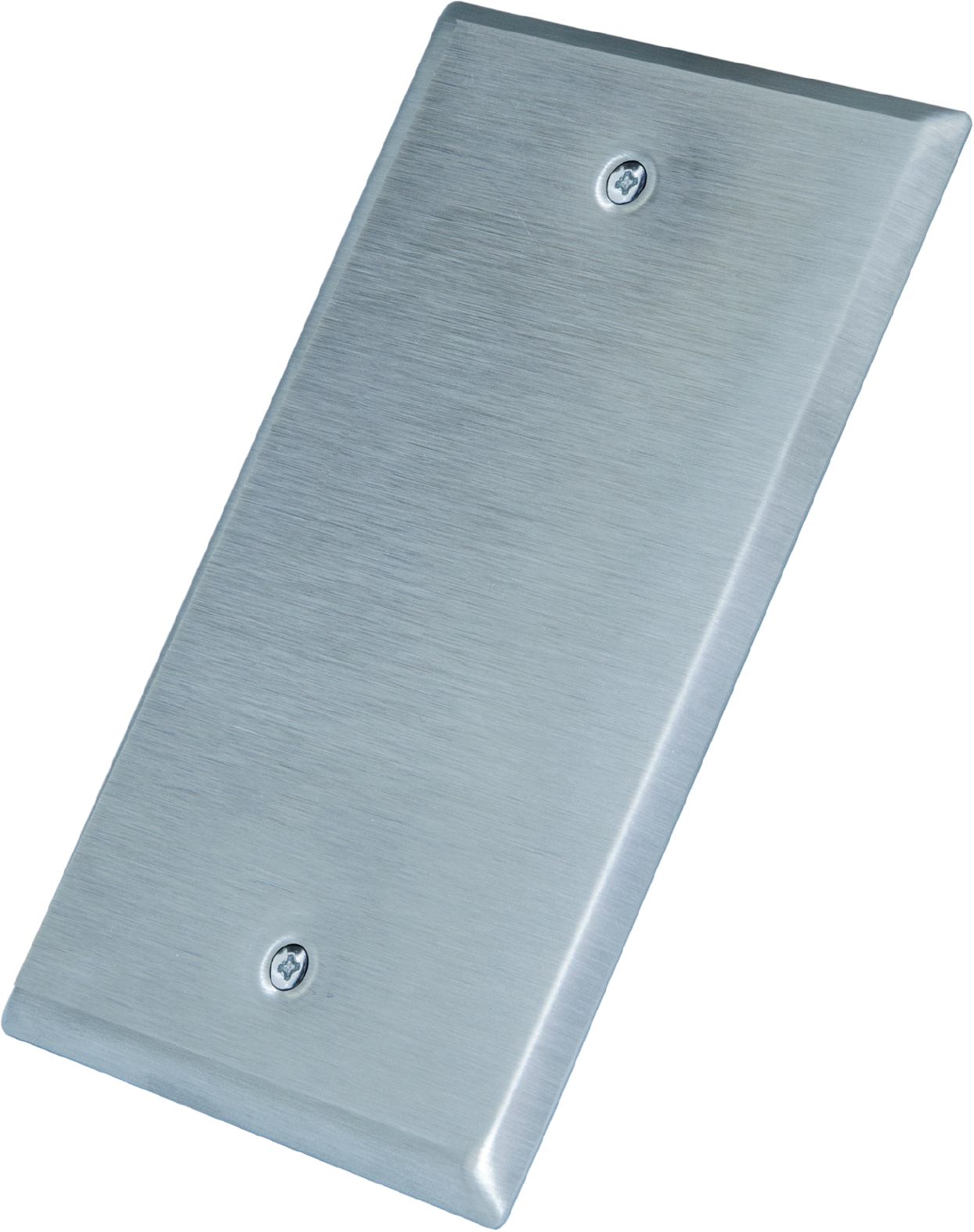

Aesthetic Design

• Tamper-proof stainless steel.
• Designed to install into a rectangular North American electrical box.

Connection and Addressing

• Configure SMART-Sensor network address using 4-pole DIP switch.
• Valid addresses are 1-16.
• Four wire connection.

Onboard Temperature Sensor

• Dedicated 10 kΩ thermistor.

Easy Programming

• Drag and drop points from the host controller onto the SMART-Net™ worksheet to configure.

Optional Override Button

• Use to override unoccupied mode.

Warranty

• 5 years.

Current Consumption from Controller

• 5 VDC at 5 mA.

Temperature Specifications

• 12-bit A/D converter.
• User calibrated to ±0.1 °C (0.18 °F) accuracy.
• Range: 0 °C to 50 °C (32 °F to 122 °F).

Override Button (-O Option)

• Brass, tactile on/off switch.

Wiring Terminals

• 14–26 AWG (2.08–0.13 mm²).
• Stranded or solid core.
• Copper conductors only.
• Low capacitance <82 pF/m (25 pF/f).

Weight

• 0.073 kg (0.16 lb).

Dimensions

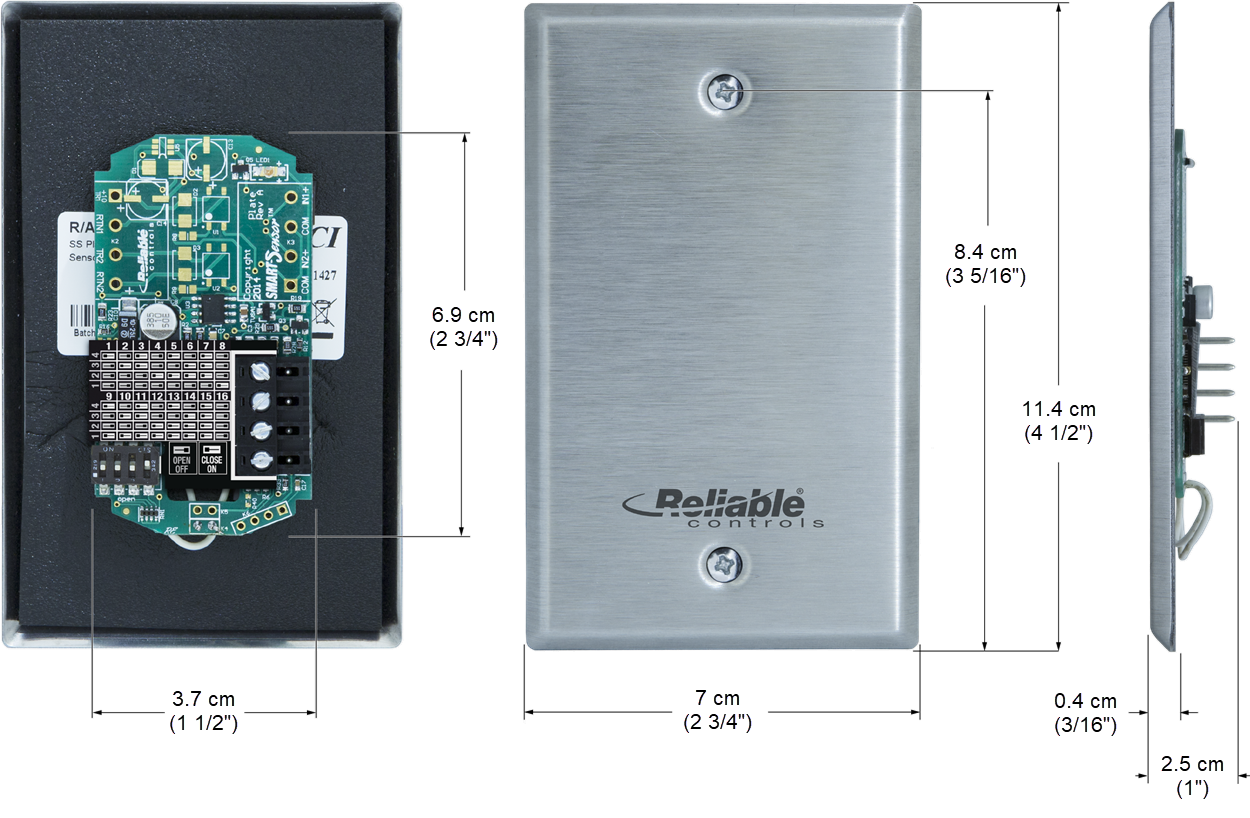

• Standard model:

  11.4 cm L x 7 cm W x 2.5 cm H

  (4 1/2" L x 2 3/4" W x 1" H).

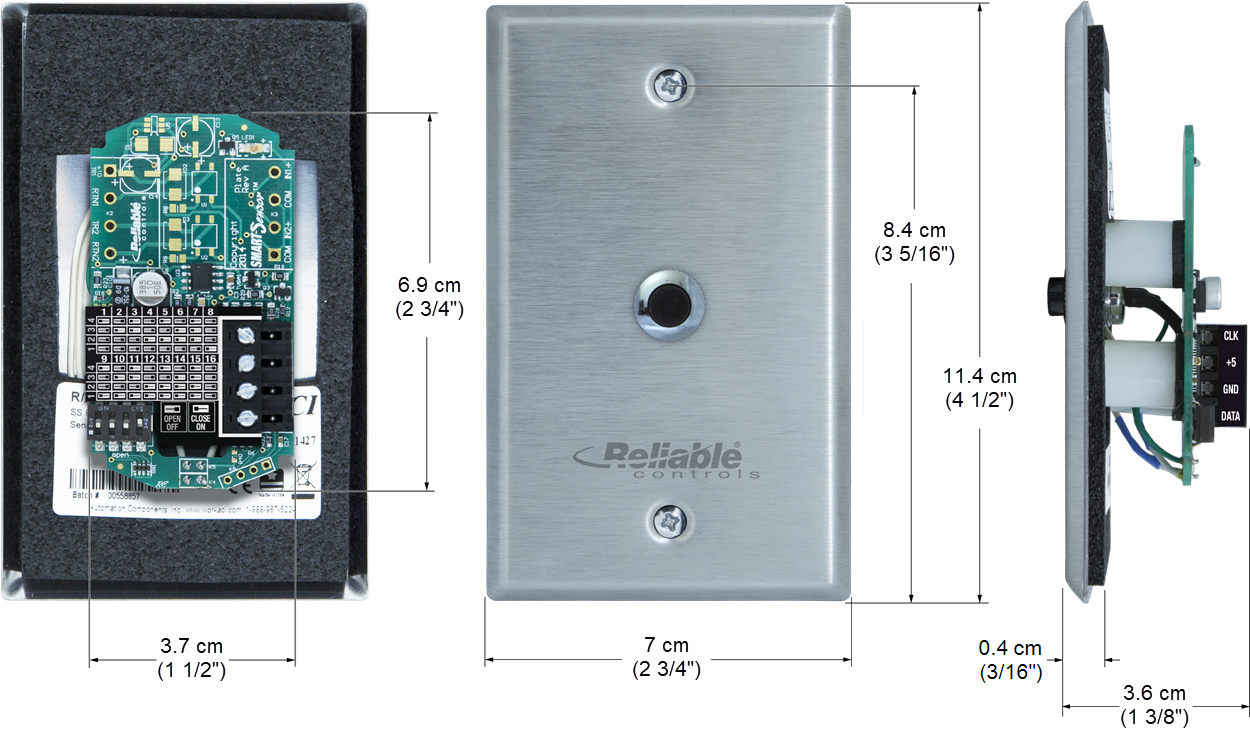

• Standard model with override button:

  11.4 cm L x 7 cm W x 3.6 cm H

  (4 1/2" L x 2 3/4" W x 1 3/8" H).

Ambient Limits

• Operating: 0 °C to 50 °C (32 °F to 122 °F).
• Shipping: 0 °C to 50 °C (32 °F to 122 °F).

Certification

• FCC CFR 47 Part 15/B.
