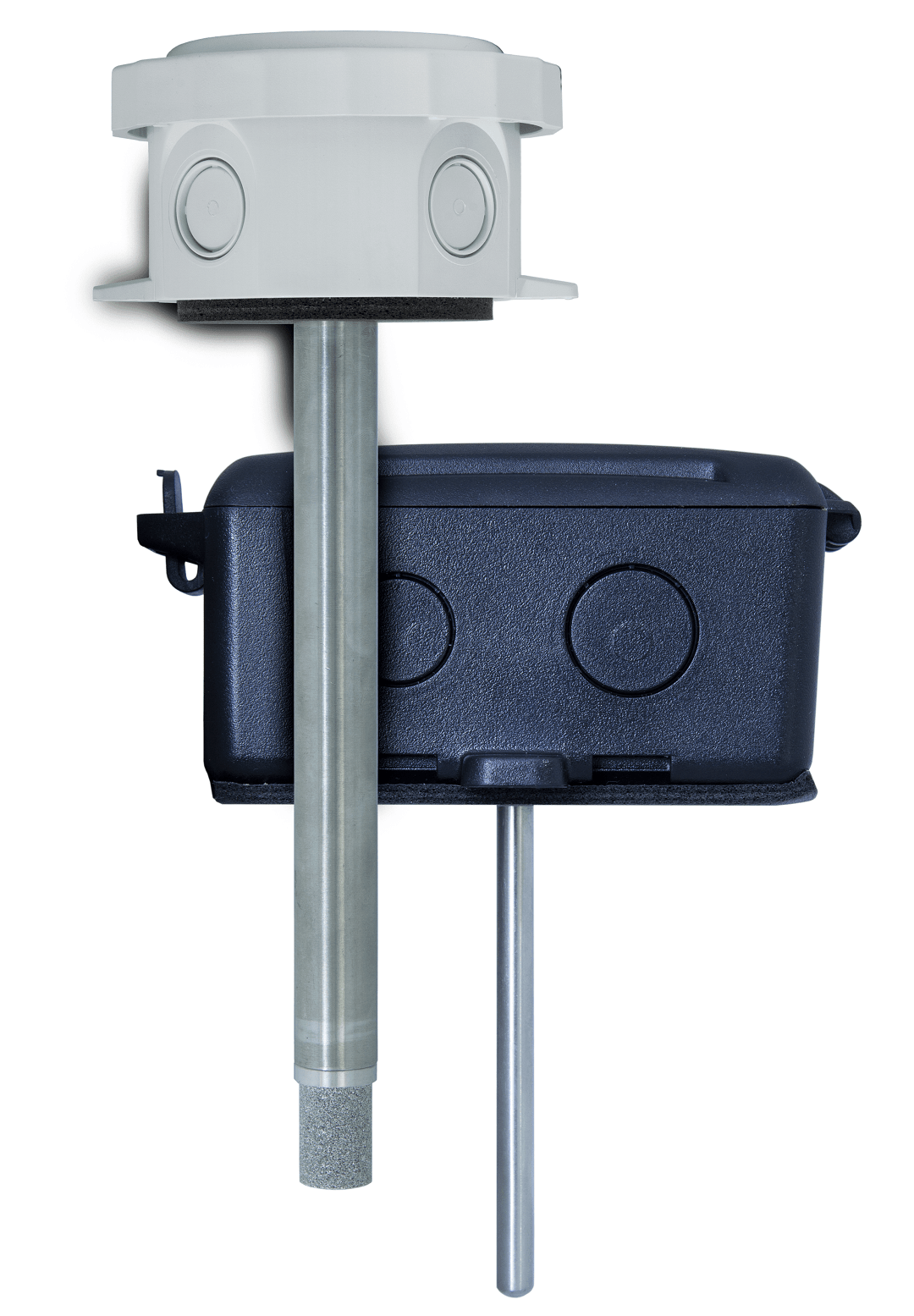

SMART-Sensor™ Duct
Programmable Sensor

The Reliable Controls SMART-Sensor Duct (SS-DUCT) is a versatile sensor that communicates digitally, saving hard inputs in your host controller.

Purchase Products

Product features

Simplified Mounting
  • Standard plastic device box with snap shut lid

Easy Programming
  • Simply drag and drop points from the host controller onto the SS worksheet to configure

Connection & Addressing
  • Configure network address of SS using 4 pole DIP switch
  • Valid addresses are 1-16
  • Easy 4 wire connection

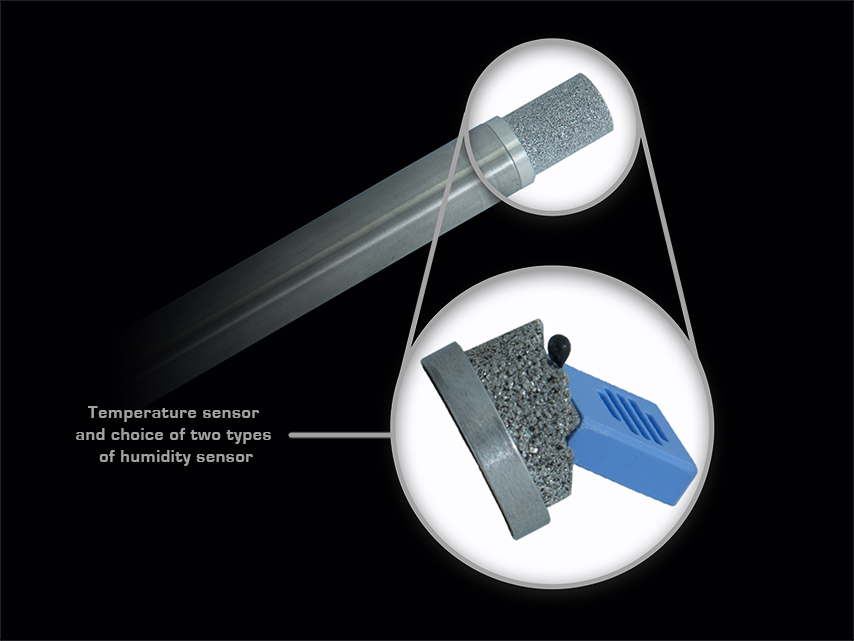

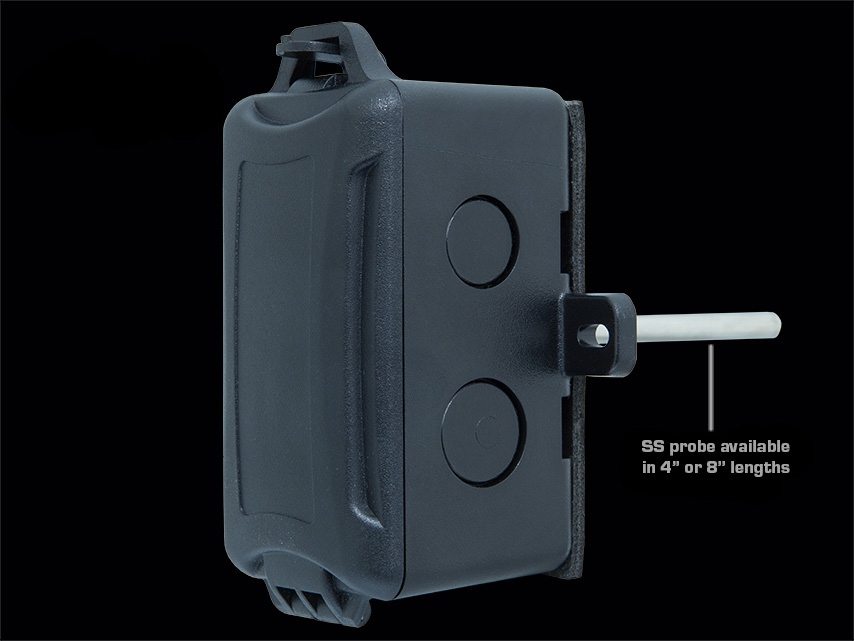

Duct Probe
  • Double encapsulated probe installed in plastic enclosure

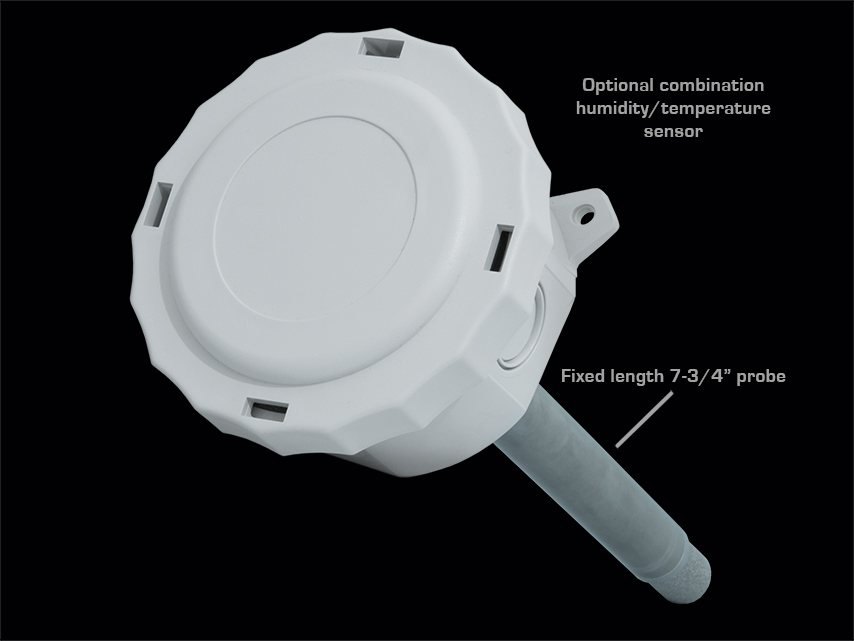

Optional Humidity
  • Accuracy ±2% from 10 to 95%
  • Resolution 0.1%
  • Repeatability 0.5%
  • Probe Length 7 3/4"

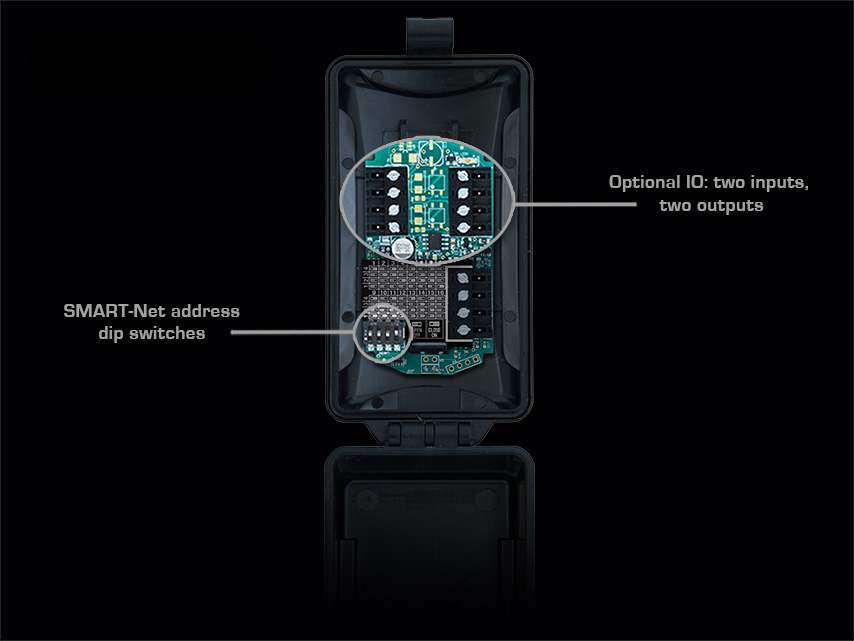

Optional I/O
  • Up to 2 thermistor or dry contact inputs,
    and up to 2 digital solid state relays 0.5A, 24VAC/VDC

Warranty
  • 5 years

Technical specifications

Supply Voltages (from controller)
  • SS-DUCT - 5 VDC @ 5 mA
  • -IO option adds 10 mA

Temperature Specifications
  • 12-bit A/D converter
  • User calibrated to ± 0.1 °C (0.18 °F) accuracy
  • Range, Probe: -40 °C to 120 °C
    (-40 °F to 250 °F)
  • Range, Using -IO: -40 °C to 120 °C
    (-40 °F to 250 °F)

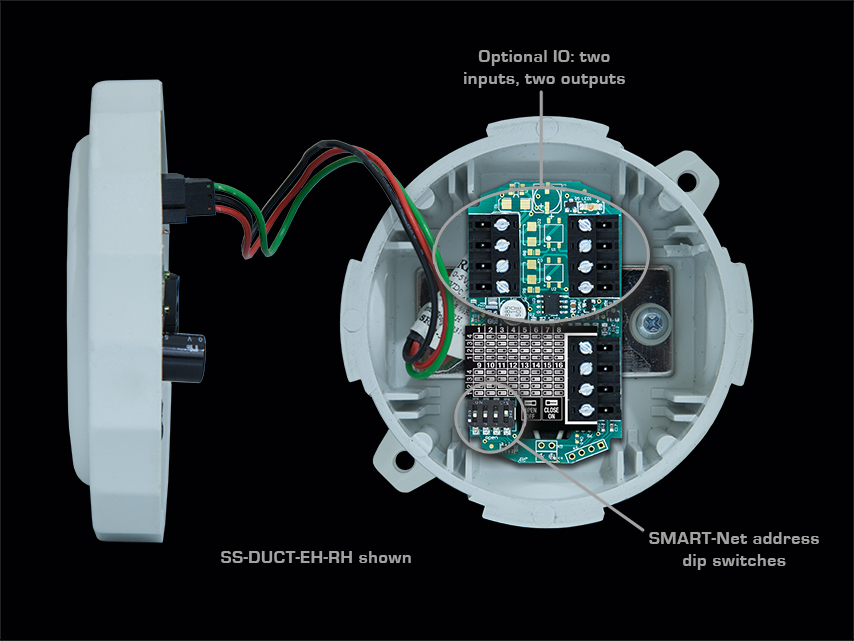

    SS-DUCT-EH-RH:
  • Range, Probe: -40 °C to 60 °C
    (-40 °F to 140 °F)

Humidity Range (for -EH-RH models)
  • Range, Probe: 10-90%
  • 0.1% resolution
    SS-DUCT-EH-RH2:
  • Accuracy ±2% 10-90%
    SS-DUCT-EH-RH3:
  • Accuracy ±3% 10-90%

Inputs
  • Dedicated temperature sensor
  • 2 thermistor or dry contact (on -IO models)

Outputs (for -IO models)
  • 2 digital solid state relays
  • 24VAC/24VDC @ 0.5A
Wiring Terminals
  • 14 to 26AWG
    (2.08 mm² to 0.13 mm²)
  • Stranded or solid core
  • Copper conductors only

Dimensions
    SS-DUCT-#-PB: (not including probe)
  • 12.2 cm L x 9.1 cm W x 6 cm H
  • (4 3/4" L x 3 5/8" W x 2 3/8" H)
    SS-DUCT-EH-RH:
  • 10.16 cm L x 10.9 cm W x 25.85 cm H
  • (4" L x 4 1/4" W x 10 3/16" H)

Weight
  • SS-DUCT-#-PB: 0.109 kg (0.24 lb.)
  • SS-DUCT-EH-RH: 0.318 kg (0.7 lb.)

Ambient Limits
    SS-DUCT:
  • Operating: -40 °C to 85 °C
    (-40 °F to 185 °F)
  • Shipping: -40 °C to 85 °C
    (-40 °F to 185 °F)
    SS-DUCT-EH-RH:
  • Operating: 0 °C to 50 °C (32 °F to 122 °F)
  • Shipping: 0 °C to 50 °C (32 °F to 122 °F)

Diagrams

Expansion Modules

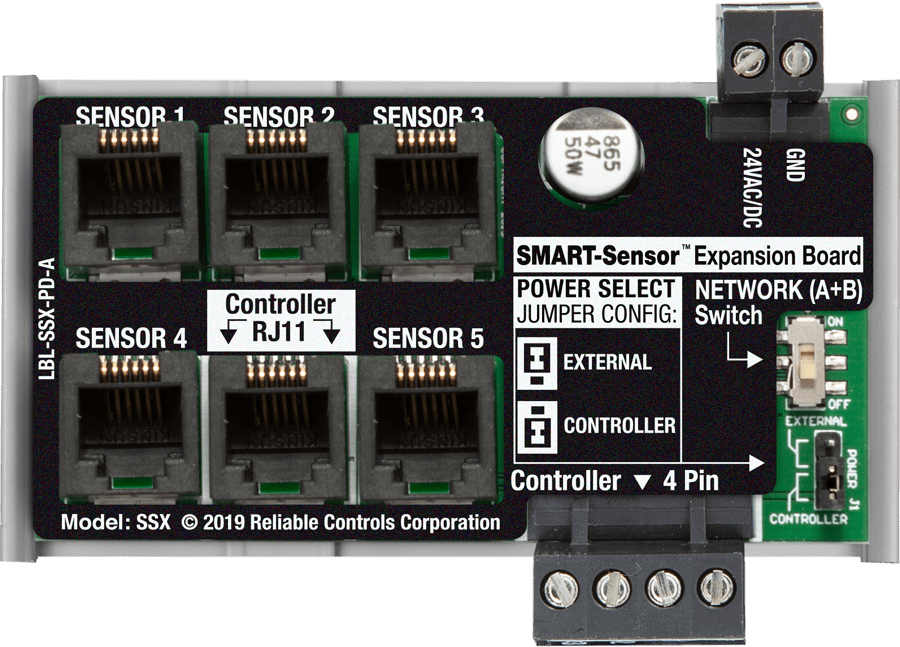

SMART-Net™ Expansion Board
SMART-Net™ Expansion Board
For SMART-Net™ devices that use terminal-block connections instead of modular RJ11 connections, the SMART‑Net Expansion Board maximizes both the number of SMART‑Sensor devices you can use and the combined SMART‑Net cable length you can connect to a host controller. Powered externally or by the host controller with 24 VAC or VDC, the SMART‑Net Expansion Board supplies power for up to 16 SMART‑Sensor devices and does not repeat the SMART‑Sensor signal, simplifying field wiring and providing a high degree of flexibility.
