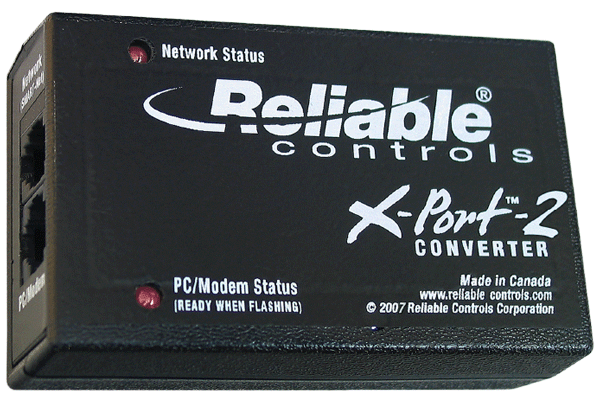

X-Port™ 2 Converter

The Reliable Controls X-Port 2 converter is a convenient communication device which provides an extra EIA-232 port to any MACH-System controller.

Purchase Products

Product features

Protocol
  • BACnet
    - MS/TP (EIA-485)
    - PTP (EIA-232)
    - Subordinate Proxy on MS/TP
  • Reliable Controls
    - Network (EIA-485/Token Bus)
    - PC & Modem (EIA-232)

Self-Powered
  • The X-Port-2 converter is self powered from the connected controller's SMART-Net port.

No Configuration Required
  • The X-Port-2 automatically determines network protocol and baud rate.
  • Communication to the workstation is fixed at 38400 baud.
OS Send
  • Allows OS Send to any networked controller except MACH-ProWebCom/Sys.

Connectivity
  • Connects directly to the RJ11 SMART-Net port of any Reliable Controls system controller.
  • Connects to the 4-pin SMART-Net and 2-Pin MS/TP terminals of any Reliable Controls system controller.

Warranty
  • 5 years.

Technical specifications

Supply Voltages
  • 5 VDC @ 30 mA from controller SMART-Net™ port.

Communications
  • One EIA-485 (SMART-Net), RJ11 port that communicates at 2400, 4800, 9600, 19200, 38400, or 76800 Kbps.
  • One EIA-232, RJ11 port that communicates at 38400 Kbps.
  • Two red LEDs for status indication.

Application Software
  • Compatible with RC-Studio 2.0 or later.
  • Compatible with RC-Toolkit 2.0 or later.
Dimensions
  • 9.65 cm L x 6.03 cm W x 2.29 cm H
    (3 3/4" L x 2 3/8" W x 7/8" H)

Ambient Limits
  • Operating: 0 ºC to 40 ºC
    (32 ºF to 104 ºF)
  • Shipping: -40 ºC to 60 ºC
    (-40 ºF to 140 ºF)
  • Humidity: 10% to 90%
    RH non-condensing

Diagrams

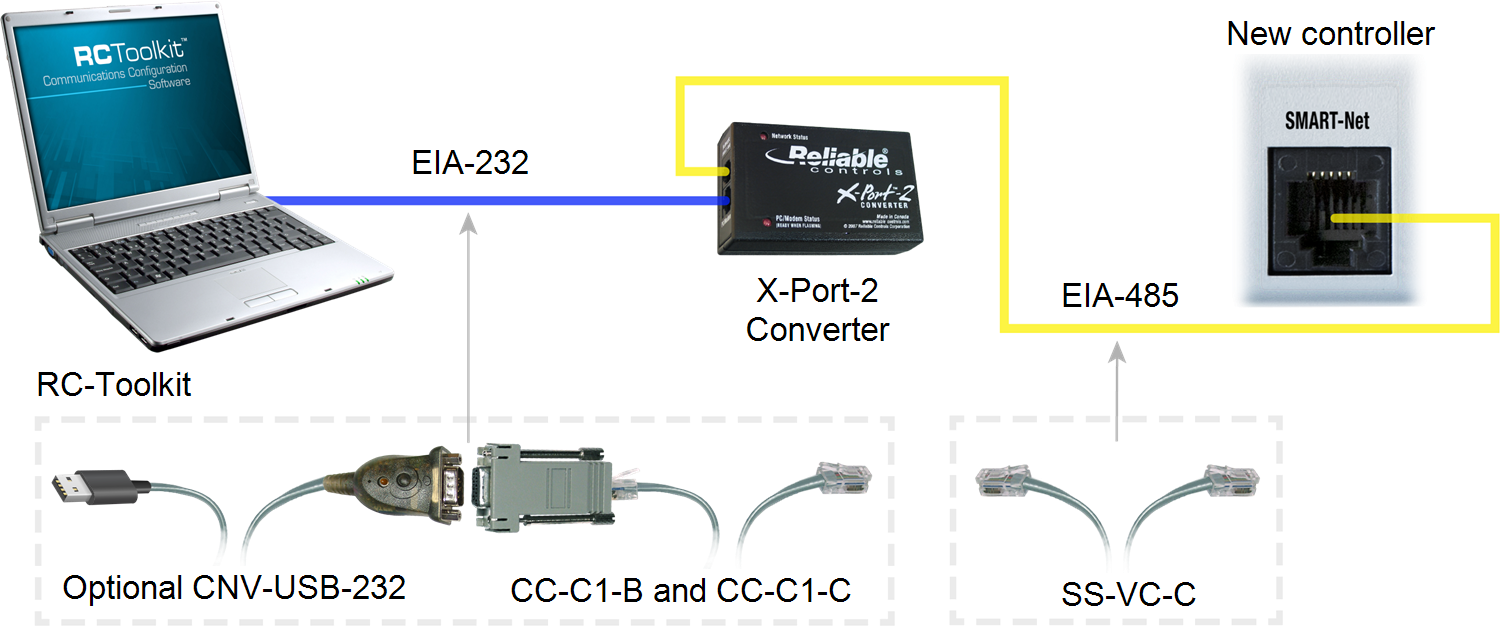

Direct Connection Diagram

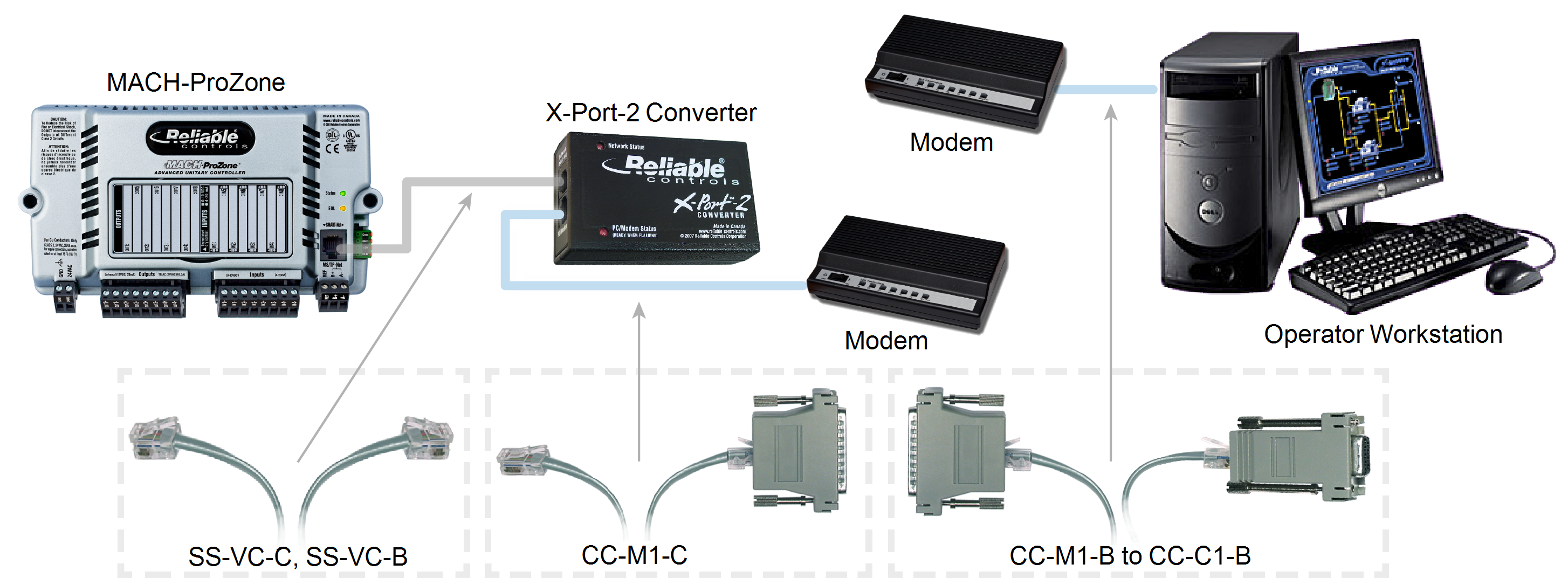

Remote connect to modem

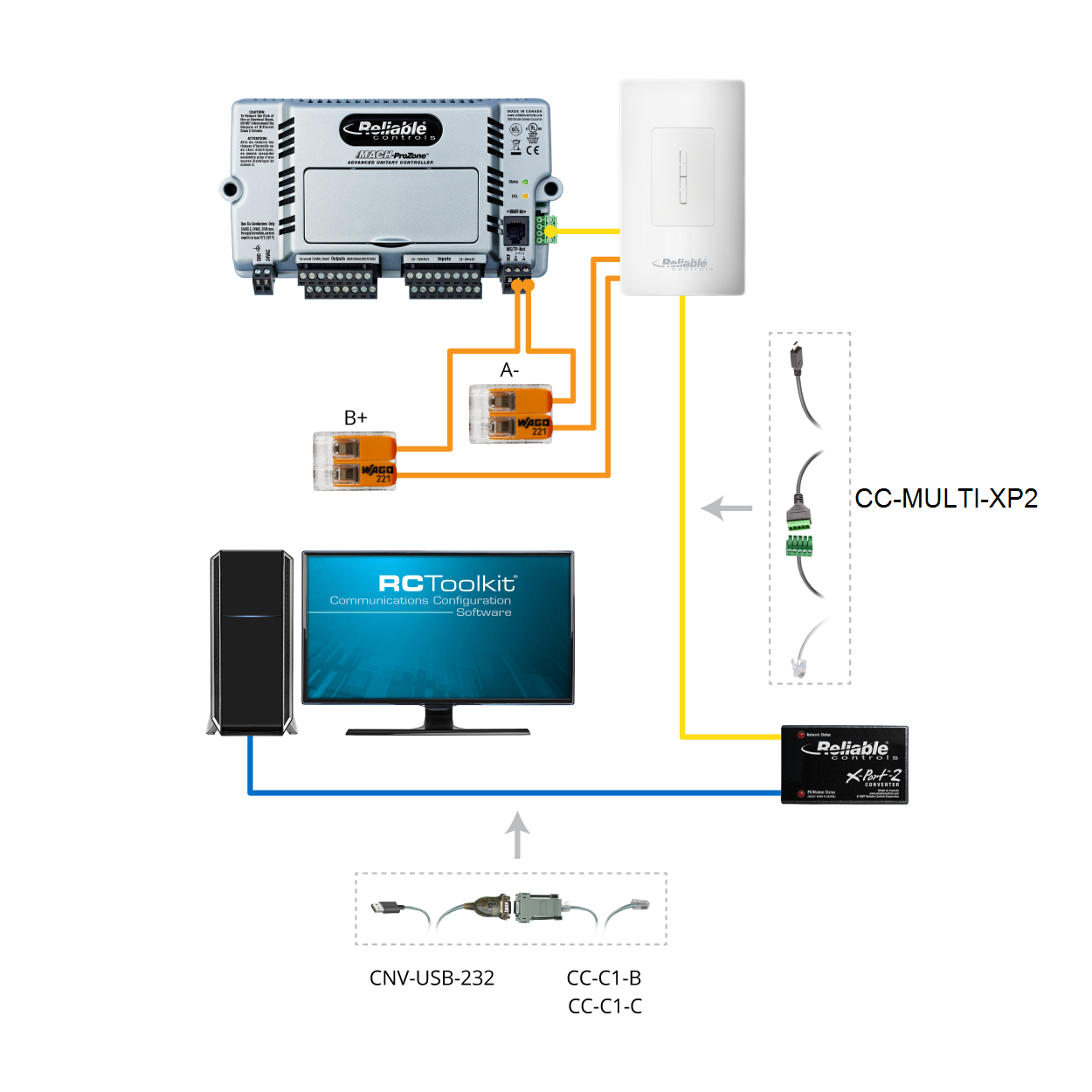

Direct connect using SMART–Sensor micro–USB jack–J option

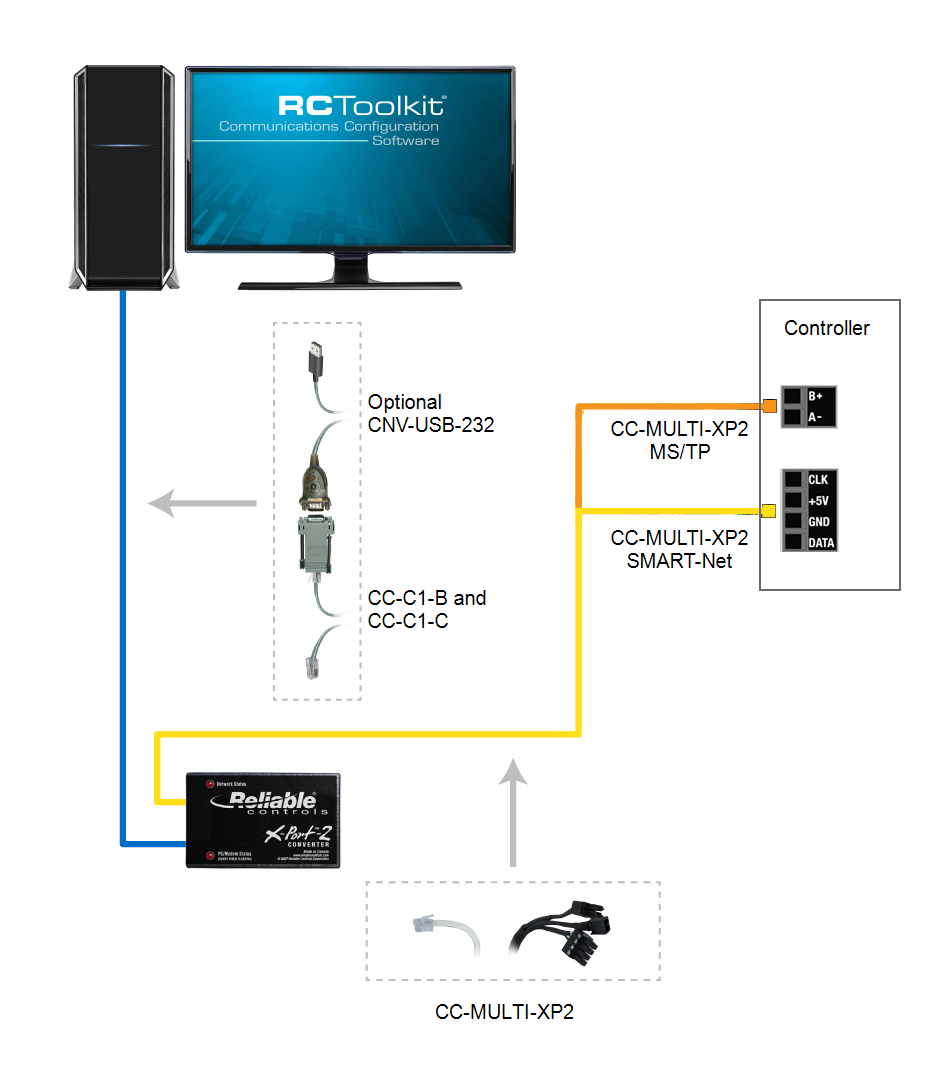

Direct connect using MS/TP connection
