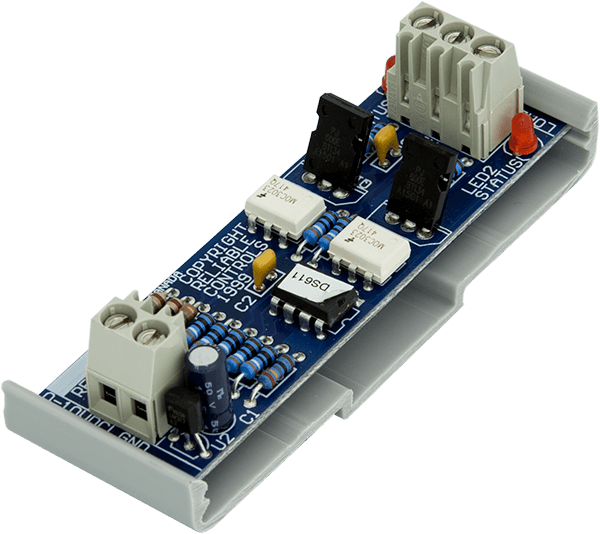

TRIAC Module
TRC-FP / DS

Double-up on the output capacity of your universal outputs using the Reliable Controls TRIAC modules. These low cost and convenient to install modules convert a single universal output into two TRIAC outputs.

Purchase Products

Product features

AC Load Control
  • Floating point control
  • 2-stage control
  • Zero crossing technology
  • LED status display
  • Snap track mounted
Warranty
  • 5 year

Technical specifications

Supply Voltage
  • From controller

Input to TRC-FP
  • 0-10 VDC 14 mA
  • 0 VDC - both loads off
  • 4.5 to 6 VDC Load 1 on, Load 2 off
  • 8 to 10 VDC Load 1 off, Load 2 on

Input to TRC-DS
  • 0-10 VDC 14 mA
  • 0 VDC - both stages off
  • 4.5 to 6 VDC Stage 1 on, Stage 2 off
  • 8 to 10 VDC Stage 1 on, Stage 2 on
Outputs   (both TRC-FP and TRC-DS)
  • Voltage: 10 to 30 VAC
  • Current: 20 mA (minimum) 1A rms (maximum)
  • Zero crossing TRIAC switch

Dimensions
  • 8.5 cm L x 3 cm W x 2.6 cm H (3 3/8" L x 1 1/8" W x 1" H)

Weight
  • 27.5 g (1 oz.)

Ambient Limits
  • Operating: -18 ºC to 49 ºC (0 ºF to 120 ºF)
  • Shipping: -40 ºC to 60 ºC (-40 ºF to 140 ºF)
  • Humidity: 10% to 90% RH non-condensing
