Building Performance Reporting Software

Extract intelligence from your building data and discover actionable insights to improve your operational efficiency. Identify, evaluate, and rank energy-wise and comfort-balancing opportunities to support your continuous optimization strategy. RC-Reporter brings clarity to building performance analytics with readable, reliable, and rational reports, delivered automatically by email or integrated directly into your building control system.

Consulting Specifying Engineer 2016 Product of the Year Finalist

Purchase Products


Flexible Report Generation

  • Build custom reports quickly by selecting and configuring Report Components.
  • Select data and ranges from multiple RC-Archive® databases or import data from MS-Excel spreadsheets.
  • Report charts can be configured to be displayed in RC‑Studio® system groups.

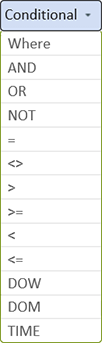

  • Run simple and complex queries to refine data used in Report Components.
  • Apply standard math functions, transforms, and operators to data.
  • Saved reports are stored securely on the RC-Reporter server.
  • Reports can be easily exported to, and imported from other RC-Reporter installations.
  • Reports can be exported as a PDF.

Report Components

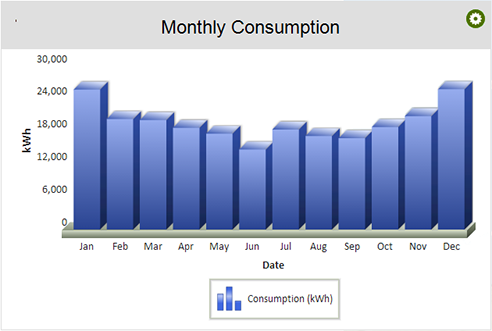

  • Date Range – plots data against time with full flexibility of the sample period.

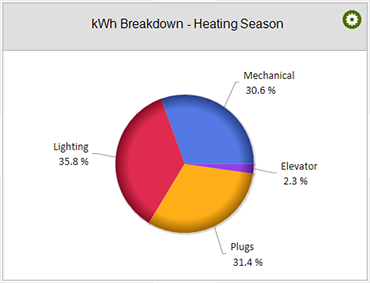

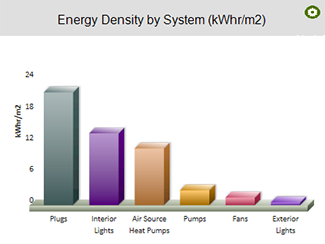

  • Contribution – compares values for a configurable period, either as a pie chart or as a column chart.
  • Correlation – identifies how one point influences others using a scatter or column/line diagram.
  • Profile – compares data from different time periods to identify patterns and anomalies.

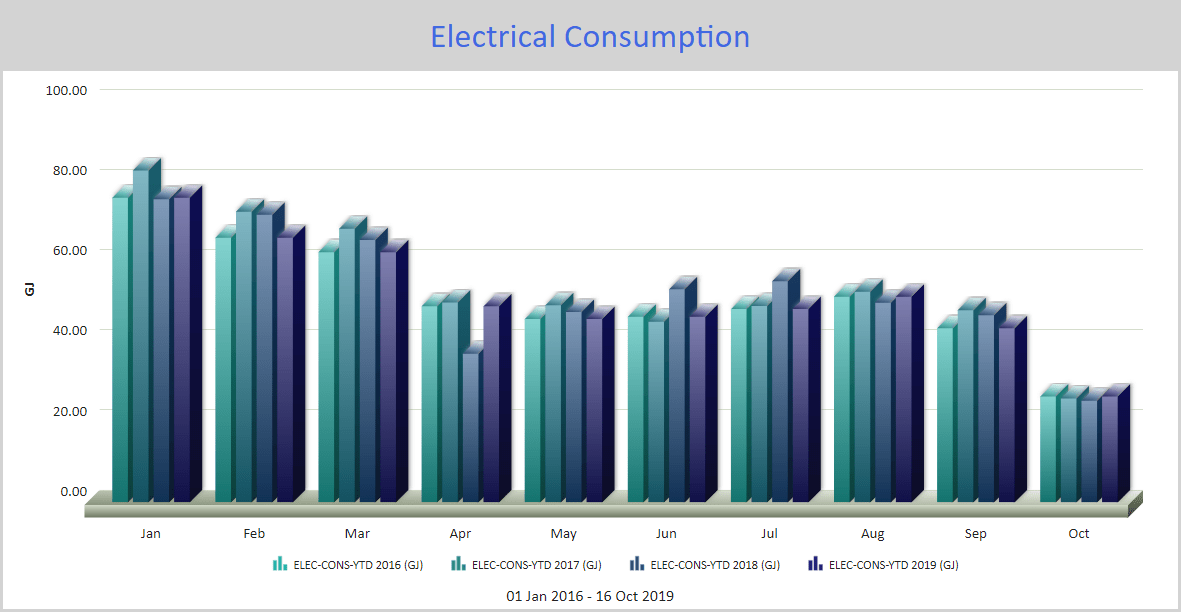

  • Periodic - compares multiple periods of time against each other to observe changes in behavior and their impact.

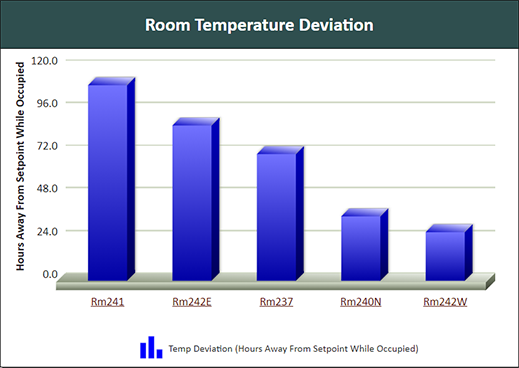

  • Ranking – helps you analyze the highest and lowest values within a Data Set, such as the top ten hottest/coldest rooms or top ten pieces of equipment with the greatest demand for electricity.
  • Raw Data – displays a table of raw timestamps and values for a selected log over a configurable date range.
  • Number Editor – provides an interactive control for adjusting a number value in a report (e.g. change the price of energy and see the resulting monthly cost impact).
  • Text – opens a formatted text box to be entered using a WYSIWYG text editor. Adjust color, size, alignment, style of font and embed links to other reports or any other web page.
  • Image – allows a GIF, JPG, or PNG image to be uploaded into the report (e.g. company logo). Images are scaled to fit, preserving aspect ratio, and centered within the component boundaries.

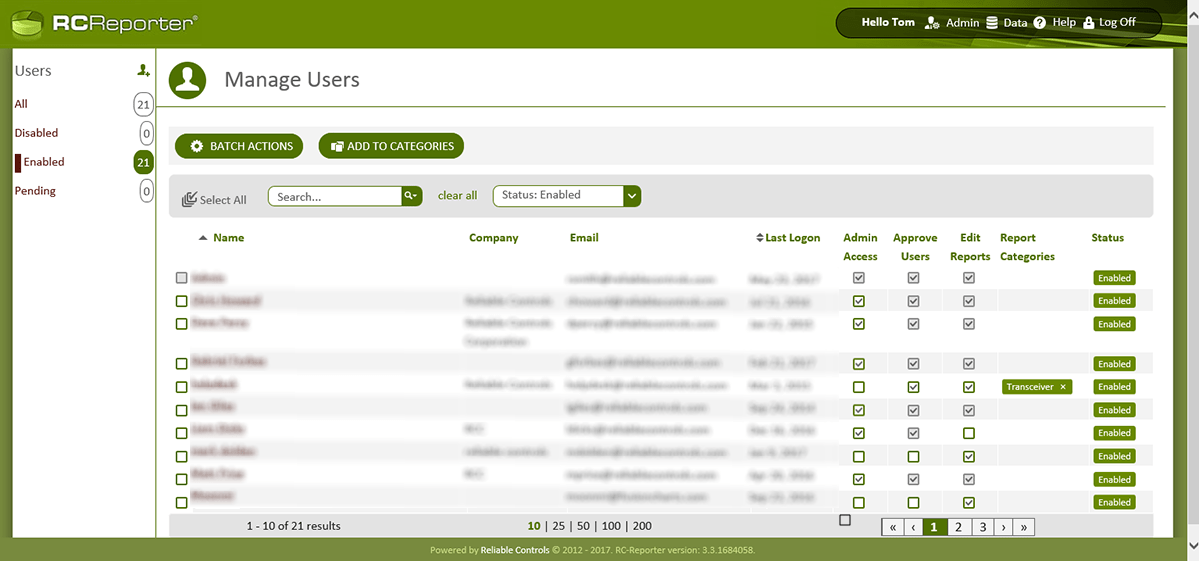

Efficient User Administration

  • Add, disable, and re-enable user accounts individually.
  • Support for Microsoft Authentication / Active Directory integration.
  • Users can reset their own passwords without admin intervention.
  • Designate shared reports to be read-only or configurable, by individual users.

Powerful Data Source and Point Management

  • Quickly identify, locate, and connect to any number of RC-Archive instances.
  • Automatically displays all available databases for access.
  • Flexible point browsing user-interface includes filtering by name mnemonic, unit, database, and more.
  • Categories allow points to be organized and tagged easily and efficiently.
  • External Files feature allows 3rd party data to be imported using CSV formatting.

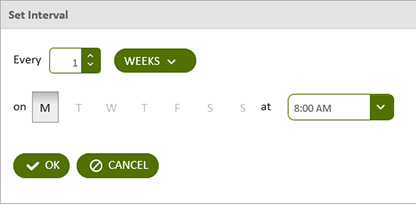

Distribution Schedules

  • Share or schedule report distribution to any number of authorized users by broadcasting report links or PDFs to user-defined email recipient lists.

Data Sets

  • Create and save a named list of filtered data which dynamically updates and easily allows ranking and benchmarking analysis.

Identifier Selector

  • Use this drop-down tool to select a Data Set point which refreshes the non-Ranking components within a report.

Sample Reports

  • Customize the sample reports that ship with RC-Reporter to quickly create your new professional-looking reports.

License and Updates Subscription

  • Licensing is limited by the number of unique, active points used in reports.
  • A subscription for 12 months of updates is included with the initial license purchase.
  • Software continues to function regardless of subscription state.
  • No penalty to renew expired subscriptions.
  • Free trial version allows up to five unique points to be used for evaluation purposes.

Tech Specs

Recommended Server Requirements

  • All hardware rated for continuous server operation.
  • Intel Xeon E3 3.10 GHz or better.
  • Four cores must be available for RC-Reporter*.
  • x64 system architecture.
  • 16 GB RAM.
  • Hardware RAID in a redundant performance configuration with 10K RPM SAS drives or better.
  • 10 GB hard disk space free, or higher, appropriate for archiving needs.
  • Internet connection for software download and installation.
  • Gigabit Network Interface Card (server quality).
  • Windows Server 2012 R2 Standard or greater.
  • Microsoft SQL Server 2012 Express (for databases larger than 10GB, Microsoft SQL Server 2014 [x64] or greater).
  • RC-Archive® 3.0 or higher (purchased separately).
  • Dedicated USB 2.0 Port for RC-Key licensing (soft license optional).
  • Maximum Configuration: 25 simultaneous users per server.

* When multiple products are installed on a single computer: two cores per product, plus at least two cores for the SQL database.

Browser Support

  • Chrome (recommended) .
  • Internet Explorer 11+.

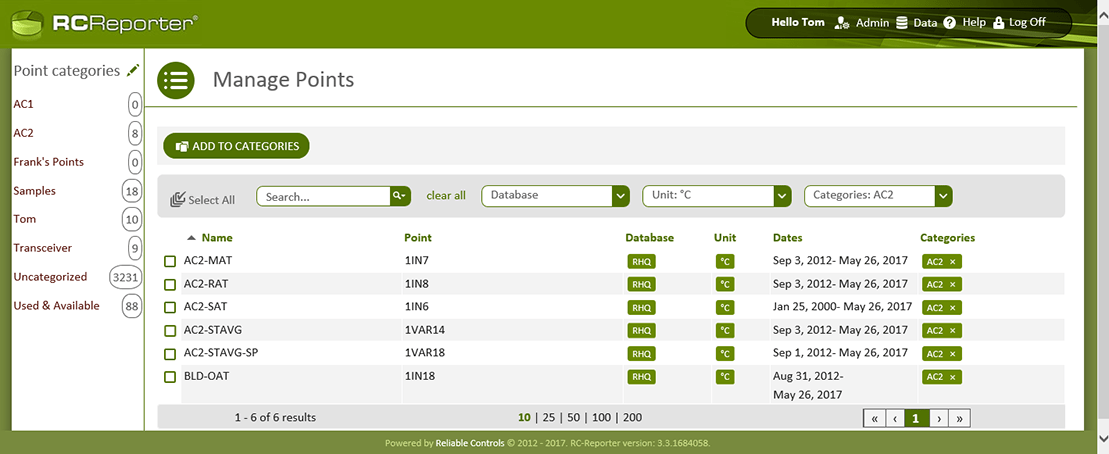

Screen Captures
