SMART-Sensor™ EnOcean Accesspoint
Wireless Transceiver

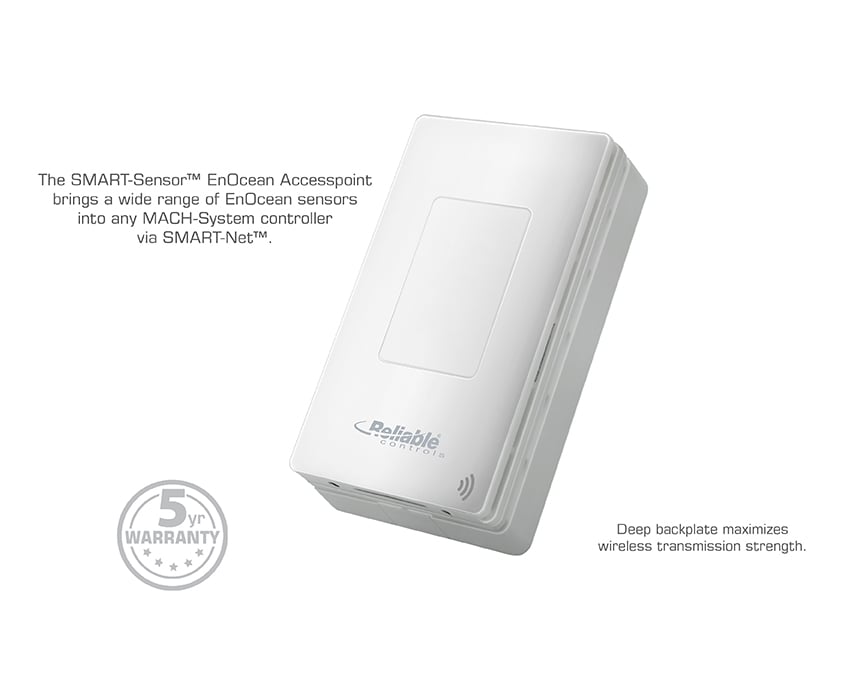

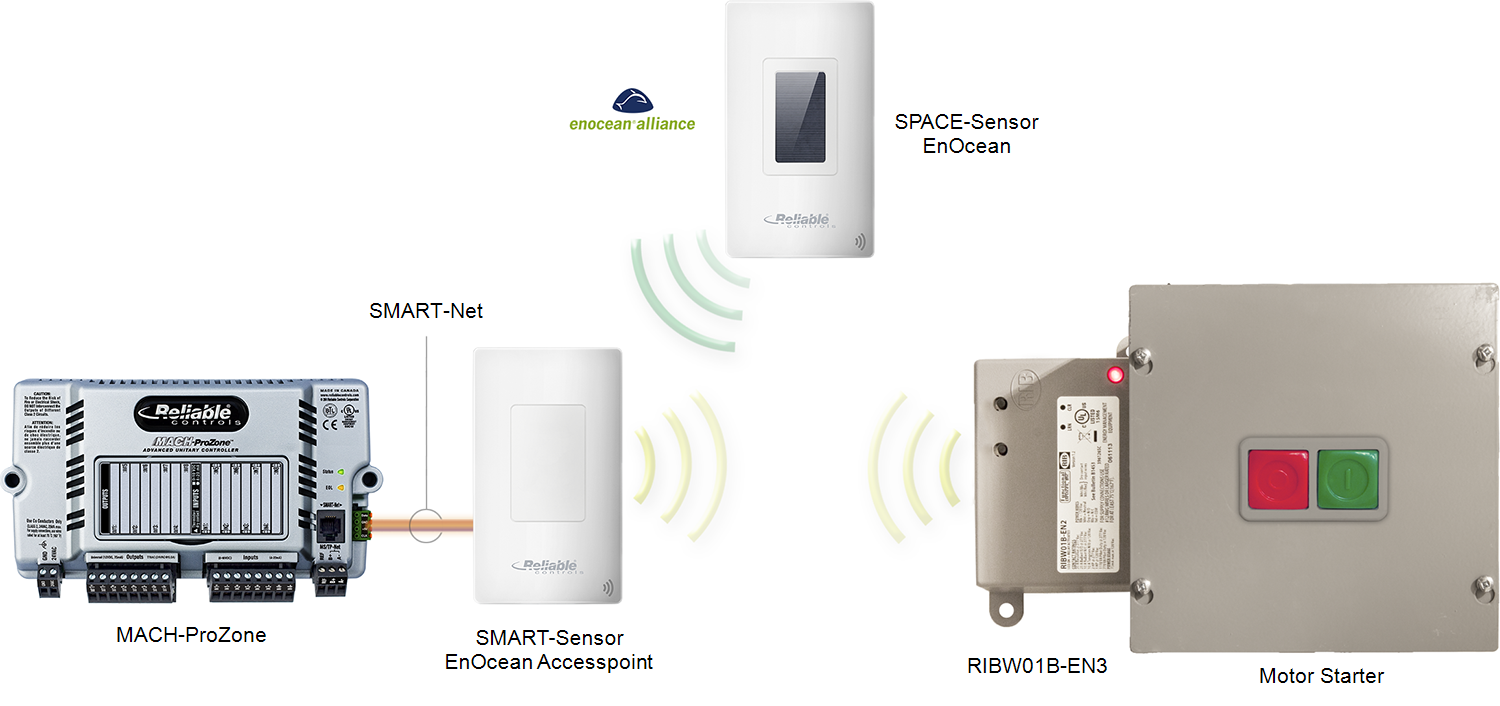

Aesthetically designed to complement any decor, the Reliable Controls SMART‑Sensor™ EnOcean Accesspoint opens the door for integration of a wide variety of EnOcean wireless sensors and output devices with the Reliable Controls system.

Purchase Products



Product features

EnOcean Enabled

  • Repeater, software configurable.
  • Compatible with EnOcean Equipment Profiles (EEPs) 4BS,* 1BS, and RPS.
  • EnOcean is the wireless standard for sustainable buildings.

* For a full list of supported EEPs, refer to the SMART-Sensor EnOcean Accesspoint User Guide.

Repeater

  • Software-selectable repeater function.

SMART-Net

  • Communicates through the SMART‑Net port on Reliable Controls system controllers.**
  • Maximum of eight SMART‑Sensor EnOcean Accesspoint devices per SMART-Net.
  • Occupies two traditional SMART‑Sensor addresses.

** Transmit functionality available only on MACH-Pro series products.

Aesthetic Design

  • Smooth contoured lines.

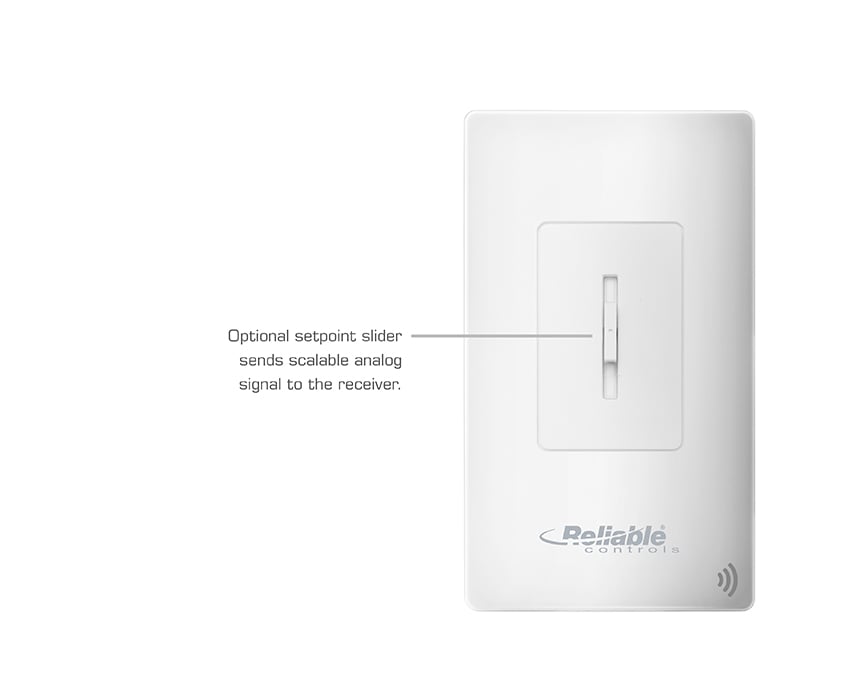

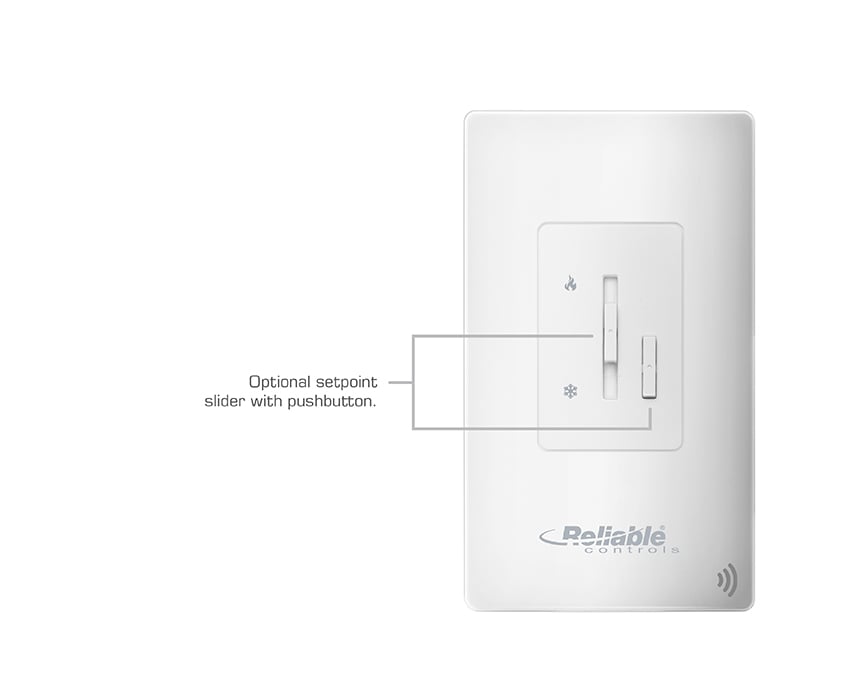

Setpoint Slider on -S Model

  • Sends scalable analog signal to receiver.

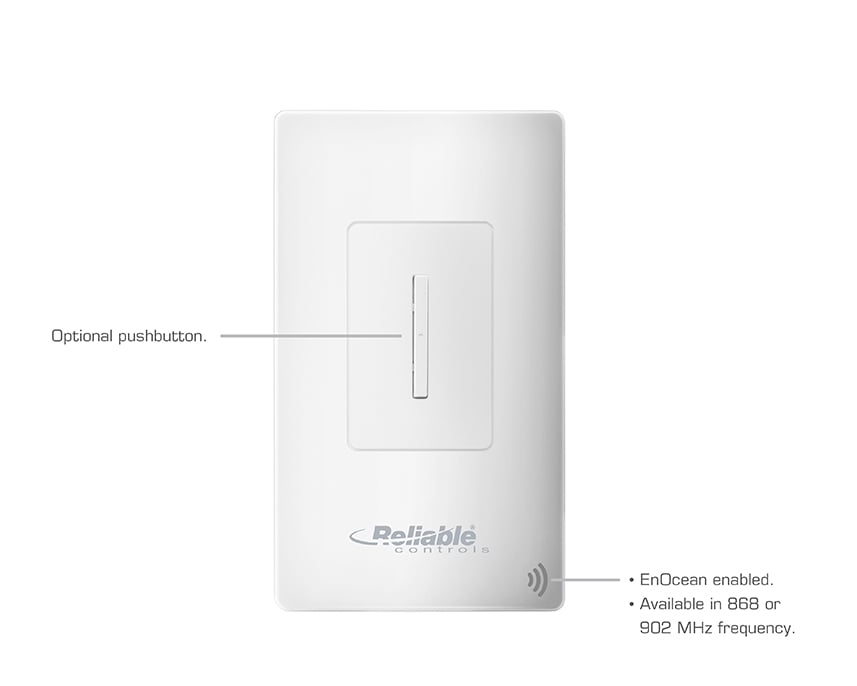

Pushbutton on -O Model

  • Sends momentary on/off signal to the receiver.
  • Soft rubber button design.

868 MHz ASK Radio on -868 Model

  • Uses amplitude-shift keying (ASK) radio.

902 MHz FSK Radio on -902 Model

  • Uses frequency-shift keying (FSK) radio.

Programming

  • Dedicated temperature and override points.
  • 18 user-programmable points from EnOcean devices. Some sensors take multiple points.
  • Learn button scans all EnOcean devices within range.

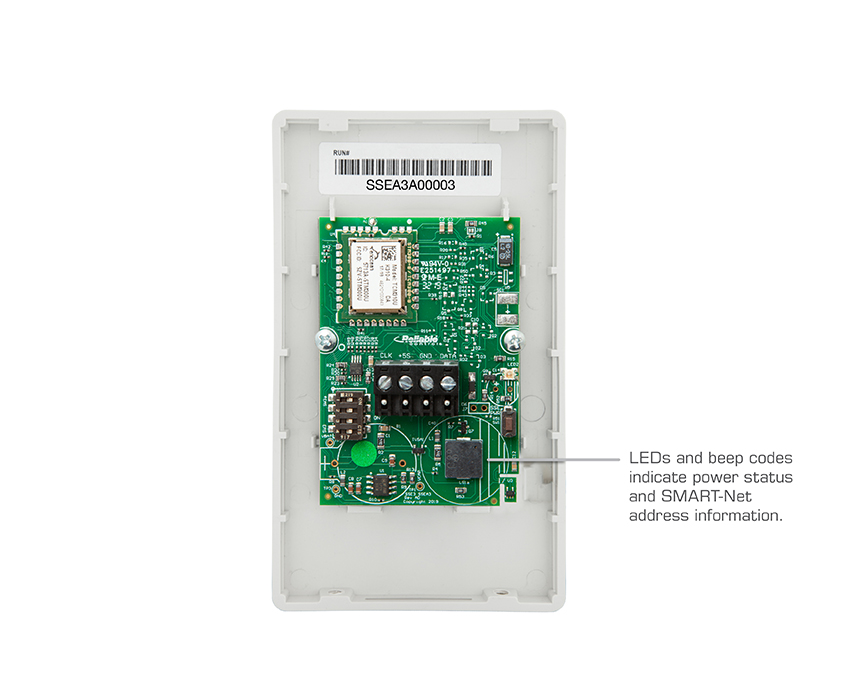

  • LED status for learned devices.

Connection and Addressing

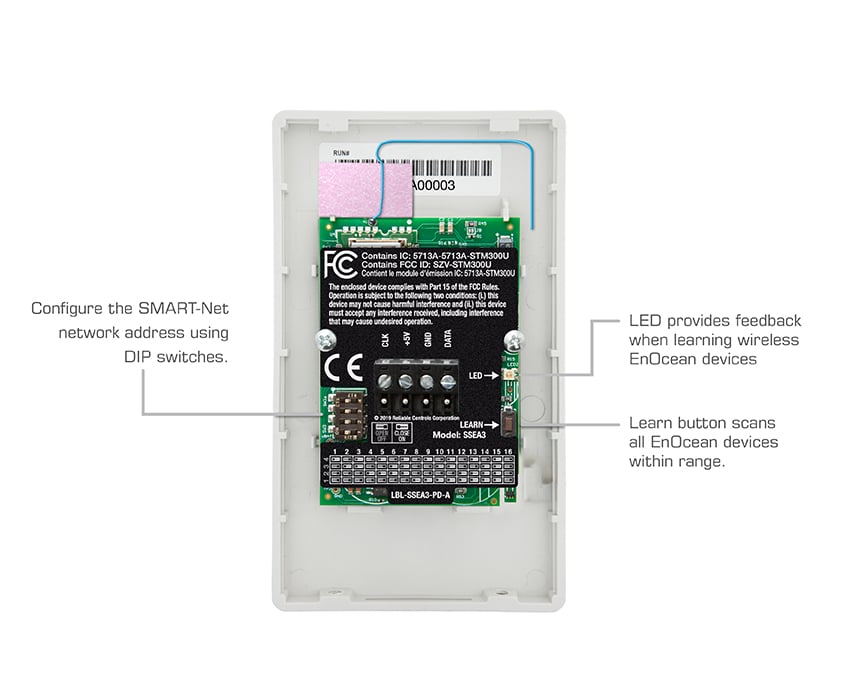

  • Configure the SMART-Net network address using DIP switches.
  • Valid addresses are 1–15.
  • Easy four-wire connection.

Signal Strength Mode

  • Indicates received signal strength in RC-Studio.

Warranty

  • 5 years.

Certification

  • FCC CFR 47 Part 15 Class B.
  • WEEE.

Technical specifications

Supply Voltage from Controller

  • SMART-Net: +5 VDC @ 35 mA.

Transceiver

  • Frequency: 868 MHz or 902 MHz.
  • Data rate/modulation type: 125 Kbps/ASK or FSK.
  • Receiver sensitivity (@ 25°C) typically -98 dBm.
  • Conducted output power typically 7.5 dBm.
  • Radio regulations:
    • R&TTE EN 300 220 (STM 300).
    • FCC CFR 47 Part 15 (TCM 300C).

Transmission Range

  • 30 m (100 ft.) line of sight.***

*** Theoretical maximum limit. May be less on site.

Wiring Terminals

  • Rising cage screw mounted.
  • 14–26 AWG (2.08–0.13 mm2).
  • Stranded or solid core.
  • Copper conductors only.

Temperature Specifications

  • 10-bit linear active thermistor.
  • Range: -8°C to 39°C (18°F to 102°F).
  • ±0.05°C (0.09°F) resolution.
  • User calibrated to ±0.1°C (0.18°F) accuracy.

Button

  • Optional tactile override button.

LEDs

  • Red and green LEDs mounted on the circuit board for programming status and feedback.

Piezo Buzzer

  • 2 kHz buzzer for programming status.

Slide Potentiometer

  • 0%–100% setpoint slider.

Dimensions

  • 12 cm L x 7 cm W x 3 cm H
    (4 3/4" L x 2 3/4 " W x 1 3/16" H).

Weight

  • 0.086 kg (0.19 lb).

Ambient Limits

  • Operating: -8°C to 39°C (18°F to 102°F).
  • Shipping: -40°C to 60°C (-40°F to 140°F).
  • Humidity: 10%–90% RH noncondensing.
