Power Supply VDC

The Reliable Controls PS-VDC is a compact variable DC power supply designed to power peripheral devices such as pressure transducers, level transducers, and gas monitors.

Purchase Products

Product features

  • Onboard trimmer/potentiometer

  • 0-24 VDC output power

  • Onboard fuse
  • Easy snap-track mounting

  • Half-wave rectified design

Technical specifications

Maximum Input Voltage
  • 26 VAC

Maximum Output Voltage
  • 25 VDC

Output Current
  • 0.12 A @ 10 VDC
  • 0.13 A @ 12 VDC
  • 0.27 A @ 24 VDC

Dimensions
  • 8.3 cm L x 7.0 cm W x 5.0 cm H
    (3 1/4" L x 2 3/4" W x 2" H))

Mounting
  • Finished board
    8.3 cm L x 7.0 cm W
    (3 1/4" L x 2 3/4" W)
  • Standard 8.25 cm (3 1/4")
    snap track mounting
Weight
  • 0.10 kg (0.22 lb)

Ambient Limits
  • Operating:
    -20 ºC to 55 ºC
    (14 ºF to 130 ºF)
  • Shipping:
    -40 ºC to 60 ºC
    (-40 ºF to 140 ºF)
  • Humidity:
    10% to 90%
    RH non-condensing

Warranty
  • 5 years

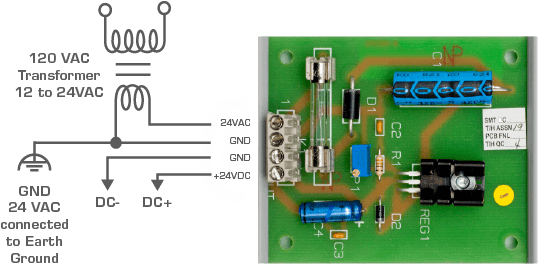

Diagrams
