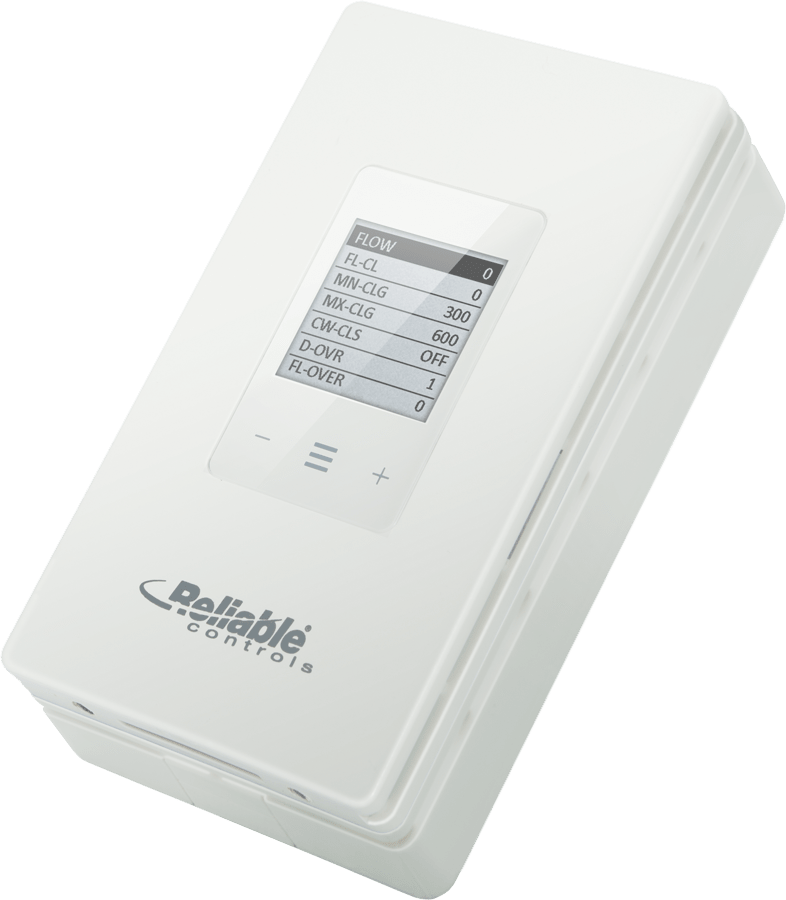

SETUP-Tool

The SETUP-Tool is a powerful, microcomputer-based interface required to configure the MACH-Air and the MACH-Zone.

Locate a Dealer

Features

Pre-Assigned Button Functions
  • Address - Used to set address number of panel
  • Baud - Used to set network baud rates toggle bauds with up down arrow buttons
  • Subnet - Used to toggle between subnet or main-net
  • Last - Sets panel to last panel on network
  • BACnet - Use to toggle between BACnet or Reliable Controls protocol
  • Update - Sends configuration to panel

Mode Button
  • Switches between flow and MSET functions
  • Uses six wire quick connector RJ-11 cable
Self Powered
  • The SETUP-Tool is powered from the connected controller

Configuration
  • Allows panel configuration without a PC connection
  • Valid addresses 1 through 16

Warranty
  • Industry Recognized 5 Year

Tech Specs

Supply Voltage (from controller)
  • SSL - 5 VDC @ 5 mA
  • SSL-IO - 5 VDC @ 15 mA

Display
  • Four 0.6" digits, Six 0.3" characters
  • Six icons: Auto, Manual, Cool, Heat, Fan, and Fan-Speed
  • Display area 36mm x 36mm (1.4" x 1.4")

Temperature Range
  • 0 ºC to 40 ºC (32 ºF to 104 ºF)

Temperature Specifications
  • 12-bit A/D Converter
  • 0.1 ºC (0.18 ºF) resolution
  • 1.0 ºC (1.8ºF) accuracy for 10 ºC to 35 ºC (50 ºF to 95 ºF)

Humidity Range (for H models)
  • 10-90% range 0.1% resolution
  • ± 1.8% RH accuracy
  • replaceable sensing element

Buttons
  • 3 custom silicon rubber buttons
  • Button functions: select, plus, and minus
Inputs
  • Dedicated temperature sensor
  • 2 thermistor or dry contact (on I/O models)

Outputs
  • 2 digital triac (on I/O models)
  • 24 VAC @ 0.5 A

SMART-Network
  • 16 SMART-Sensors per MACH-Global and MACH2
  • 8 SMART-Sensors per MACH1
  • 4 SMART-Sensors per MACH-Zone, MACH-Air and MACH-Vision

Dimensions
  • 12 cm L x 7.0 cm W x 2.25 cm H (4.72" L x 2.75" W x 0.89" H)

Weight
  • 0.09 kg (0.195 lb.)

Ambient Limits
  • Operating: 0 ºC to 40 ºC (32 ºF to 104 ºF)
  • Shipping: -40 ºC to 60 ºC (-40 ºF to 140 ºF)
  • Humidity: 10% to 90% RH non-condensing

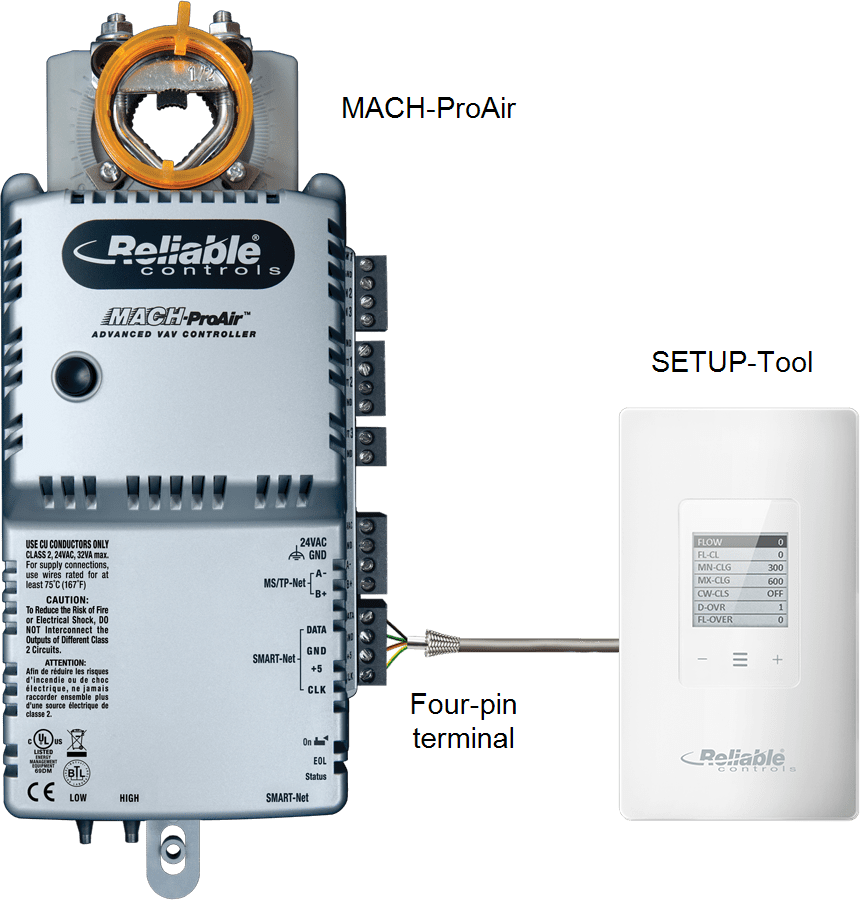

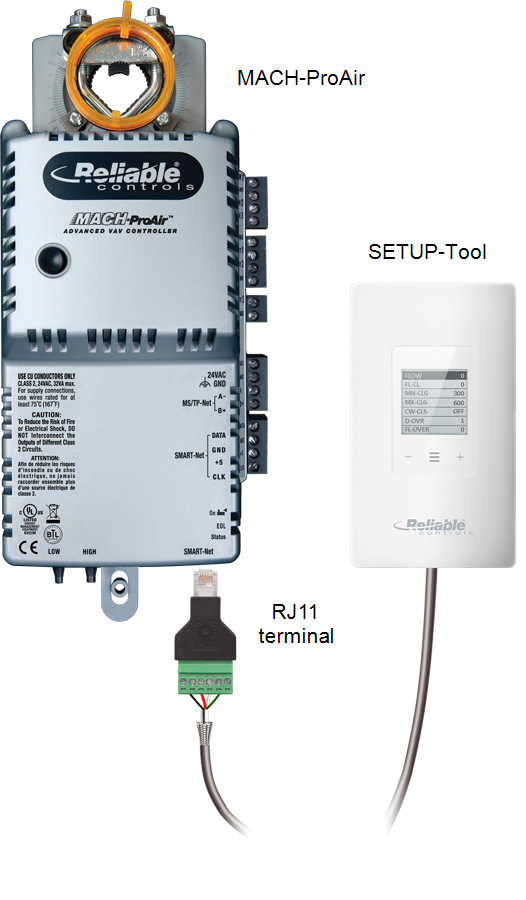

Application Diagram
