MACH-ProView Panel Mount Kit

Seamlessly integrate your MACH-ProView™ controller in an aesthetically pleasing, flush-mounted application with the MACH-ProView Panel Mount Kit. Constructed from durable cold-rolled steel and finished with a high-quality powder coat, the MACH-ProView Panel Mount Kit provides a simple way to install your touchscreen controller on the door of a control cabinet and affords a higher level of environmental protection than the MACH-ProView alone.

Purchase Products



Product features

Design

  • Seamlessly integrates with MACH-ProView controllers.
  • Durable and aesthetically pleasing faceplate.
  • Closed-cell foam gasket seal between the faceplate and the MACH-ProView display increases the environmental rating of the assembly.
  • Ideal for use with metal control cabinets.

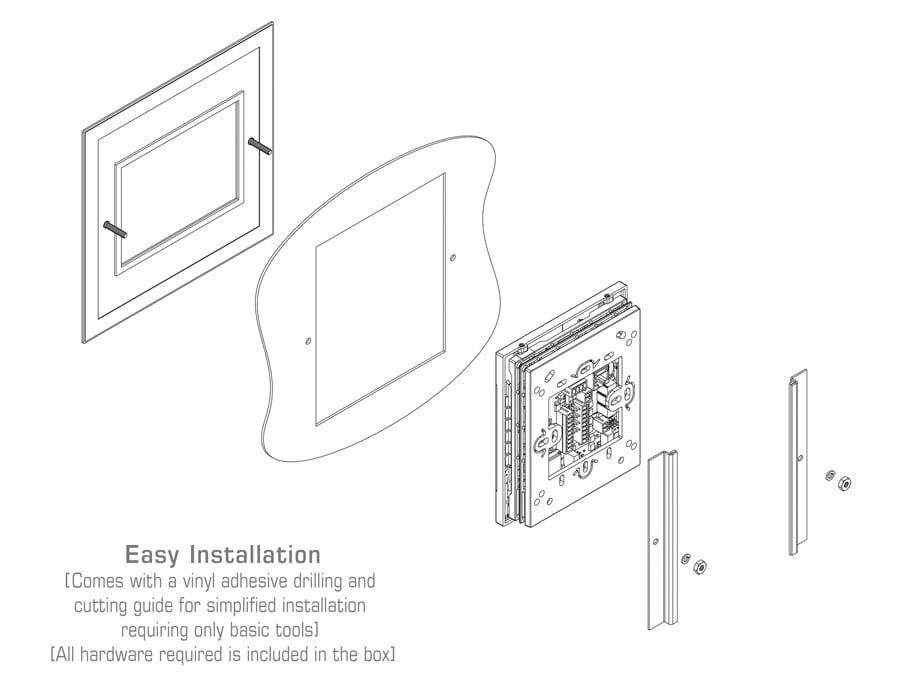

  • Includes a vinyl mounting template to protect against scratches and provide error-free installation.
  • Please note that the MACH-ProView Panel Mount Kit prevents onboard sensors from working correctly. In applications that require these sensors, please remotely mount your MACH-ProView.

Material

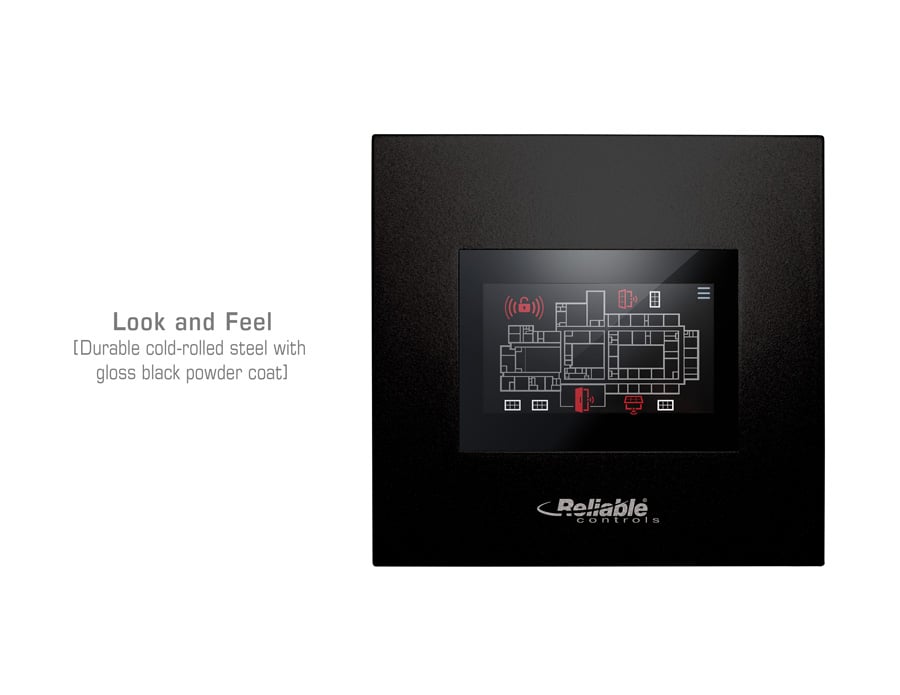

  • Cold-rolled carbon steel with black powder coat.
RoHS 2 Certified OpenADR Alliance BTL Listed Device

Technical specifications

Dimensions

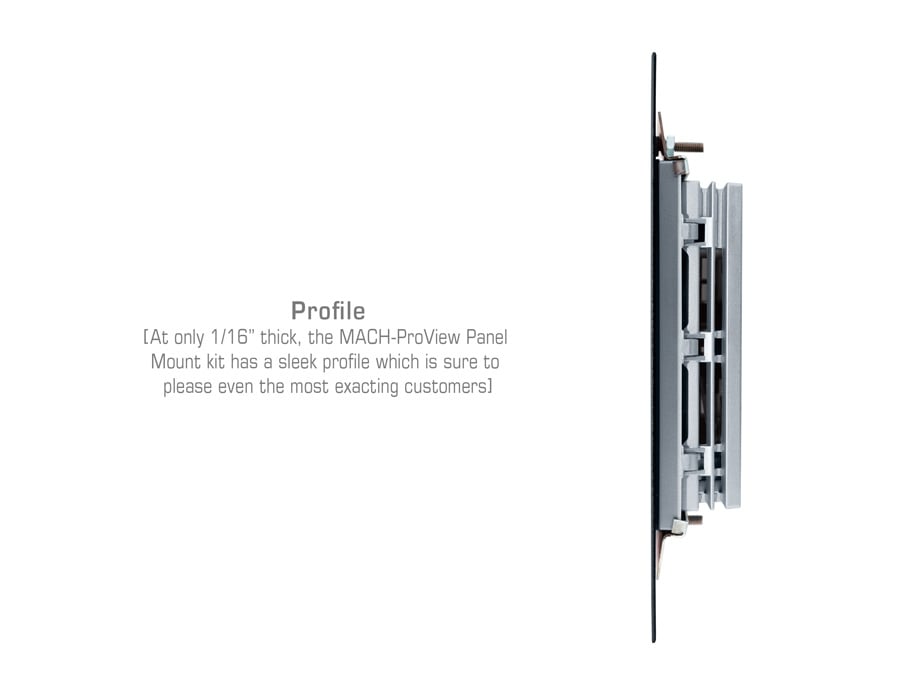

  • 18.7 cm L x 18.1 cm W x 0.2 cm H
    (7 3/8" L x 7 1/8" W x 1/16" H).

Hardware Mounting Included

  • Two 8-32 hex nuts.
  • Two #8 medium lock washers.

Weight

  • 0.36 kg (0.79 lb).
