SS3 Deep Backplate
Backplate Extender

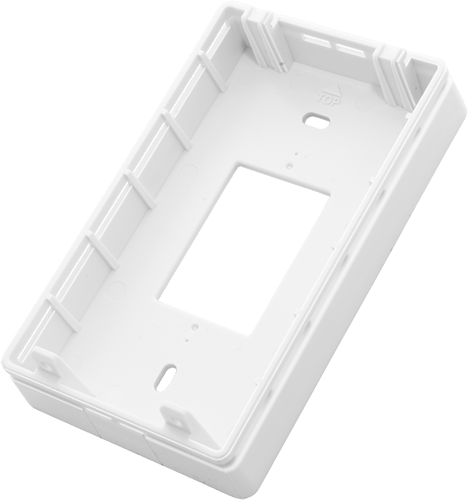

The SS3 Deep Backplate is an accessory for SMART-Sensor™ and SPACE-Sensor™ Temperature devices that facilitates surface mounting without the need to cut an opening in the wall. The SS3 Deep Backplate is ideal for gas-sensing models and for installations on concrete or other solid surfaces. Available in standard and square models, the SS3 Deep Backplate is designed to fit and cover single-device electrical boxes.

Purchase Products

Product features

Design

  • Matches SMART-Sensor (SS3) and SPACE-Sensor Temperature (SST3) devices.
  • Easily installed on concrete and other surfaces that do not permit you to drill or cut a hole.
  • Closed-cell foam gasket included to seal the wall opening.
  • Fits and covers single-device electrical boxes.
  • Facilitates protected surface mount wiring for gas-sensing SMART-Sensor and SPACE-Sensor Temperature devices.

Material

  • UL 94HB Flame class rating (3).
  • White or warm gray.

Accessories

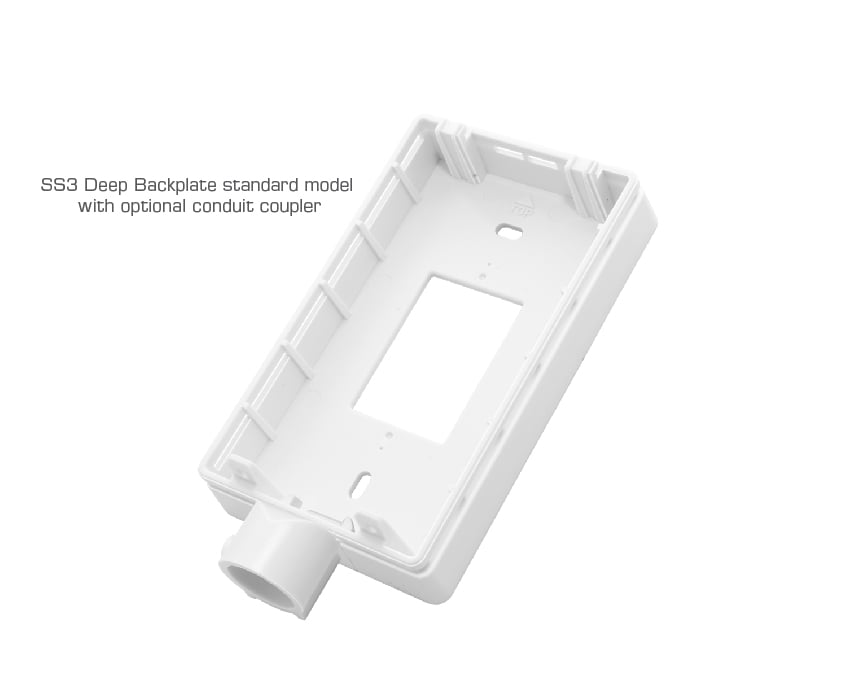

  • Optional conduit coupler.

Technical specifications

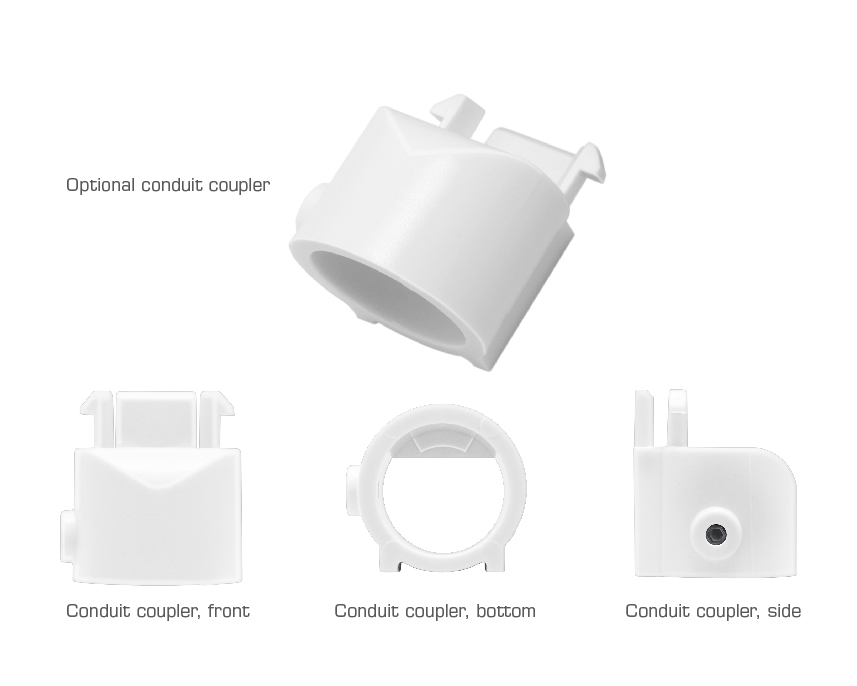

Optional Conduit Coupler

  • For wiring enclosed in 1/2" metal electrical tubing.

Dimensions

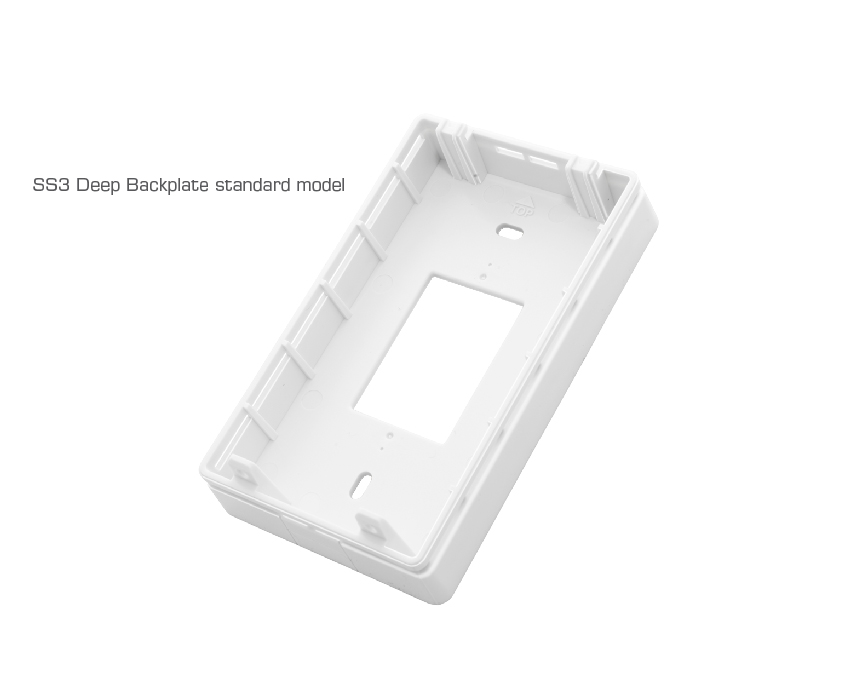

  • Deep backplate standard model:

    12.2 cm L x 7.2 cm W x 2.1 cm H

    (4 13/16" L x 2 13/16" W x 15/16" H).

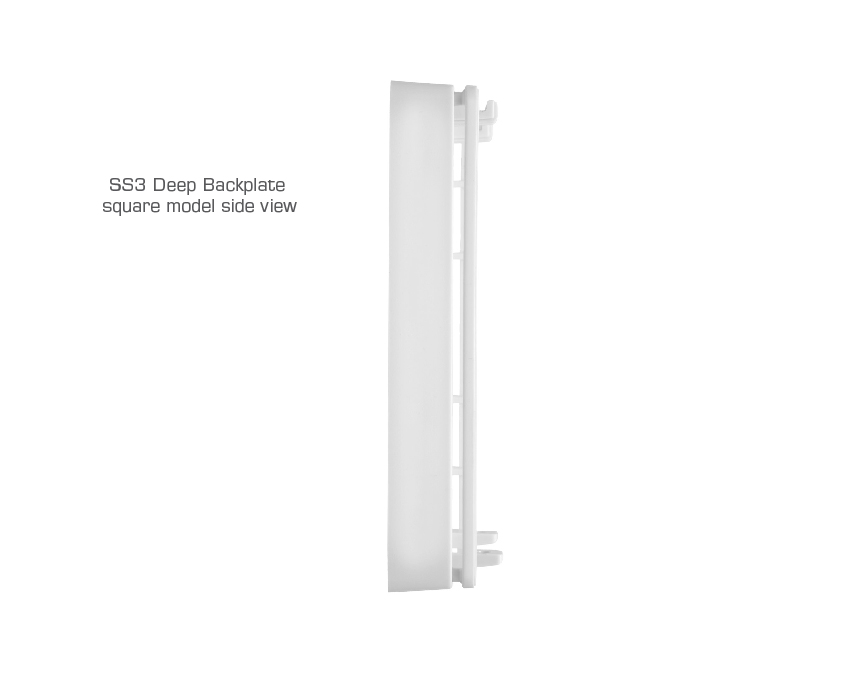

  • Deep backplate square model:

    9.4 cm L x 9.4 cm W x 2.1 cm H

    (3 11/16" L x 3 11/16" W x 15/16").

Weight

  • Deep backplate: 45 g (0.10 lb).

  • Conduit coupler: 5.2 g (0.01 lb).
