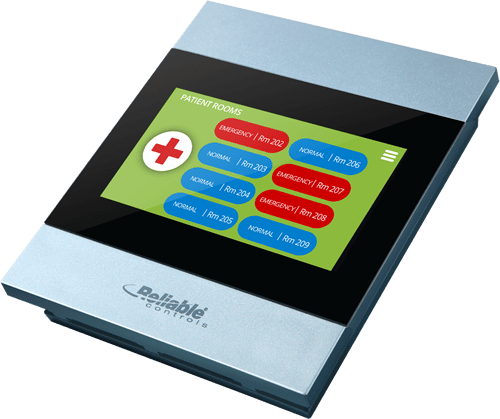

MACH-ProView LCD Operator Display with Router
BACnet® Controller

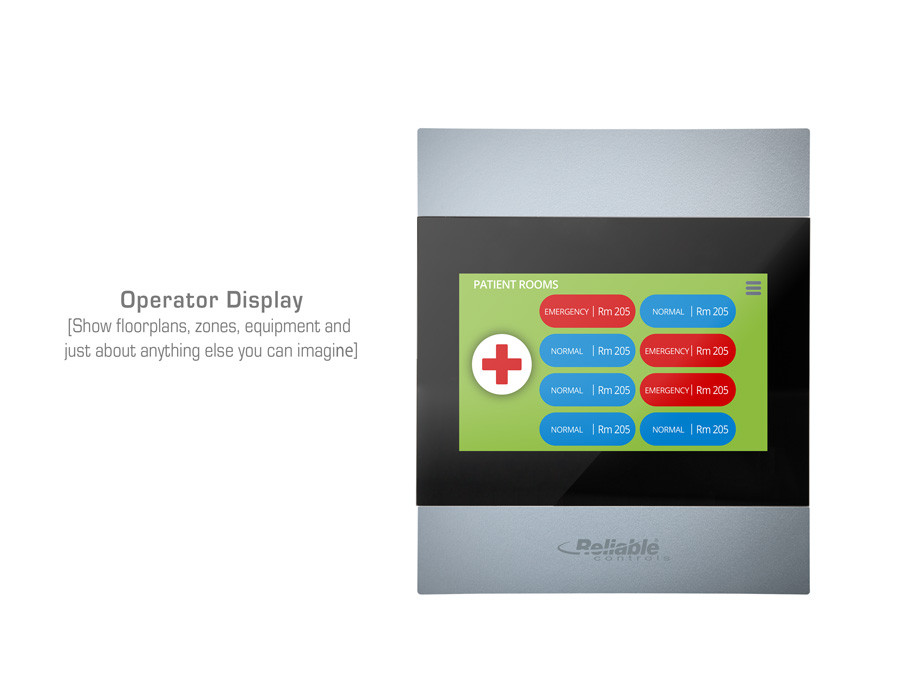

The Reliable Controls MACH‑ProView™ LCD Operator Display with Router is a powerful and elegant BACnet Building Controller (B‑BC) and BACnet Operator Display (B‑OD) that provides a plenitude of attractive high-resolution graphical interfaces to access and monitor the comfort and energy of any space while routing communications to multiple networks.

Purchase Products



Product features

Protocols

  • BACnet: B/IP, B/VPN, Ethernet, MS/TP, OpenADR, IDS.
  • DHCP: Dynamic Host Configuration Protocol.
  • Modbus: Supports both RTU and TCP communications in slave mode and master mode with up to 128 slave devices.
  • SMTP: Simple Mail Transfer Protocol:
    • Provides standard email communications for broadcasting email alarms.
    • Supports TLS/SSL security.
  • SNTP: Simple Network Time Protocol.

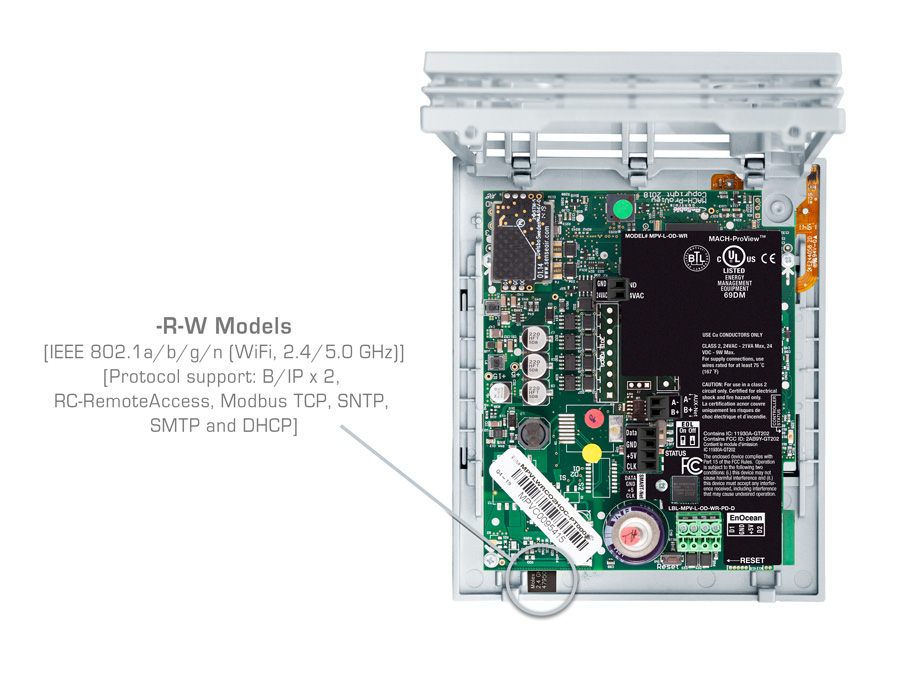

  • Wi-Fi on controllers with the -WR option:
    • Supports WPA-Personal and WPA2-Personal security.
  • SMART-Net.

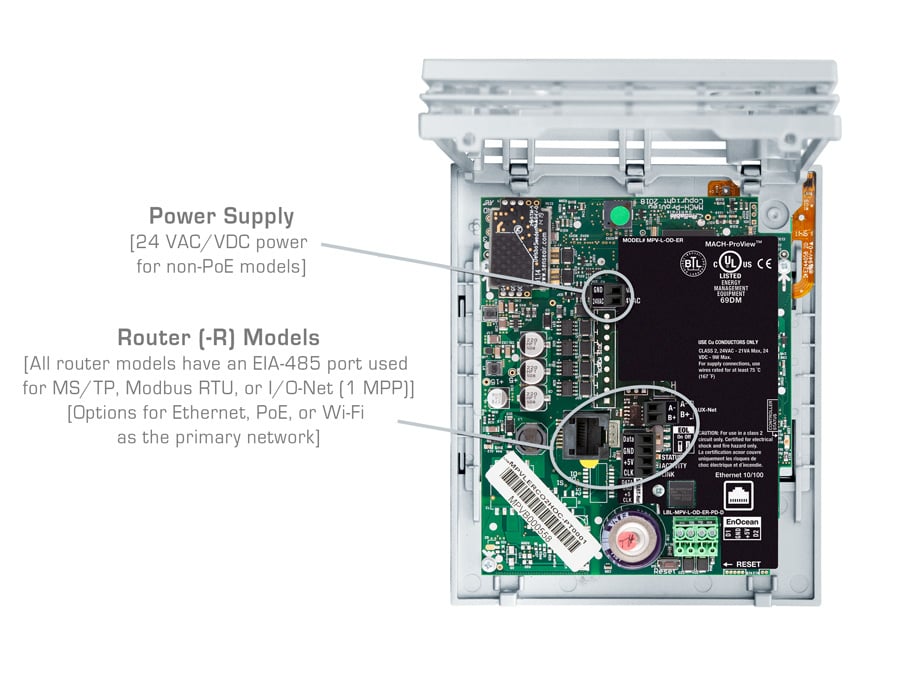

  • EIA-485 port. Software configurable to be one of the following:
    • BACnet MS/TP.
    • Modbus RTU slave or master.
    • I/O-Net supports one MACH-ProPoint.

Large Touchscreen Display

  • Display full-color graphics, runtime logs, trend logs, alarms, and schedules.
  • Configure display to be always on or to blank after 10-100 seconds of idle time.

Languages

  • English.
  • French.
  • German.
  • Italian.
  • Traditional Chinese.
  • Portuguese.
  • Spanish.

64 Views

  • Display and access related objects from the LCD.

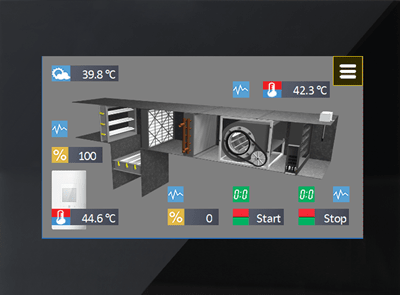

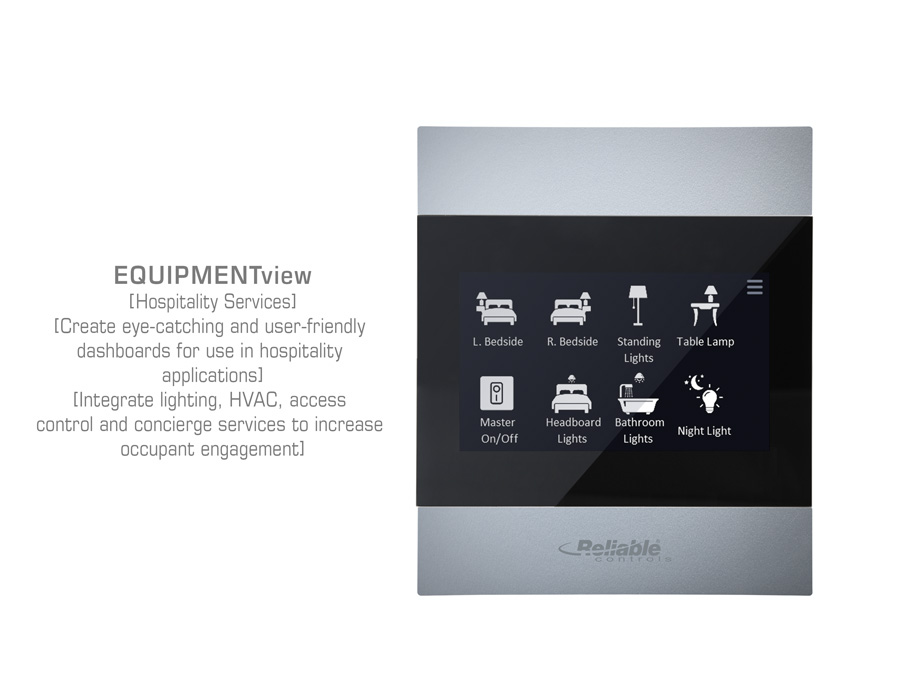

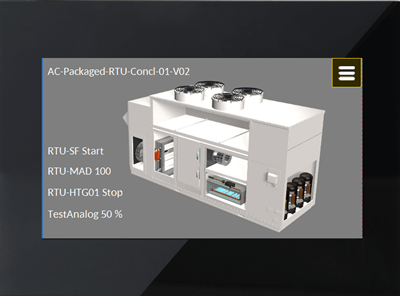

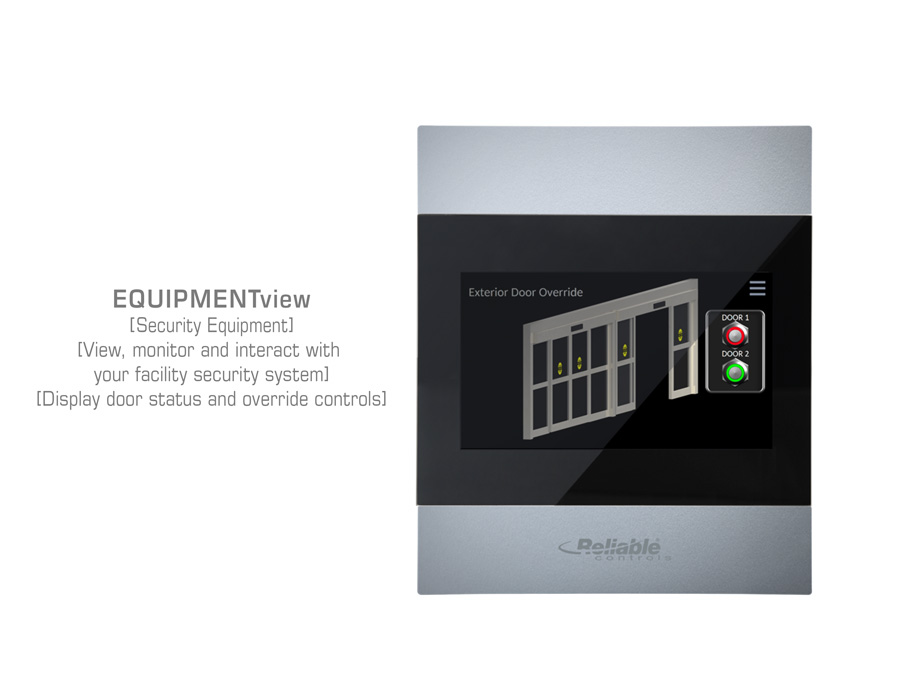

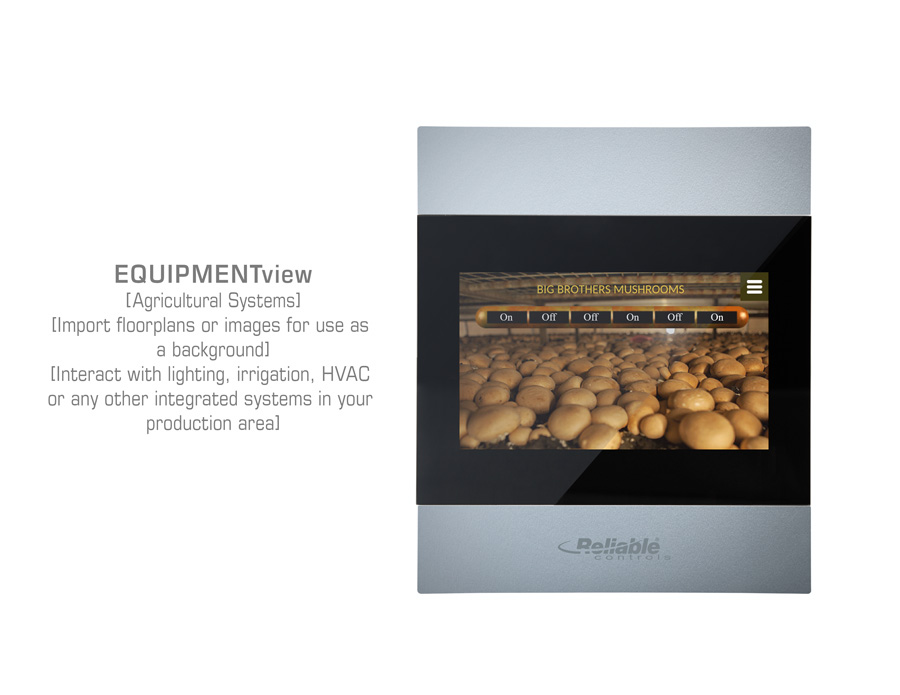

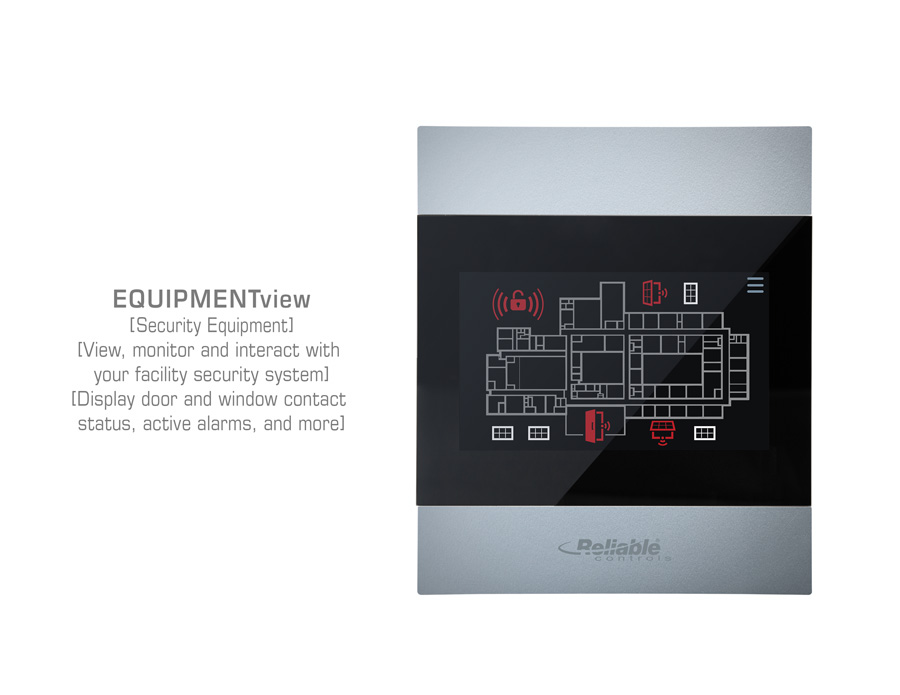

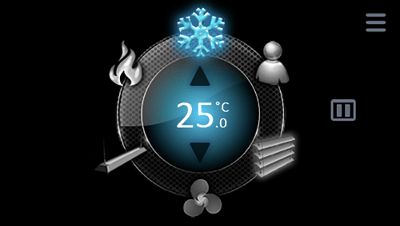

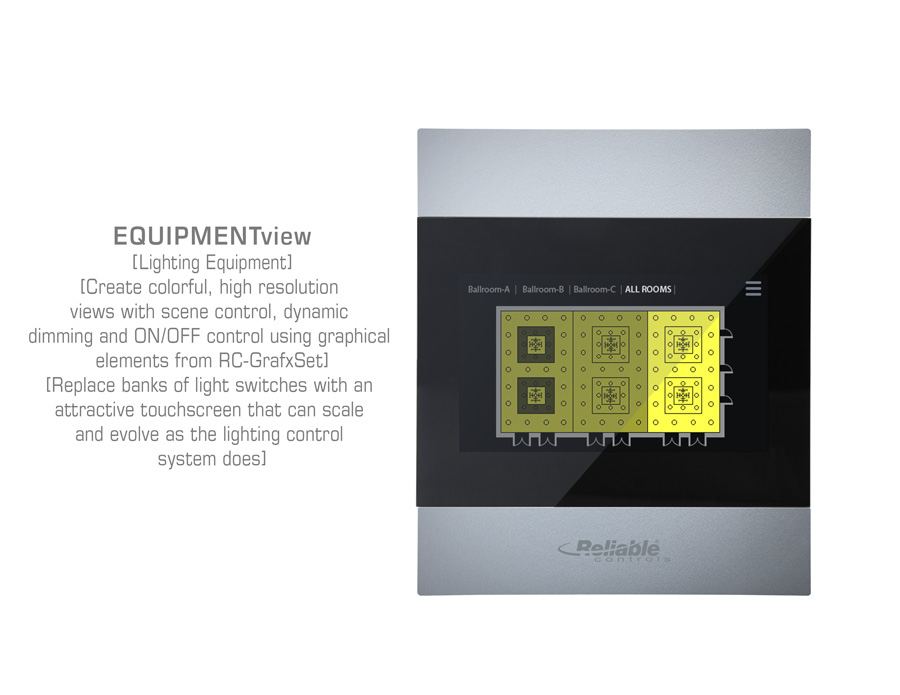

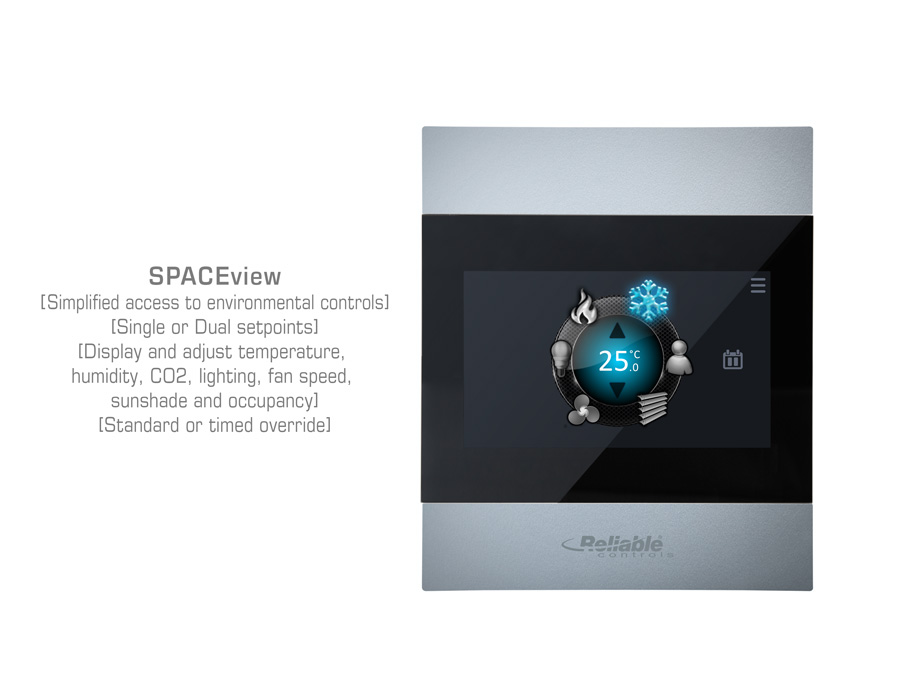

  • Customizable screens include EQUIPMENTview, SPACEview, LISTview, and STATview.
  • System Views include TRENDview, ALARMview, SCHEDULEview, RUNTIMEview, CONFIGURATIONview, and NAVIGATIONview.

Support for myControl App

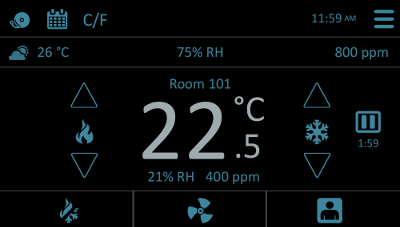

  • Display SPACEview, LISTview, and STATview using the myControl app.
  • The MACH-ProView allows 10 concurrent myControl app users.

64 System Groups

  • Allows related objects to be grouped onto one display.
  • 320 unique objects per group.

Inputs

  • Expand to up to 24 inputs using one MACH-ProPoint Input expansion module.

Outputs

  • Expand to up to 16 outputs using one MACH-ProPoint Output expansion module.

Optional Inputs

  • CO2 sensor.
  • Humidity sensor.
  • Occupancy sensor.
  • VOC sensor with humidity sensor.

1,024 Values

  • Select standard and custom ranges as well as fixed program-driven values.

128 Loops

  • Standard P, PI, or PID controllers for closed loop control.

128 Schedules

  • 14 on/off times for each weekday or exception.

64 Calendars

  • Designate days of the year as holidays.

Multipoint Trend Logs

  • Store up to eight objects in each trend log.
  • Record values at user-defined intervals.
  • Dynamic; user assigned.

Single-point Trend Logs

  • Record values at user-defined intervals or based on change of value.
  • Dynamic; user assigned.

Runtime Report

  • Total the on time and record the on/off times of every binary object.
  • Automatically generated.

129 Notification Classes

  • Specify alarm configuration, broadcast destination, and email recipients.

128 Programs

  • Freely programmable control strategy in a readable, BASIC-like language.
  • 3,200 bytes per program.

128 Arrays

  • Up to 128 elements in a one-dimensional array.

20 Tables

  • For creating custom scaling functions.

Onboard Temperature Sensor

  • Dedicated 10 kΩ thermistor.

SMART-Net Port

  • Network up to four SMART-Net devices.

128 User Passwords

  • Protect access to the system.
  • Assign each user with a username and access level.
  • Multiple levels of security.

24 Custom Units

  • Eight analog engineering units.
  • Eight binary units.
  • Eight multistate units with eight states, 30 characters each.

256 Net Ins

  • The maximum number of shares from other devices.

128 Net Outs

  • The maximum number of writes to other devices.

Real-Time Clock

Warranty

  • 5 years.

Certification

Protocols

  • BACnet: B/IP, B/VPN, Ethernet, MS/TP, OpenADR, IDS.
  • DHCP: Dynamic Host Configuration Protocol.
  • Modbus: Supports both RTU and TCP communications in slave mode and master mode with up to 128 slave devices.
  • SMTP: Simple Mail Transfer Protocol:
    • Provides standard email communications for broadcasting email alarms.
    • Supports TLS/SSL security.
  • SNTP: Simple Network Time Protocol.
  • Wi-Fi on controllers with the -WR option:
    • Supports WPA-Personal and WPA2-Personal security.
  • SMART-Net.
  • EIA-485 port. Software configurable to be one of the following:
    • BACnet MS/TP.
    • Modbus RTU slave or master.
    • I/O-Net supports one MACH-ProPoint.

Large Touchscreen Display

  • Display full-color graphics, runtime logs, trend logs, alarms, and schedules.
  • Configure display to be always on or to blank after 10-100 seconds of idle time.

Languages

  • English.
  • French.
  • German.
  • Italian.
  • Traditional Chinese.
  • Portuguese.
  • Spanish.

64 Views

  • Display and access related objects from the LCD.
  • Customizable screens include EQUIPMENTview, SPACEview, LISTview, and STATview.
  • System Views include TRENDview, ALARMview, SCHEDULEview, RUNTIMEview, CONFIGURATIONview, and NAVIGATIONview.

Support for myControl App

  • Display SPACEview, LISTview, and STATview using the myControl app.
  • The MACH-ProView allows 10 concurrent myControl app users.

64 System Groups

  • Allows related objects to be grouped onto one display.
  • 320 unique objects per group.

Inputs

  • Expand to up to 24 inputs using one MACH-ProPoint Input expansion module.

Outputs

  • Expand to up to 16 outputs using one MACH-ProPoint Output expansion module.

Optional Inputs

  • CO2 sensor.
  • Humidity sensor.
  • Occupancy sensor.
  • VOC sensor with humidity sensor.

1,024 Values

  • Select standard and custom ranges as well as fixed program-driven values.

128 Loops

  • Standard P, PI, or PID controllers for closed loop control.

128 Schedules

  • 14 on/off times for each weekday or exception.

64 Calendars

  • Designate days of the year as holidays.

Multipoint Trend Logs

  • Store up to eight objects in each trend log.
  • Record values at user-defined intervals.
  • Dynamically assigned.

Single-point Trend Logs

  • Record values at user-defined intervals or based on change of value.
  • Dynamically assigned.

Runtime Report

  • Total the on time and record the on/off times of every binary object.
  • Dynamically assigned.

129 Notification Classes

  • Specify alarm configuration, broadcast destination, and email recipients.

128 Programs

  • Freely programmable control strategy in a readable, BASIC-like language.
  • 3,200 bytes per program.

128 Arrays

  • Up to 128 elements in a one-dimensional array.

20 Tables

  • For creating custom scaling functions.

SMART-Net Port

  • Network up to four SMART-Net devices.

128 User Passwords

  • Protect access to the system.
  • Assign each user with a username and access level.
  • Multiple levels of security.

24 Custom Units

  • Eight analog engineering units.
  • Eight binary units.
  • Eight multistate units with eight states, 30 characters each.

256 Net Ins

  • The maximum number of shares from other devices.

128 Net Outs

  • The maximum number of writes to other devices.

Real-Time Clock

Warranty

  • 5 years.

Certification

RoHS 2 Certified OpenADR Alliance BTL Listed Device

Technical specifications

Processor

  • 147 MHz high-performance 32-bit embedded microcontroller.

Memory

  • 8 MB operating RAM.
  • 1 MB nonvolatile RAM for trends and dynamic values.
  • 32 MB Flash EEPROM operating system, database, and controller configuration.

Supply Voltages

  • 24 VAC ±10% 93 VA maximum, 50/60 Hz.
  • 24 VDC ±10% 9 W maximum.

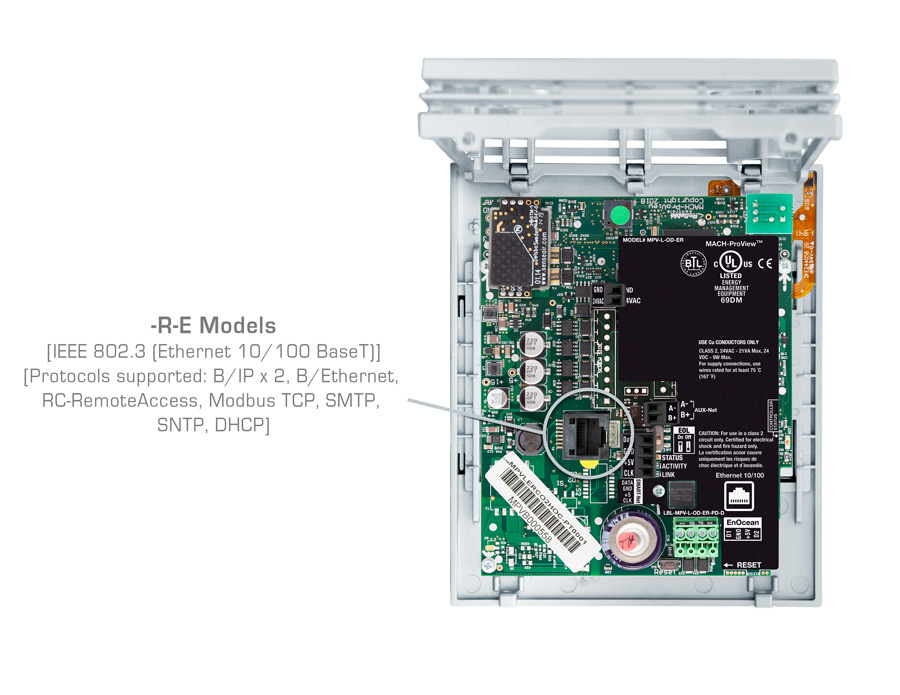

Communication Options

  • One IEEE 802.3 (Ethernet 10/100 BaseT).
  • One IEEE 802.3af (PoE).
  • One IEEE 802.11 a/b/g/n (Wi-Fi, 2.4/5.0 GHz).
  • One EIA-485 (RS-485) port that supports a baud rate up to 76.8 kbps.
  • One SMART-Net port that supports up to four devices on a SMART-Net network.

Display

  • Full-color 480 x 272 pixel screen.
  • 4.3" wide-quarter VGA.
  • Thin film transistor.
  • Projective capacitive touch.
  • Display area 57 x 96 mm (2 1/4" x 3 3/4").

Expansion Module

  • Add one MACH-ProPoint expansion module.

Temperature Sensor

  • Range -20°C to 55°C.
  • 0.1°C (0.18°F) resolution.
  • User calibrated to ±0.1°C (0.18°F) accuracy.

CO2 Sensor (-CO2 Option)

  • Nondispersive infrared optical sensor.
  • 400-2,000 ppm range.
  • Accuracy ±40 ppm.
  • Automatic calibration built in.
  • Nonlinearity <1% of full scale.

VOC Sensor (-V Option)

  • Automatic background calibration.
  • Heated metal oxide sensor.
  • 0-8,190 ppb range.
  • Accuracy 40% of measured value.
  • Resolution:
    • 2 ppb (0 to 2,008 ppb).
    • 6 ppb (2009+ ppb).
  • Automatically includes humidity sensor (-H option).

Humidity Sensor (-H Option)

  • 0.1% display resolution.
  • 0%-100% range.

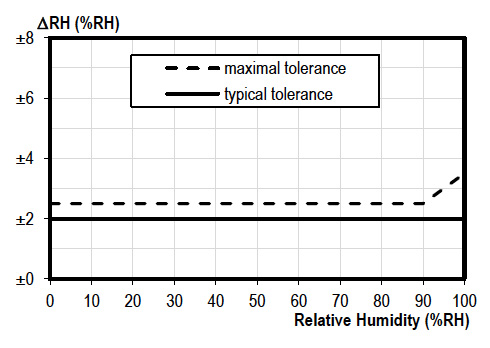

  • Accuracy ±2.4% maximum from 0%–90%. See plot.

Occupancy Sensor (-OC Option)

  • Passive infrared radiation sensor.
  • 64 detection zones.
  • 94° horizontal range/82° vertical range.
  • 5 m (16.4 ft) maximum detection distance.

Real-Time Clock

  • ±1 second per day.

Memory/RTC Backup

  • 72-hour backup.
  • 10 years for database.

Wiring Terminals

  • 16–24 AWG (1.31–0.21 mm2).
  • Stranded or solid core.
  • Copper conductors only.

Dimensions

  • 14.5 cm L x 12.2 cm W x 2.7 cm H
    (5 11/16" L x 4 13/16" W x 1 1/16" H).
  • Compatible with single-gang, dual-gang,
    4" x 4", and 4 11/16" square boxes.
  • Minimum opening in wall 46 x 72 mm
    (1 13/16" x 2 13/16").

Hardware Mounting Included

  • Two 6-32 1" Truss head Phillips mounting screws for single-gang and dual-gang boxes.

Weight

  • 0.28 kg (0.6 lb).

Ambient Limits

  • Operating: -20°C to 55°C (-4°F to 131°F).
  • Shipping: -40°C to 60°C (-40°F to 140°F).
  • Humidity: 10%–90%.

Processor

  • 147 MHz high-performance 32-bit embedded microcontroller.

Memory

  • 8 MB operating RAM.
  • 1 MB nonvolatile RAM for trends and dynamic values.
  • 32 MB Flash EEPROM operating system, database, and controller configuration.

Supply Voltages

  • 24 VAC ±10% 93 VA maximum, 50/60 Hz.
  • 24 VDC ±10% 9 W maximum.

Communication Options

  • One IEEE 802.3 (Ethernet 10/100 BaseT).
  • One IEEE 802.3af (PoE).
  • One IEEE 802.11 a/b/g/n (Wi-Fi, 2.4/5.0 GHz).
  • One EIA-485 (RS-485) port that supports a baud rate up to 76.8 kbps.
  • One SMART-Net port that supports up to four devices on a SMART-Net network.

Display

  • Full-color 480 x 272 pixel screen.
  • 4.3" wide-quarter VGA.
  • Thin film transistor.
  • Projective capacitive touch.
  • Display area 57 x 96 mm (2 1/4" x 3 3/4").

Expansion Module

  • Add one MACH-ProPoint expansion module.

Temperature Sensor

  • Range -20°C to 55°C.
  • 0.1°C (0.18°F) resolution.
  • User calibrated to ±0.1°C (0.18°F) accuracy.

CO2 Sensor (-CO2 Option)

  • Nondispersive infrared optical sensor.
  • 400-2,000 ppm range.
  • Accuracy ±40 ppm.
  • Automatic calibration built in.
  • Nonlinearity <1% of full scale.

VOC Sensor (-V Option)

  • Automatic background calibration.
  • Heated metal oxide sensor.
  • 0-8,190 ppb range.
  • Accuracy 40% of measured value.
  • Resolution:
    • 2 ppb (0 to 2,008 ppb).
    • 6 ppb (2009+ ppb).
  • Automatically includes humidity sensor (-H option).

Humidity Sensor (-H Option)

  • 0.1% display resolution.
  • 0%-100% range.
  • Accuracy ±2.4% maximum from 0%–90%. See plot.

Occupancy Sensor (-OC Option)

  • Passive infrared radiation sensor.
  • 64 detection zones.
  • 94° horizontal range/82° vertical range.
  • 5 m (16.4 ft) maximum detection distance.

Real-Time Clock

  • ±1 second per day.

Memory/RTC Backup

  • 72-hour backup.
  • 10 years for database.

Wiring Terminals

  • 16–24 AWG (1.31–0.21 mm2).
  • Stranded or solid core.
  • Copper conductors only.

Dimensions

  • 14.5 cm L x 12.2 cm W x 2.7 cm H
    (5 11/16" L x 4 13/16" W x 1 1/16" H).
  • Compatible with single-gang, dual-gang,
    4" x 4", and 4 11/16" square boxes.
  • Minimum opening in wall 46 x 72 mm
    (1 13/16" x 2 13/16").

Hardware Mounting Included

  • Two 6-32 1" Truss head Phillips mounting screws for single-gang and dual-gang boxes.

Weight

  • 0.28 kg (0.6 lb).

Ambient Limits

  • Operating: -20°C to 55°C (-4°F to 131°F).
  • Shipping: -40°C to 60°C (-40°F to 140°F).
  • Humidity: 10%–90%.

Diagrams

Wi–Fi network

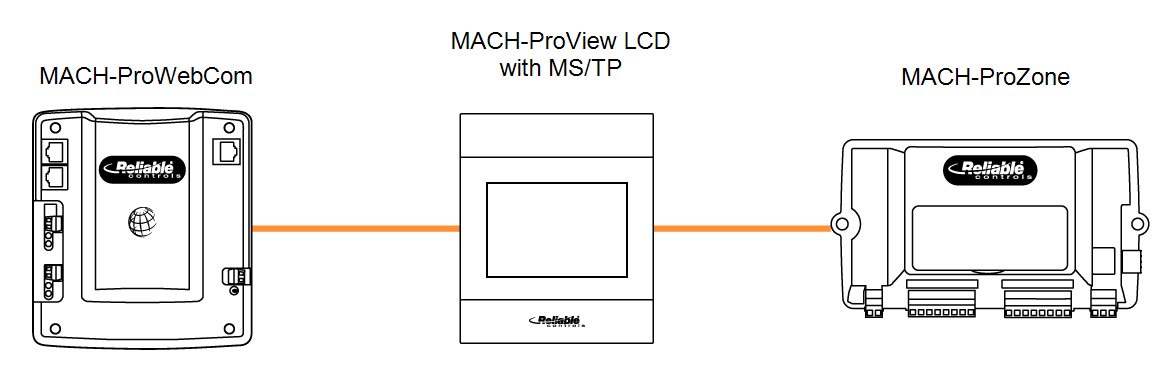

MSTP network

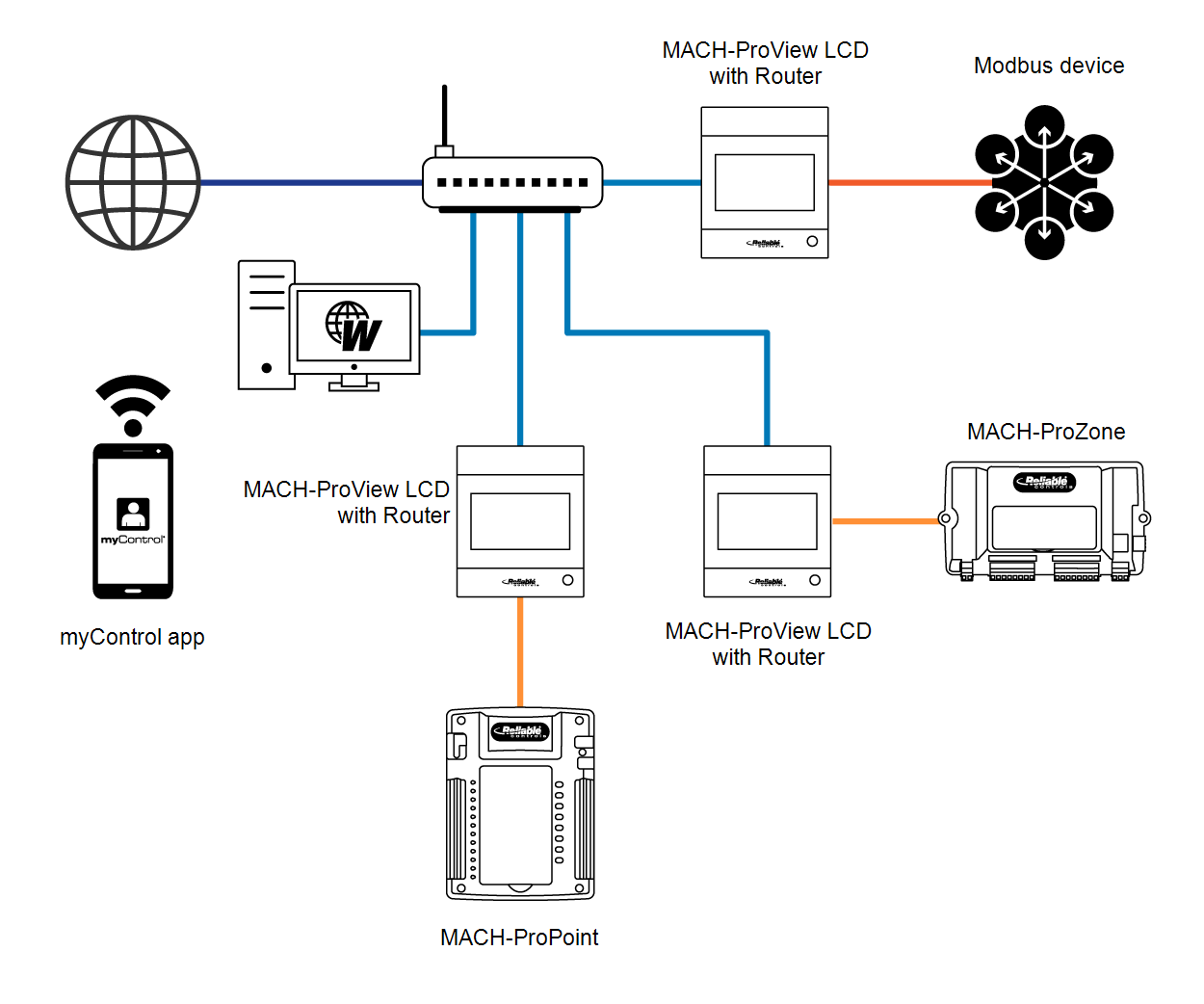

Ethernet or PoE network


Humidity sensor chart


Interface Views

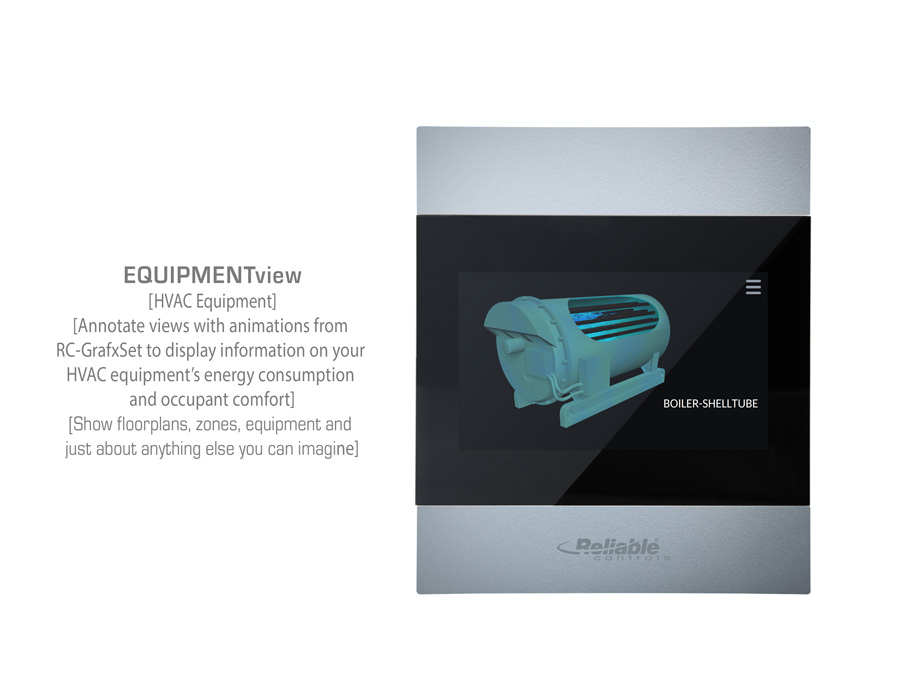

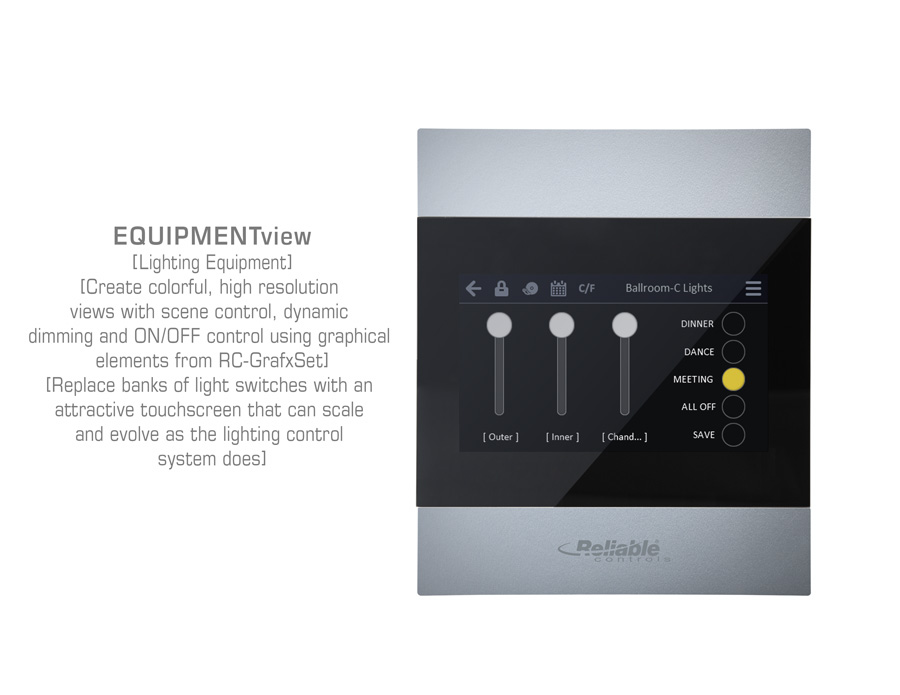

EQUIPMENTview

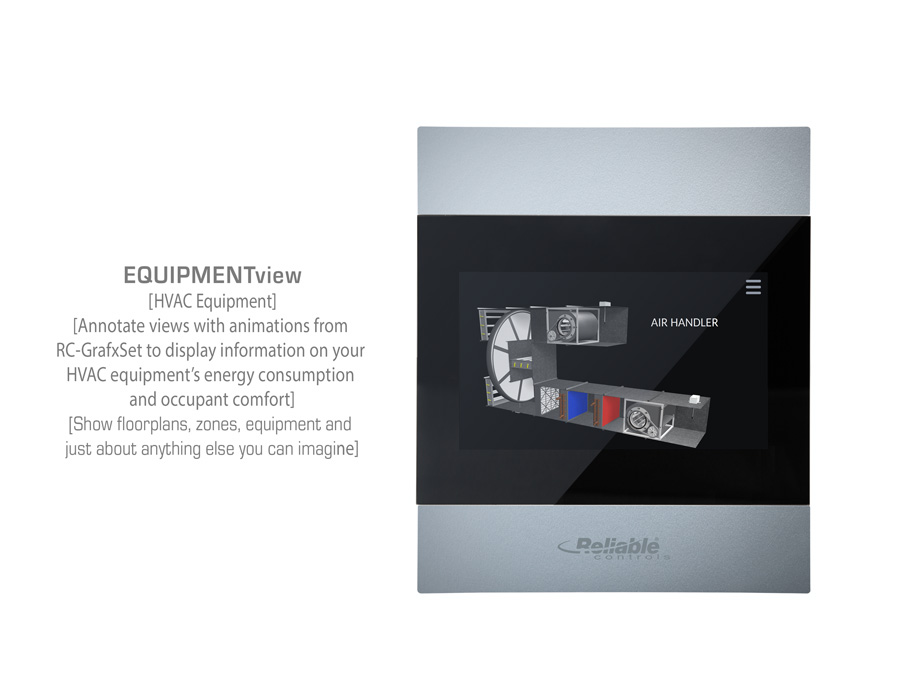

EQUIPMENTview

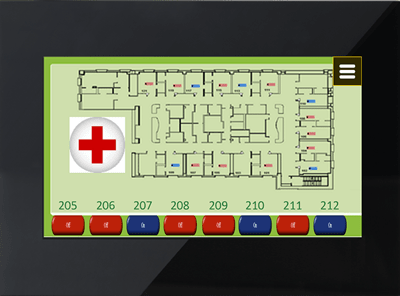

EQUIPMENTview
SPACEview

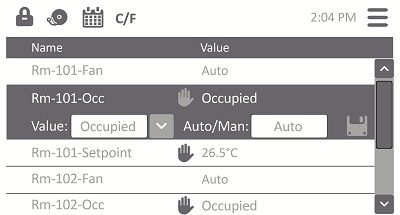

LISTview
STATview

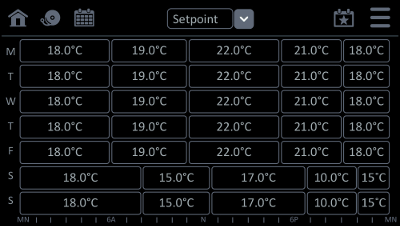

SCHEDULEview

Brochures

Control Solutions for Portables
