The Philip J. Currie Dinosaur Museum is a world-class facility in the heart of Peace Country and honors Canada’s leading palaeontologist, Philip J. Currie. The project has attracted the attention of multiple celebrities, including Dan Aykroyd, Matthew Gray Gubler, Robert F. Kennedy Jr., and mystery writer Patricia Cornwell.

Reliable Controls Authorized Dealer, Serv-All Mechanical Services Ltd., completed this new construction project in 2015. The Philip J. Currie Dinosaur Museum rests on the ancient Pipestone Creek, the world’s richest dinosaur bone bed, near Grande Prairie, Alberta, Canada.

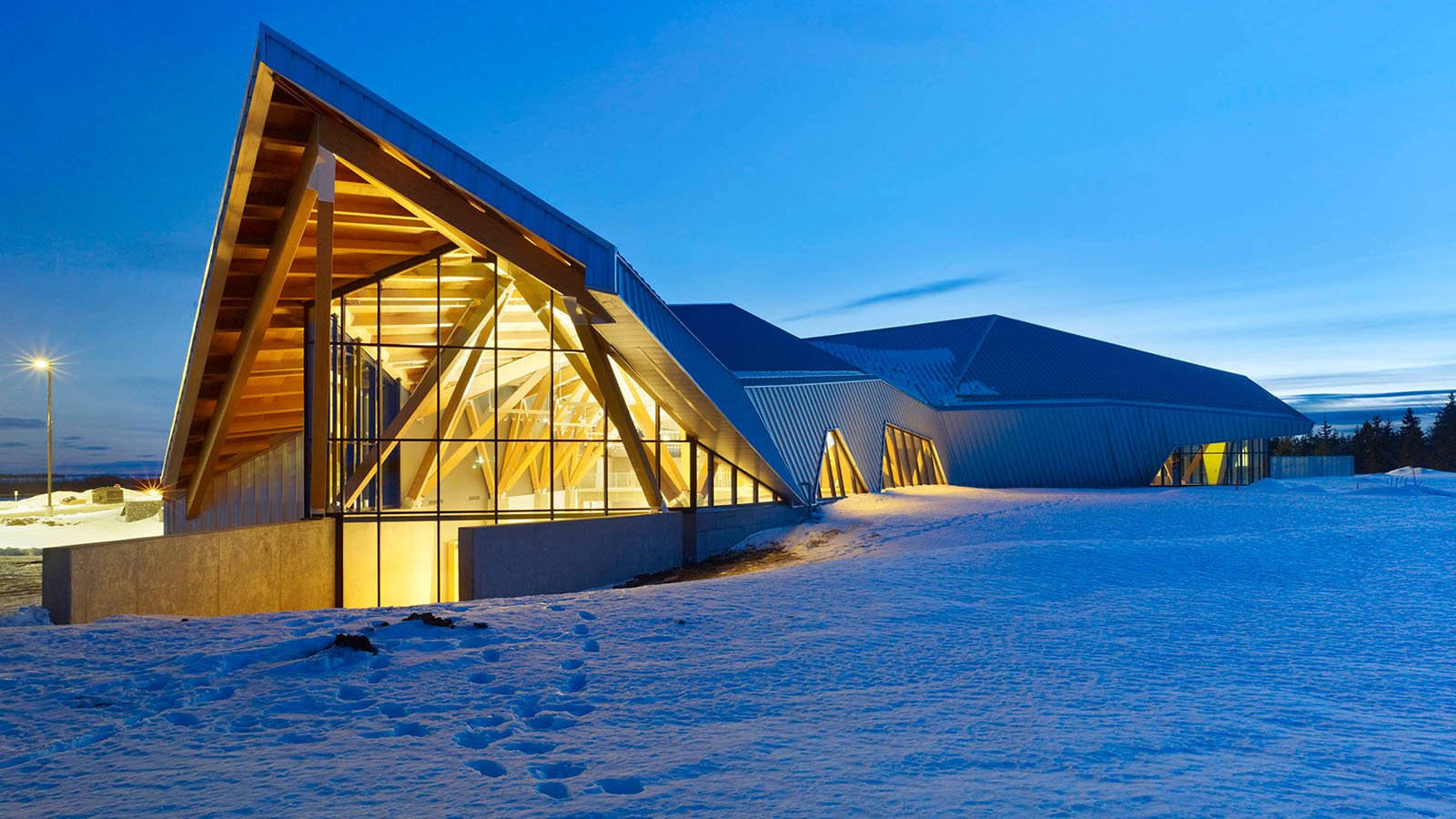

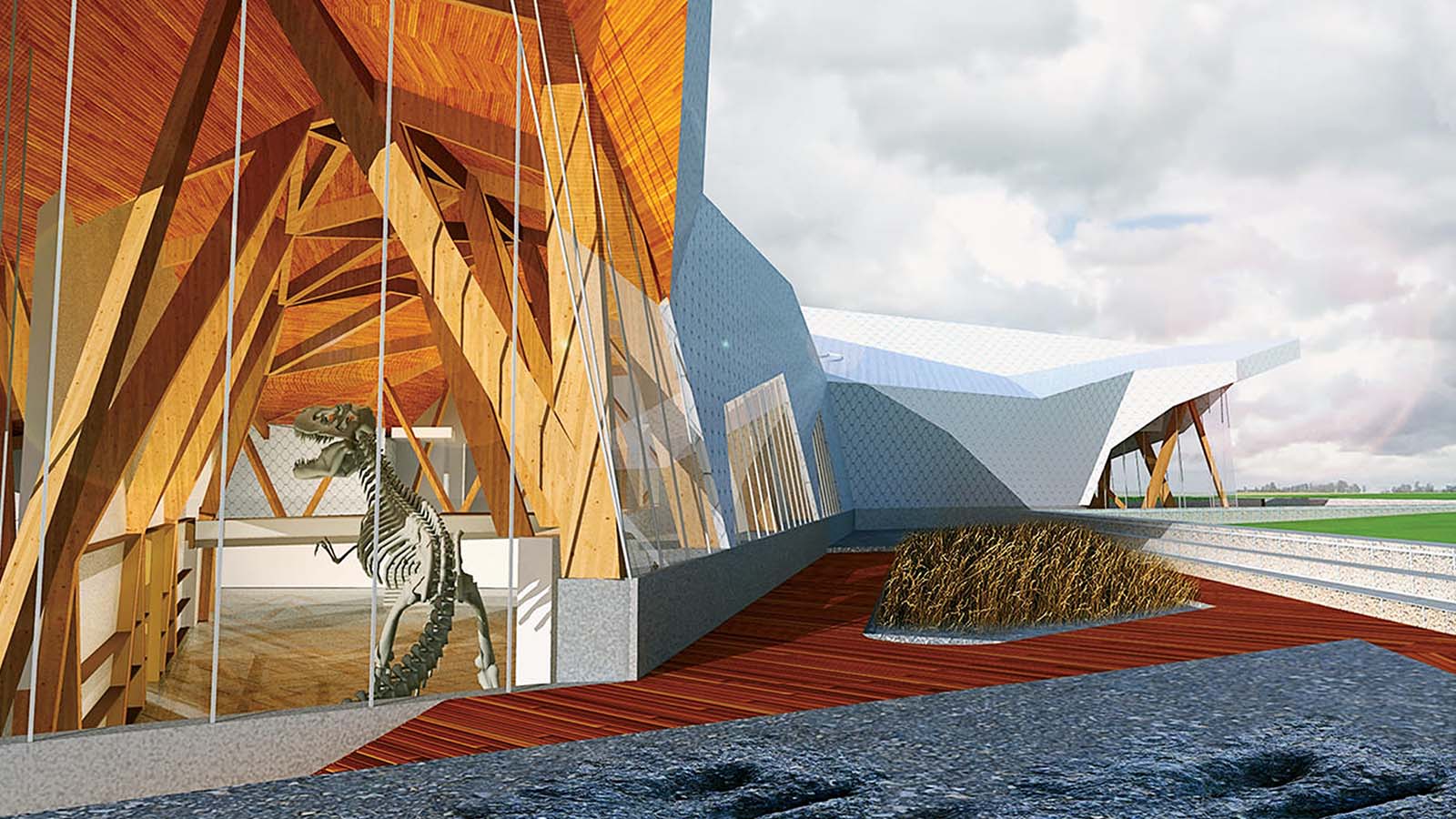

Designed as a metaphorical reference to the dinosaur bones that reside within, the museum features a geometrically complex roof supported by exposed timber beams. With a total area of 2,713 m2 (29,200 ft2), the museum’s mechanical equipment includes a boiler, chiller, HVAC, and VAV. The networked  MACH-System hardware consists of one MACH-ProWebSys controller, one MACH-ProSys controller, 26 MACH-ProAir controllers, and one MACH-ProZone controller. The network topologies are EIA-485 and Ethernet, and the protocol integration is BACnet. There are 344 system points and the project is LEED® Silver certified. Strict air quality, temperature, and humidity control were achieved with the Reliable Controls MACH-System.

Serv-All Mechanical Services Ltd. has had an office in Edmonton, Alberta since 1978. The company opened additional offices in Grande Prairie in 2007 and Calgary in 2016, recognizing the needs of their customers all across the province. The company provides HVAC installation, maintenance,  and service, as well as building automation system expertise.

Authorized Dealer

Market Segment

Museum

Project Type

New construction

Project Date

Jan 2017

Installation Type

HVAC

Total Area

2.713 m2 (29,200 ft2)

Network

EIA-485, Ethernet

Protocol

BACnet

Total System Objects

344

LEED Certification

Silver

Hardware
MACH-ProAir™26 MACH-ProAir™
MACH-ProSys™1 MACH-ProSys™
MACH-ProWebSys™1 MACH-ProWebSys™
MACH-ProZone™1 MACH-ProZone™
