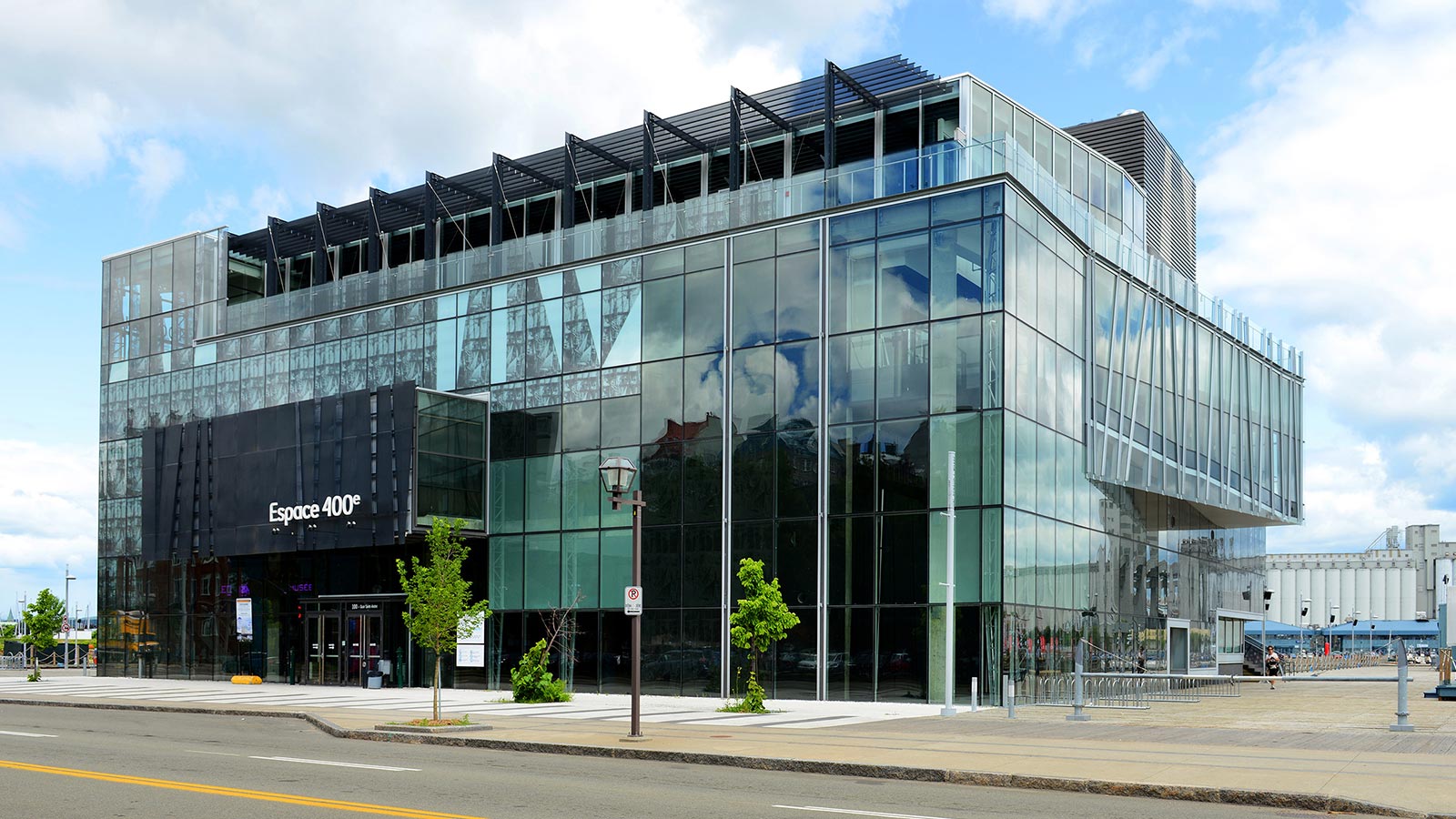

Originally a cement factory, Espace 400e opened in summer 2008 as the central location for Quebec’s 400th-anniversary celebrations in the city’s Vieux-Québec—Old Port district. Today the building is used by Festival d’été international de Quebec as a temporary exhibition center.

Authorized Dealer Contrôles AC installed a Reliable Controls building automation system in the Espace 400e facility during a retrofit/new construction project.

The cement factory was converted to an event space in 1984. A recent renovation project included a sustainability upgrade, with passive heating and cooling using cross ventilation and large rooftop overhangs, energy-efficient water tanks for radiant floor heating, and double glass.

Contrôles AC installed one MACH-Global controller to control the two main rooftop air-handling units and another for geothermal heat pump equipment. MACH-Zone controllers were implemented to control lighting, fan coils, and radiant floor heating and were interfaced with the geothermal and radiant floor heating systems. Contrôles AC also installed a MACH1, a rugged, flexible, fully programmable BACnet Building Controllers ideal for midsize rooftop equipment and small mechanical room applications.

Authorized Dealer

Market Segment

Recreational

Project Date

Aug 2015

Installation Type

HVAC, Lighting

Total Area

5,700 m2 (61,333 ft2)

Protocol

BACnet

Total System Objects

300

Hardware
MACH-Global (Legacy)2 MACH-Global (Legacy)

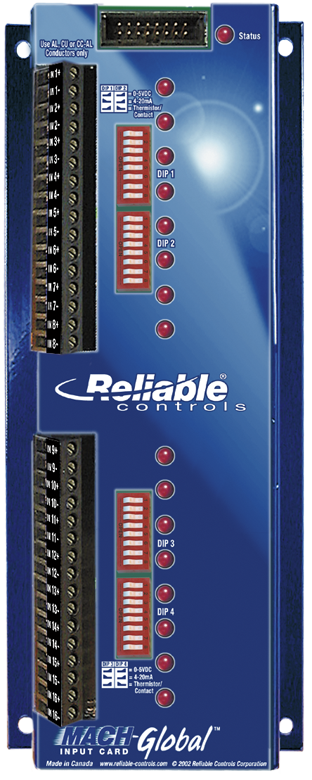

MACH-Global Input Card (Legacy)7 MACH-Global Input Card (Legacy)

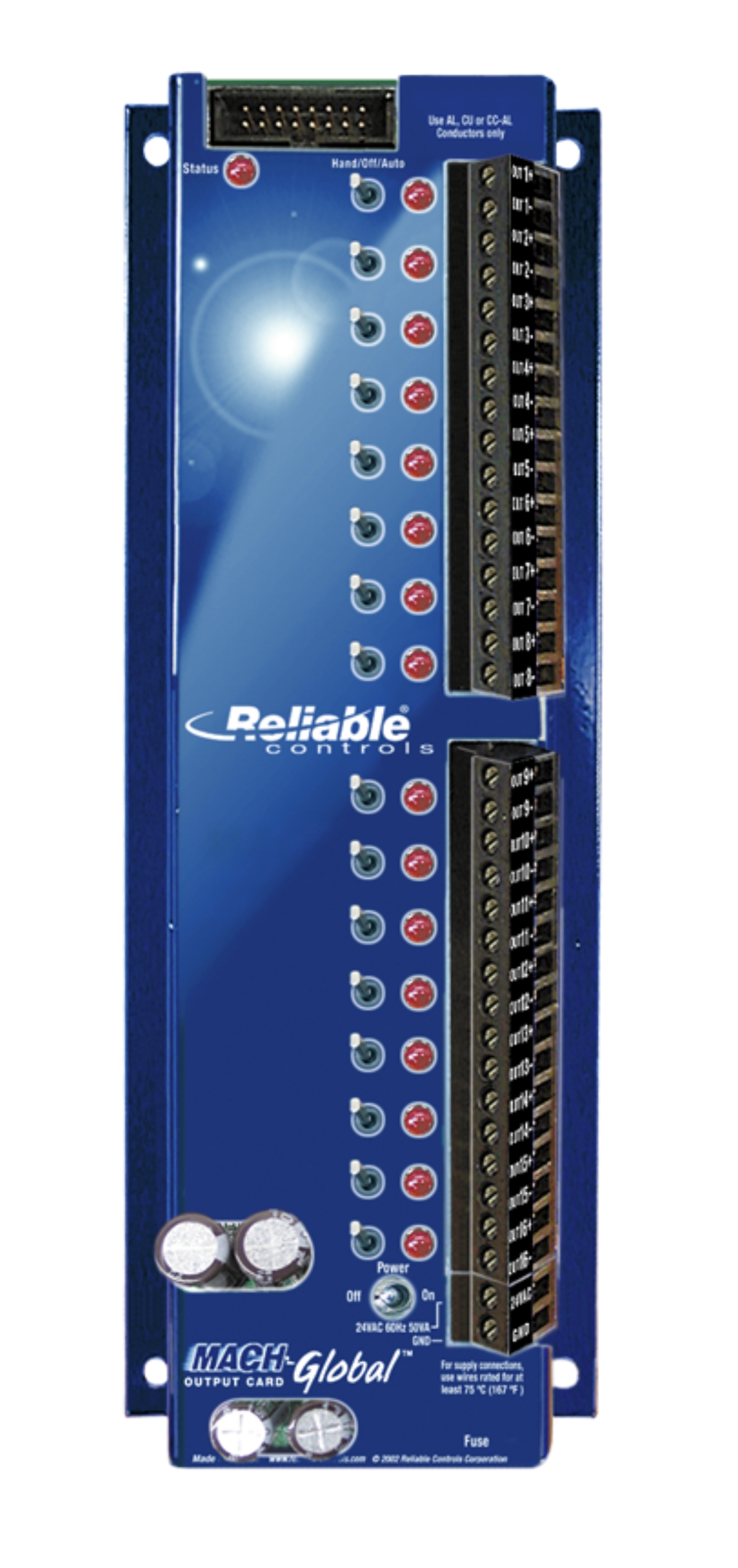

MACH-Global Output Card (Legacy)4 MACH-Global Output Card (Legacy)
MACH-Zone (Legacy)27 MACH-Zone (Legacy)
MACH1™ (Legacy)1 MACH1™ (Legacy)
